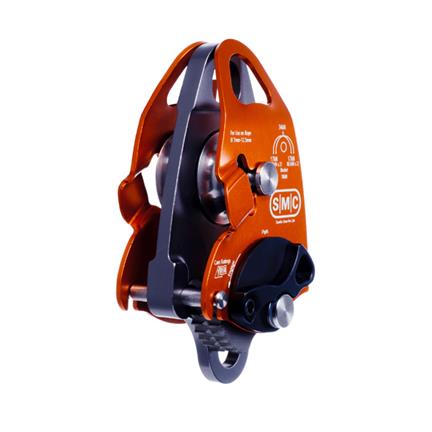

SMC Advance Tech Hx Pulley

$177.50

The new Advance Tech HX is ideal for all rescue applications where a small mechanical advantage system is being used. The HX is a double pulley with an integrated cam that provides immediate progress capture.

Part Number: SM154900N
SKU: SM154900N Categories: , , , , , , , Brand:

Description

Key features:

  • Made from high quality aluminum
  • Anodized to help prevent corrosion
  • Supports rope diameters from 7 mm up to 12.5 mm
  • Stainless steel pins retain the rope when a rigged system is pre-packed
Weight 0.61 lbs
Color Orange/Grey
Height 1.97” (5.0 cm)
Width 2.74” (6.9 cm)
Length 5.08” (12.9 cm)
Weight 9.5 oz (270 g)
MBS 34 kN (7644 lbf)
Tread 1.00”
Sheave 1.37” Aluminum
Becket Strength 18 kN
Compliant BERRY COMPLIANT, NFPA 1983 (2017), T



Additional information

Weight 0.61 lbs
Color

Orange/Grey
Becket Strength

Compliant

Height

MBS

Sheave

Tread

Weight

Width

Availability

Source

PMI
Brand

SMC
