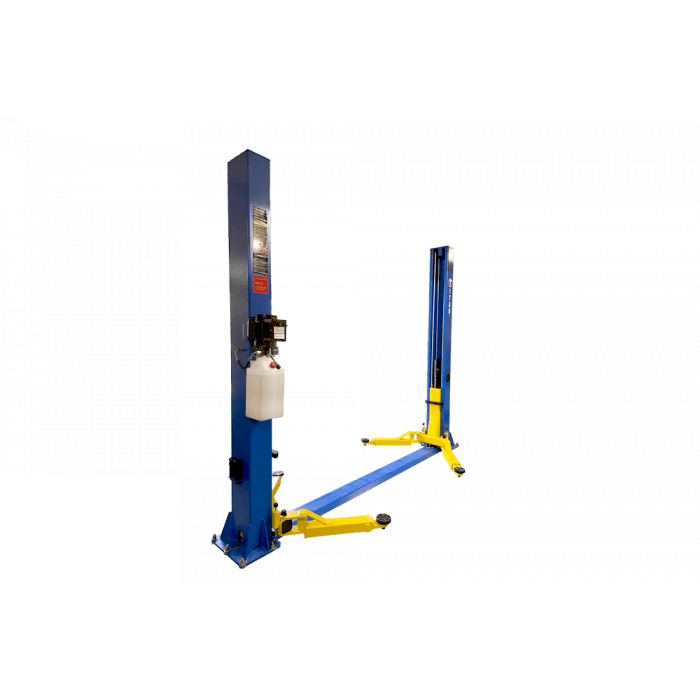

Titan HD2P-9000AF 2-Post Lift

$3,723.05

The Titan 9,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications.

These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you’d expect from a quality lift. The Titan 9,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 4 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.

Contact us to Purchase

Part Number: HD2P-9000AF
Categories: , ,

Description

Features

  • Commercial Grade
  • 9,000lb. Lifting Capacity
  • Symmetric Arm Design

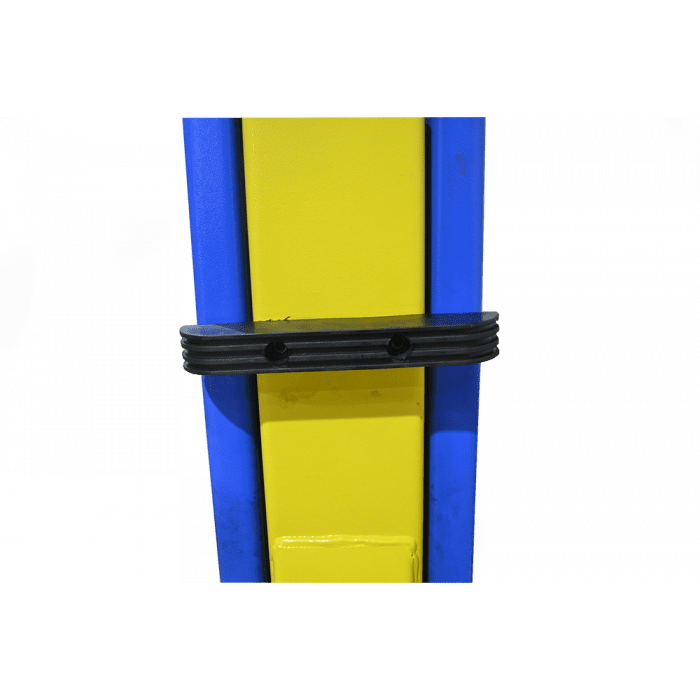

  • Rubber Door Guards

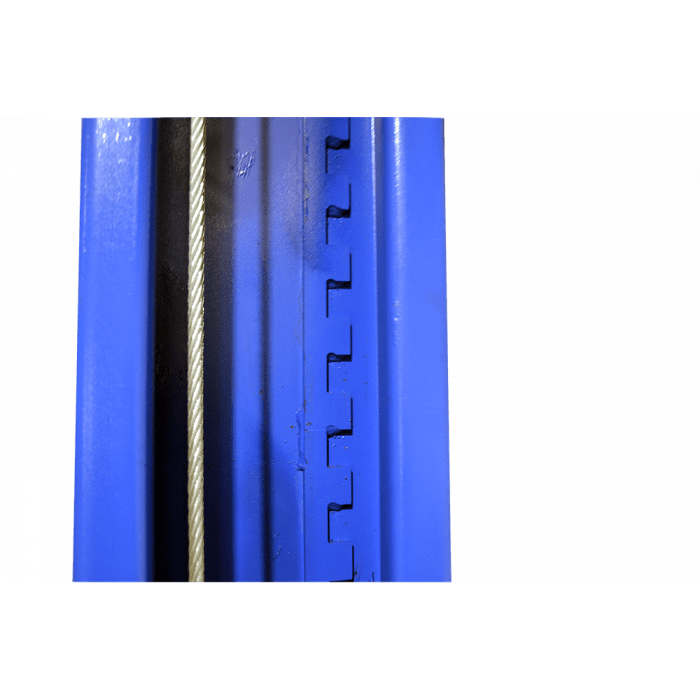

  • Dual-Point Safety Release
  • Durable Powder-coated Finish

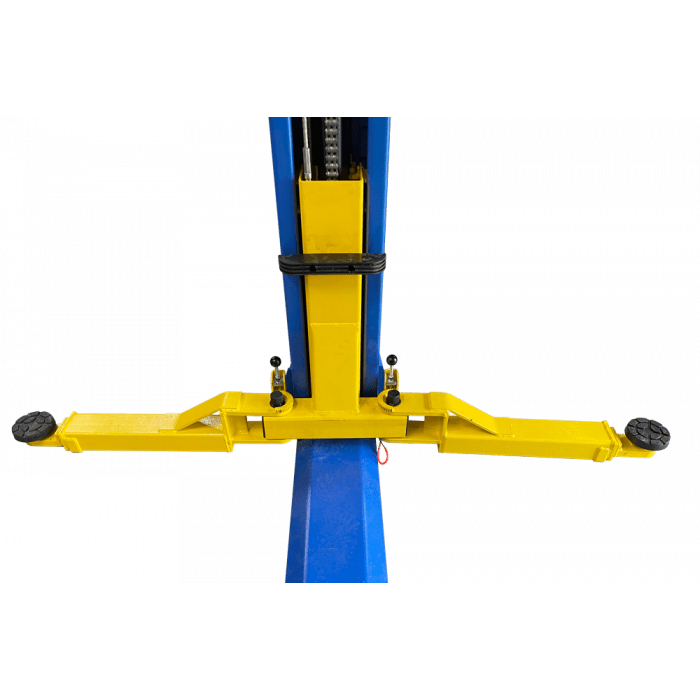

  • Low-profile Lifting Arms equipped with Automatic Arm Restraints

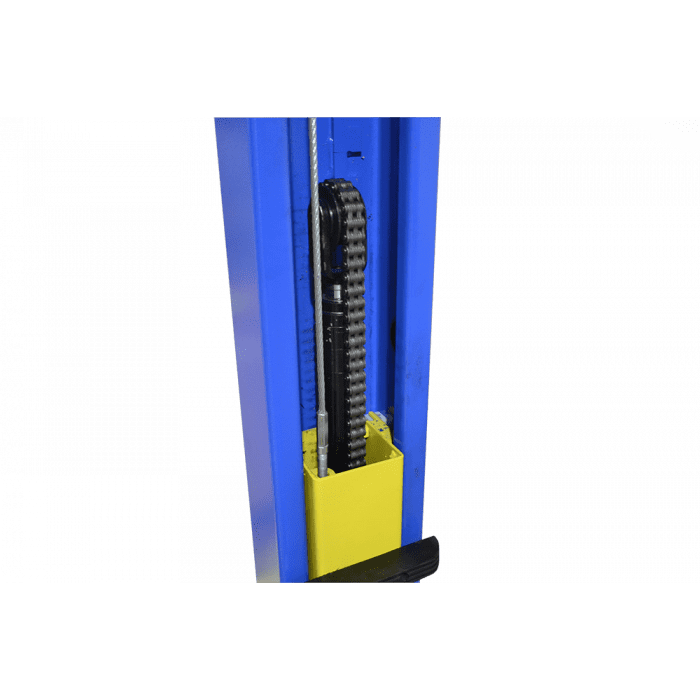

  • Dual 3” Cylinders with Low Friction Chain Rollers

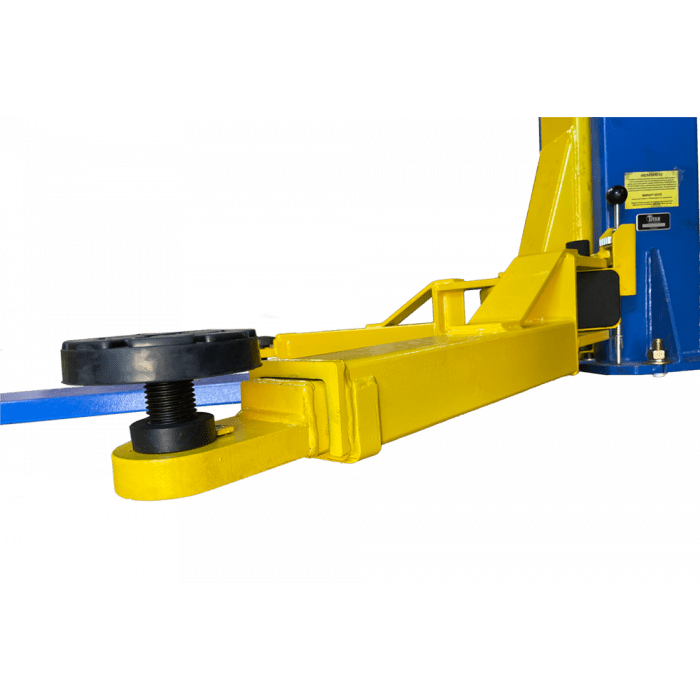

  • Threaded Lifting Pads

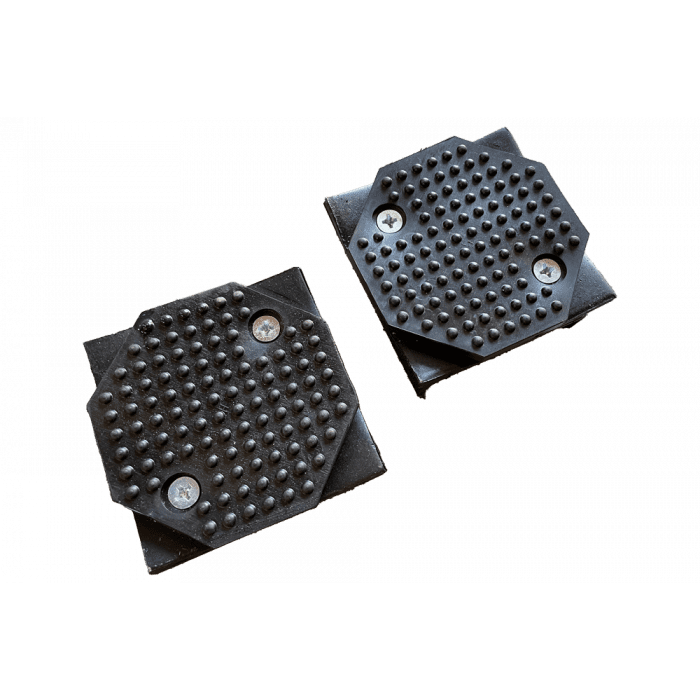

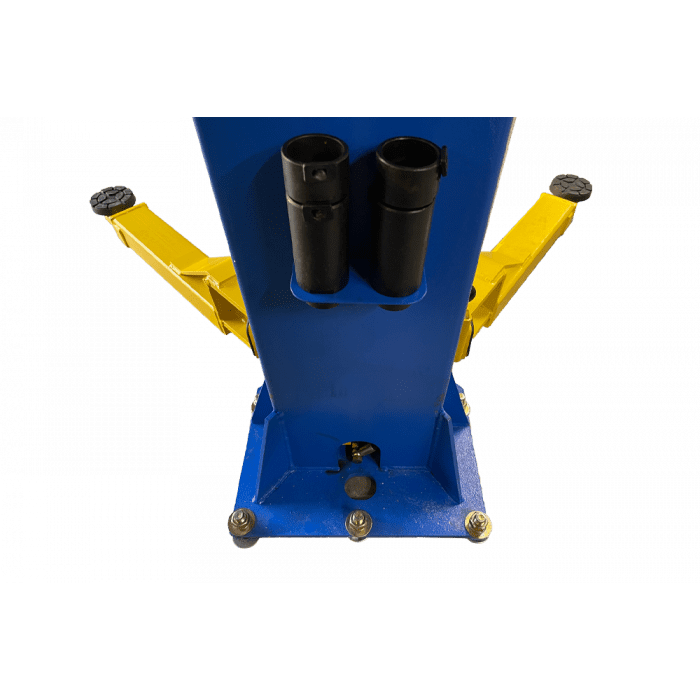

  • Stackable Truck Adapters

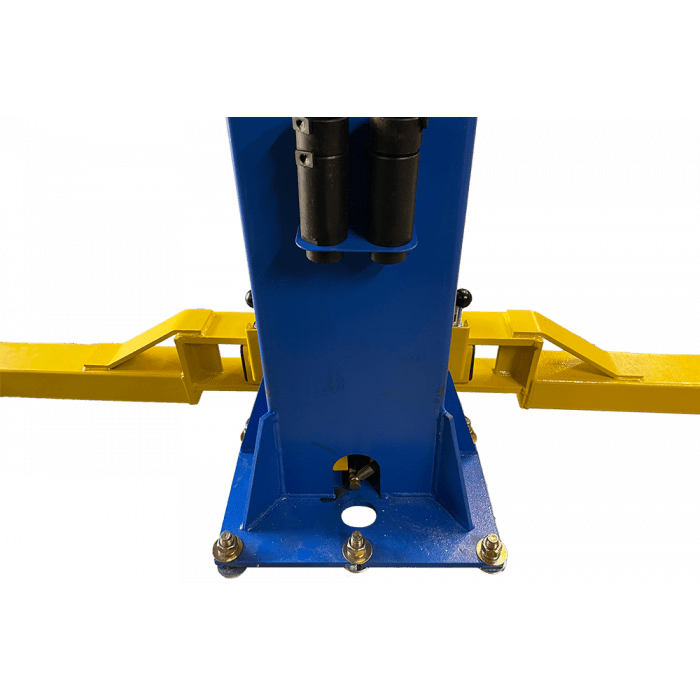

  • Low-Profile Floorplate (Protects Hose and Cables)
  • Space-saving Power Unit Mounting Bracket
  • Sleek Internal Hose Routing with Integrated Hose Guards
  • Anchor Bolt Kit Included
  • 1 Year Electric/Hydraulic Parts Warranty
  • 5 Year Structural Parts Warranty

*Perfect for garages and shops with low ceilings*

Specifications

Overall Height 112″
Overall Width 134-5/8″
Width Between Posts 110-3/8″
Drive-Thru 100-5/8″
Min Pad Height 4-5/8″
Max Pad Height 72-3/4″
Lifting Speed 45 sec
Lifting Capacity 9,000 lb
Concrete Spec Min 4″ @ 3,000 PSI
Power Unit 220V-1PH-60HZ-20AMP

Shipping

Shipping Length 115″
Shipping Width 19″
Shipping Height 45″
Shipping Weight 1,300 lb

Additional information

Weight 1300 lbs
Dimensions 115 × 19 × 45 in
