Titan HD2P-12000F 2-Post Lift


The Titan 12,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you’d expect from a quality lift.

They come in a durable scratch resistant Cobalt Blue powder-coated finish. The Titan 12,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 6 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.

Contact us to Purchase



  • Free mounting hardware
  • Low profile arm restraints
  • Durable powder coat finish
  • “Big Foot” base plates for extra stability
  • Dual 3″ cylinders with low friction chain rollers
  • 1 Year Electric/Hydraulic Warranty
  • 5 Year Structural Warranty


Overall Height 122″
Overall Width 148″
Width Between Post 120.25″
Drive-Thru 107.5″
Min Pad Height 5″
Max Pad Height 76.5″
Lifting Speed 60 sec
Lifting Capacity 12,000 lb
Concrete Spec Min 6″ @ 3,000 PSI
Power Unit 220V-1PH-60HZ-20AMP

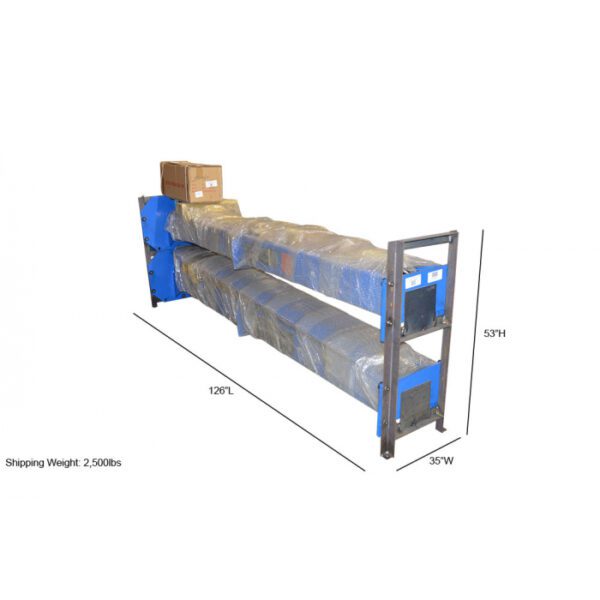

Shipping Length 126″
Shipping Width 35″
Shipping Height 53″
Shipping Weight 2,500 lb

Additional information

Weight 2500 lbs
Dimensions 126 × 35 × 53 in
