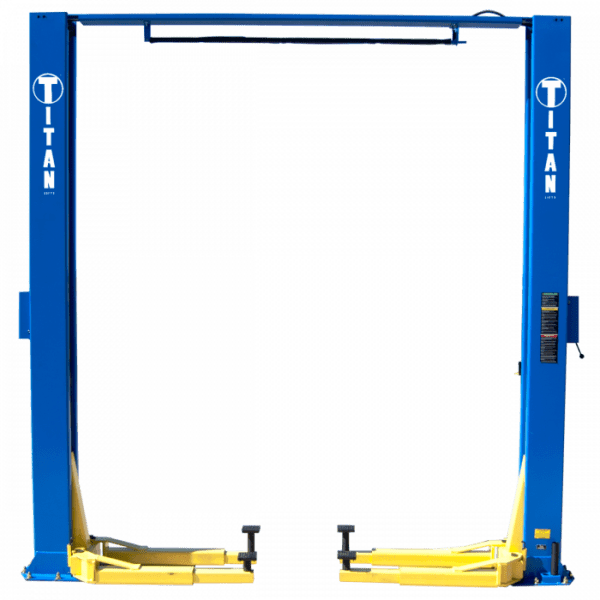

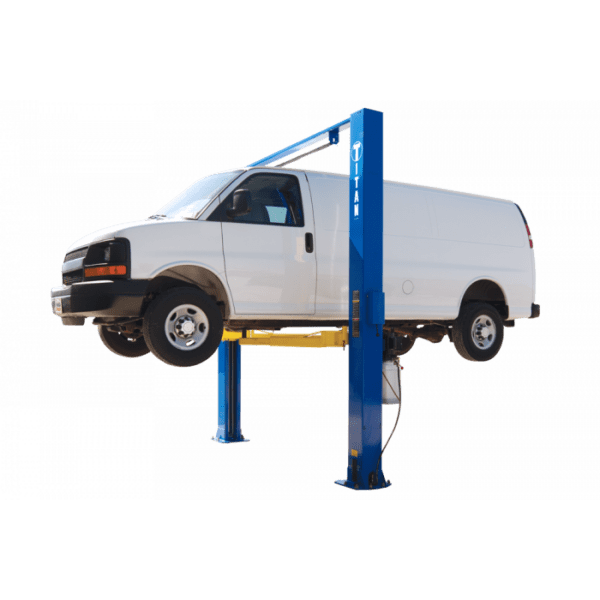

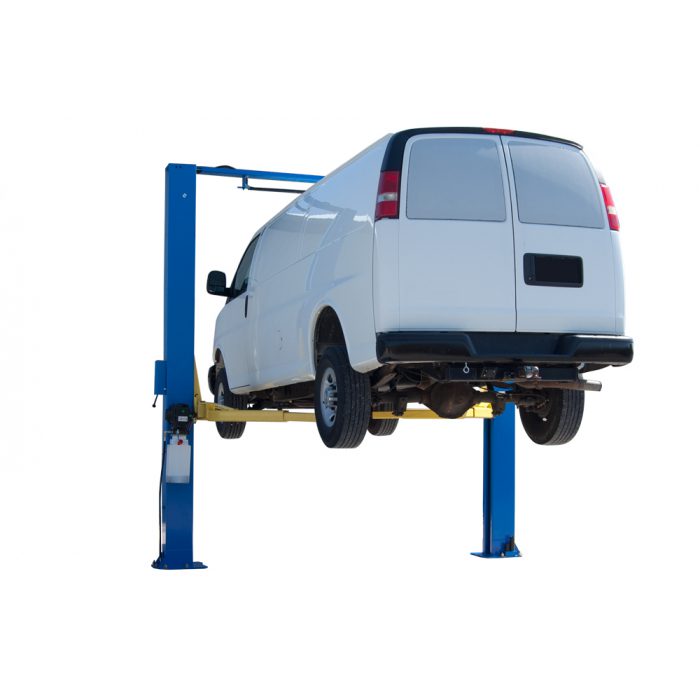

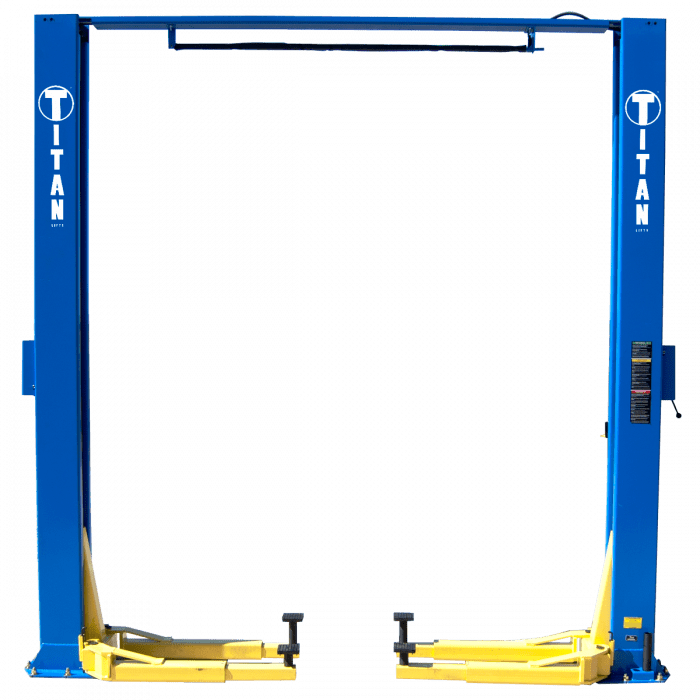

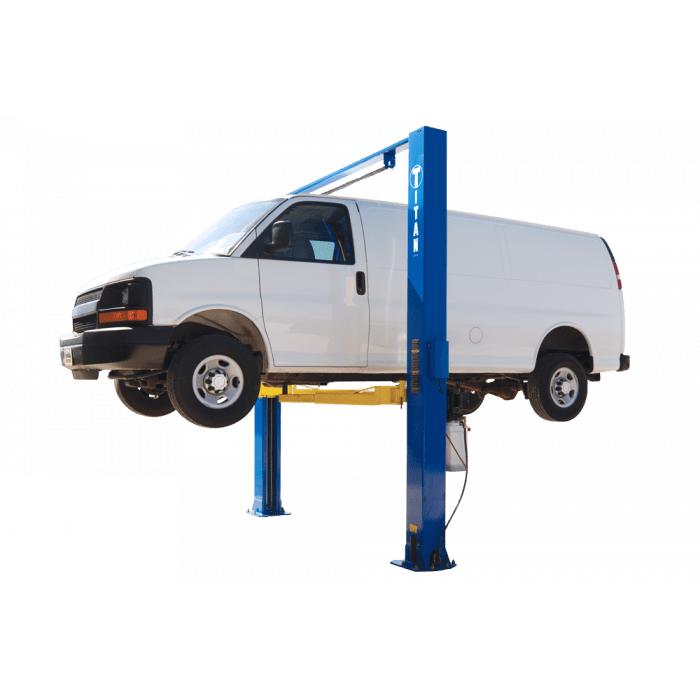

Titan HD2P-10000AC-D 2-Post Direct Drive Lift

$5,376.05

The Titan 10,000 lb. capacity two post asymmetric clear floor style lift features a direct drive system. This unit gives you a higher lifting capacity than the standard 9K lifts and thanks to the direct drive design it has fewer moving parts meaning that it requires less maintenance and inspection than the typical chain-over-roller cylinder configuration.

Many professional shops prefer the direct drive lifts as they believe them to be a more efficient method over the chain driven lifts.

Contact us to Purchase

Part Number: HD2P-10000AC-D

Description

Features

  • 10,000 lb lifting capacity
  • Commercial Grade
  • Direct Drive Hydraulic System
  • Asymmetric arm design
  • Symmetric column design
  • Low profile automatic arm restraints
  • Single Point Safety Release
  • (4) Drop-in Height Adapters 5.5″
  • Free mounting hardware
  • Durable Powder-Coated finish
  • 1 Year Electric/Hydraulic Warranty
  • 5 Year Structural Warranty

Specifications

Overall Height 144.75″
Overall Width 145″
Width Between Post 117.375″
Drive-Thru 98″
Min Pad Height 5″
Max Pad Height 72″
Lifting Speed 75 sec
Lifting Capacity 10,000 lb
Concrete Spec Min 4″ @ 3,000 PSI
Power Unit 220V-1PH-60HZ-20AMP

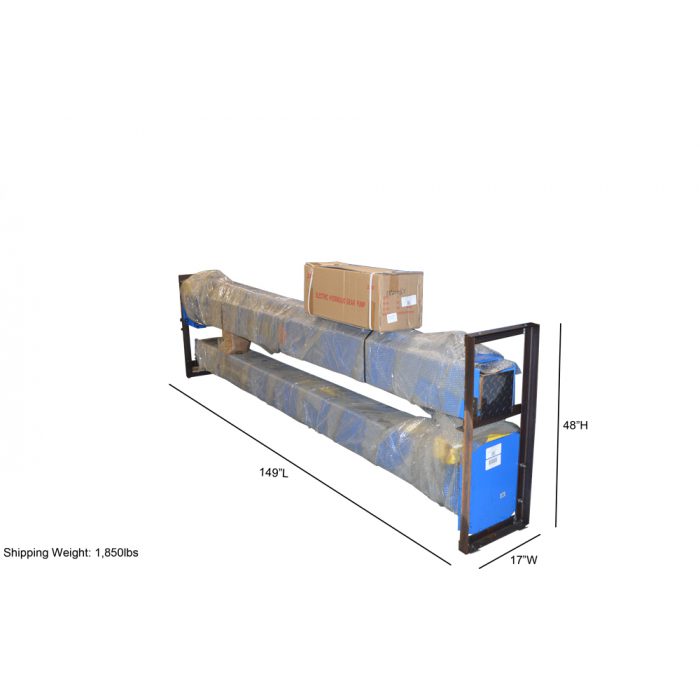

SHIPPING

Shipping Length 149″
Shipping Width 17″
Shipping Height 48″
Shipping Weight 1,850 lb

Additional information

Weight 1850 lbs
Dimensions 149 × 17 × 48 in
Brand

Availability
