Rescue Tech 7/16″ Extractor 4:1 Confined Space Rescue Kits

Confined Space Rescue Kit in Basic and Swivel Version
FOR INDUSTRY – Easy to use. Meets OSHA 1910.146 Mechanical Retrieval Device. Meets ANSI Z359.1 vertical lifeline.

FOR RESCUE– Used as 4:1 / 5:1 Block & Tackle or “piggy-backed” onto the main rescue haul line. Reduces training needs for mechanical advantage systems. Great re-direct pulley with built-in safety. NO loss of haul due to slack in prusik cord or external camming safety.

LIFTING SAFETY– The unit works as a hauling system with “deadman’s” safety. The included safety pin holds the cam open (the rope will run freely in both directions) or in a safe position. The rope will only move in the hauling direction and cannot be removed or fall out when safety is engaged. The EXTRACTOR CSR System may be used horizontally and can be attached to a haul line to act as a 4:1 / 5:1 hauling system.

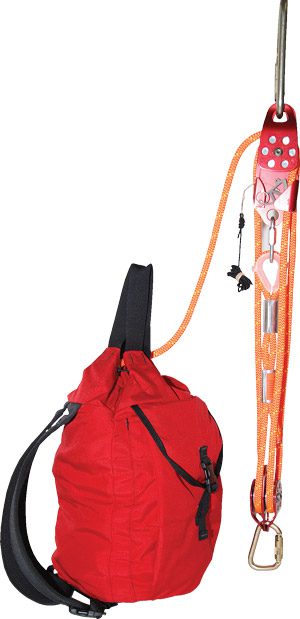

REMOTE LOWERING CAPABILITY– The attached cable allows remote control of the safety cam. This makes it possible to place the Extractor unit where it cannot be directly accessed. The Extractor design provides over 135 degrees of hauling line movement. It does not limit the hauling team to standing “in-line” with the rope system. The pulley sheaves are equipped with Oilite bushings and accept ropes up to 1/2″ in diameter. Tensile Strength: 10,000 lbf. 1/2″ EXTRACTOR 4:1 model shown in the photo.
