EW35G Soft-Mount Extractor

$7,822.00

The Extractor 30 (EW35G) is designed to follow current NFPA-1851 guidelines. It’s front load capability and 35lb drum make it a great option for washing four -6 pieces of gear. Additionally, the EW35G wash cycles are user friendly and specific to the firefighting industry. With PPE safe wash cycles such as, Outer Shells and Liners, we have engineered the EW35G to be simple, straight forward, and to get the job done. The Extractor 30 boasts other station friendly features such as a soft-mount design, standard water hookups, 120v electrical, and is compatible with automatic soap dispensers.

Contact us to Purchase

Part Number: EW35G
SKU: EW35G Categories: , , , , , ,

Description

STANDARD FEATURES
• Can wash 4-6 pieces of turnout gear per load
• Stainless steel inner tub (capacity: 5.2 cu. ft)
• Easy soft-mount installation
• With fewer overall moving parts; Promotes longer life expectancy
• Meets NFPA 1851:2020 Requirements
• Complete with manual/manufacturer’s warranty
• Hot and Cold hoses come with unit
• PPE Washing Programs: Spin Cycle G-Force Under 100 G’s
• Towels Washing Program: Spin Cycle G-Force 342 G’s
• A backflow preventer is built into the supply dispenser

ELECTRICAL
• Runs on 120 volts (watts per load: 110-160 watt hours)
• Fuse: 250V, 12 A (Time Delay)

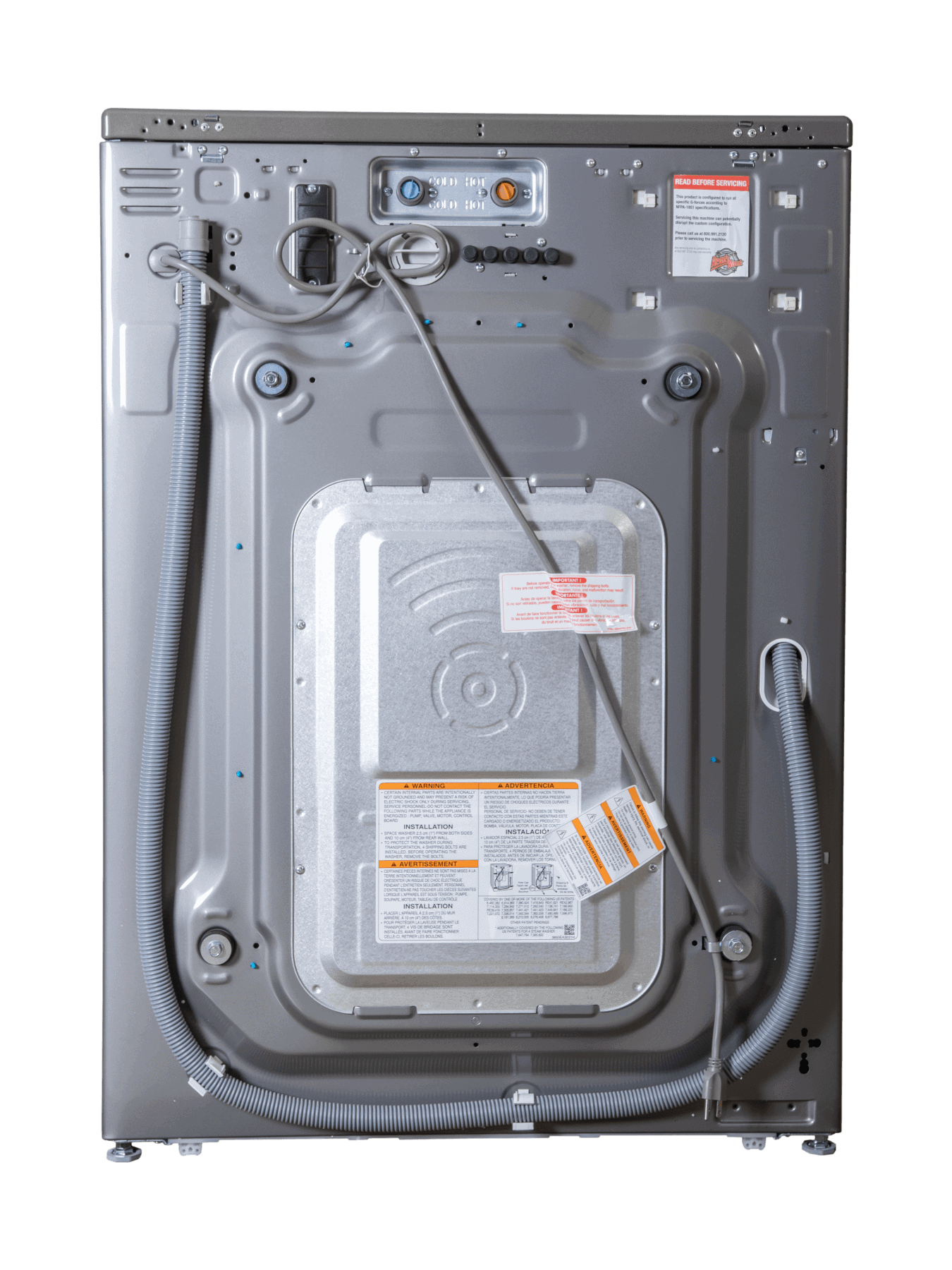

• 6′ electrical cord with plug comes off the back of the extractor.

PLUMBING
• There is a 6′ flexible drain hose that comes off the back of the
extractor. The drain hose should be inserted into a 2″ standing
drain pipe or attached to a nearby slop sink or laundry tub.

WASH CYCLES (All Times are Approximate)
NFPA 1851 COMPLIANT

  • Blood Bourne
    • Hot wash cycle to be used with PPE gear disinfectant
      laundry solution
    • Cycle: Total time – 30 minutes
  • Outer Shells / Liners
    • NFPA 1851 warm wash cycle for PPE outer shells & liners
    • Cycle: Total time – 57 minutes
  • Cold
    • PPE cold wash cycle.
    • Cycle: Total time – 52 minutes
  • Towels Warm
    • wash cycle for station towels & rags
    • *Do not wash personal or shower/bath towels in extractor
    • *Do not wash PPE gear on Towels program
    • Cycle: Total time – 47 minutes
  • Super Wash
    • Extended warm wash cycle for heavy soiled PPE gear
    • Cycle: Total time – 63 minutes

**Water usage on average will be about 15-16 gallons per cycle. This will vary depending
on water absorption of the fabric.

Fill time and drainage time is 4-5 gal/min

Machine Type: Extractor
Product Name: Extractor 35G
Product No.: EW35G
Color: Gray

Main Data

  • Type: Soft-Mount
  • Capacity, pieces of turnout gear: 4-6
  • Capacity (dry weight) lbs / kg: 22 / 9.97
  • Interior capacity cu ft / L: 5.2 / 147.25

Electrical Installation

  • Electrical connection: 120v
  • Fuse: 250v, 12 A (Time Delay)

Dimensions

  • Outer width × depth × height in / cm: 29 × 32 × 40.8 / 73.6 × 81.2 × 103.6
  • Depth with door fully open in / cm: 53.9 / 136.9
  • Shipping dimensions in / cm: 36 × 36 × 59 / 91.44 × 91.44 × 149.86

Weight

  • Weight lbs / kg: 221 / 100.2
  • Shipping weight lbs / kg: 280 / 127
