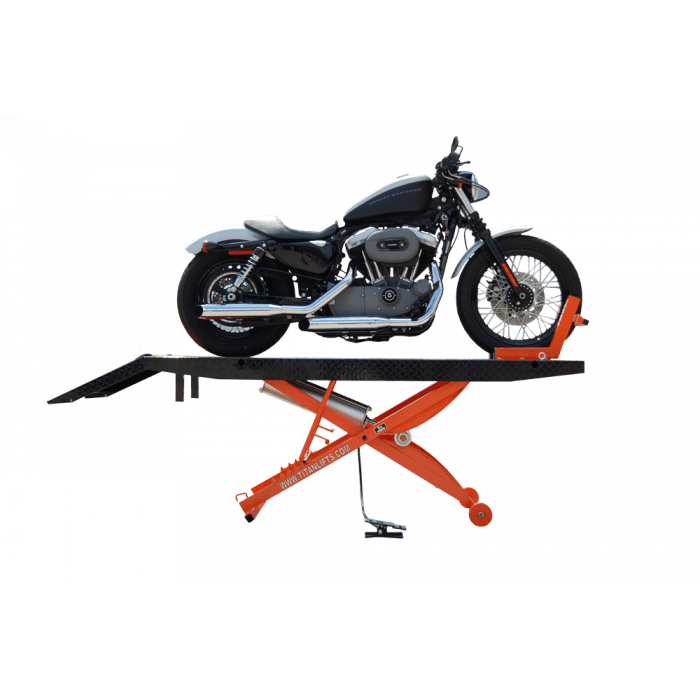

Titan SDML-1000D Motorcycle Lift

$1,671.05

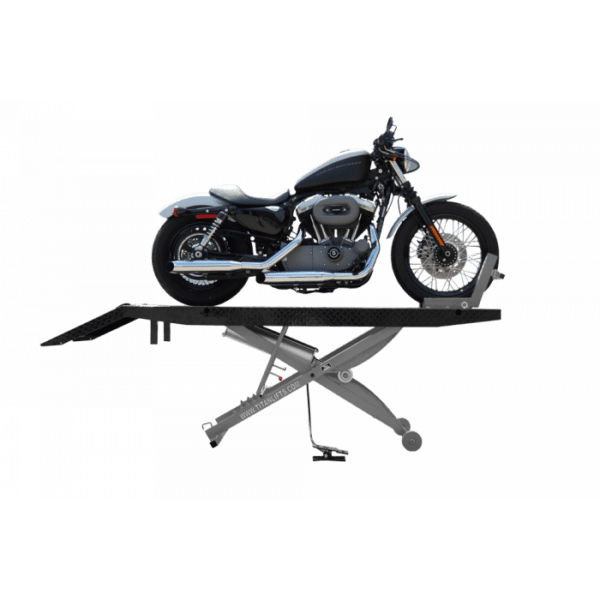

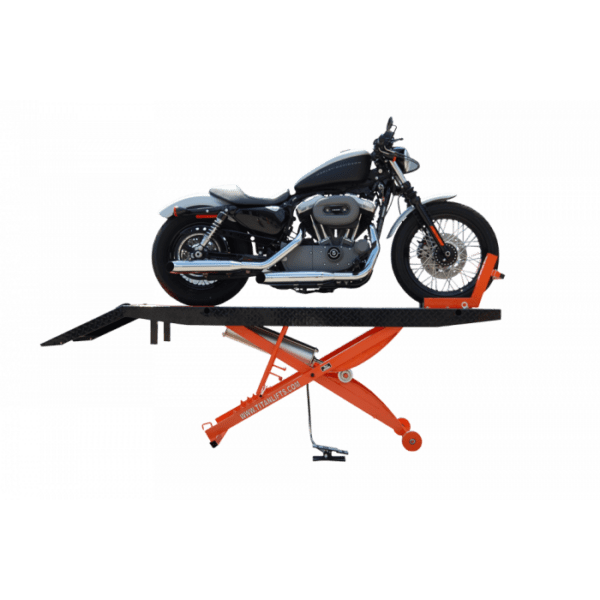

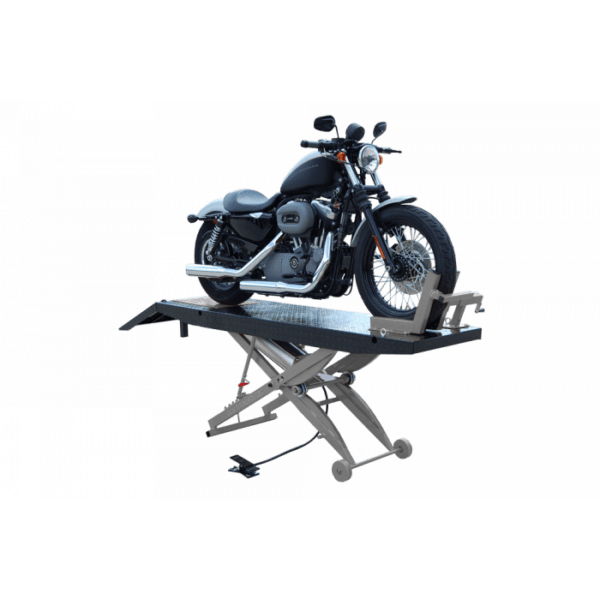

The heavy-duty diamond plated Titan 1000D is an air powered lift table that has a 1,000 lb. lifting capacity and an extra long working table so that even your longest motorcycle won’t have a problem fitting on the 99″ work space. With a max lifting height of 33″, the 1000D is a perfect addition to any shop or home garage. Choose between two different powder coating color schemes of Black & Grey or Black & Orange.

Contact us to Purchase

Part Number:
SKU: SDML-1000D Categories: , , , , , , ,

Description

INCLUDES

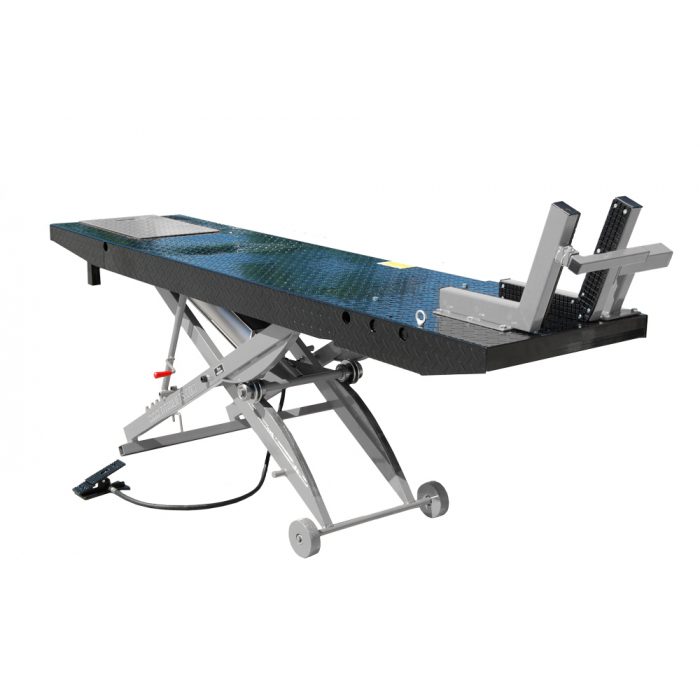

  • Front Wheel Vise
  • Multi-Positional Front Table Extension
  • Standard Rear Wheel Drop Out

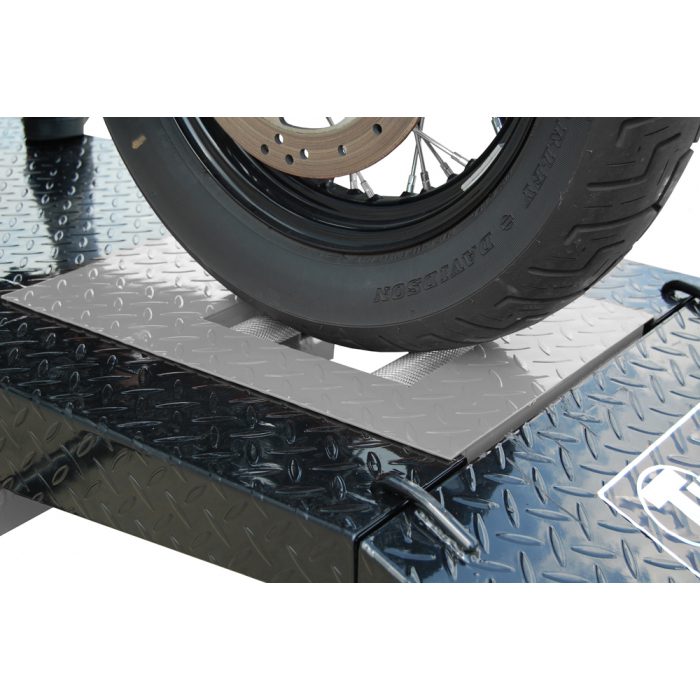

  • Roller Plate Drop Out
  • Standard Detachable Ramp
  • Extended Ramp
  • Air Powered Lift Controls

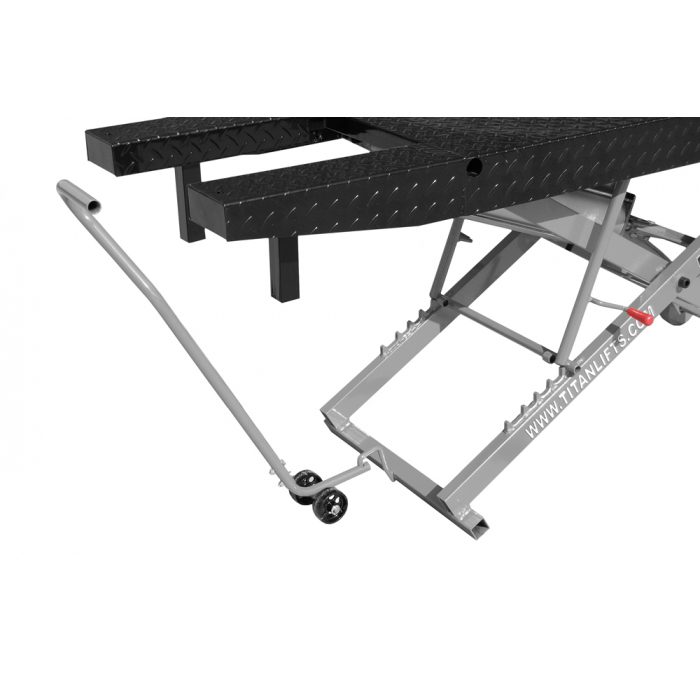

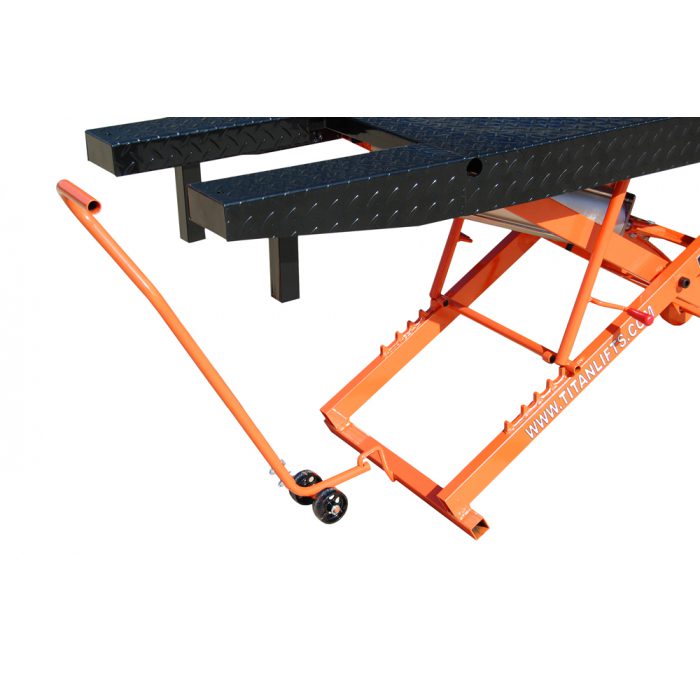

  • Two Wheeled Dolly
**Does NOT include stabilizer bar**



Locking Heights

Lock Position 1 25.25″ Lock Position 4 30.25″
Lock Position 2 27.25″ Lock Position 5 31.75″
Lock Position 3 28.75″

Dimensions

Length w/Front Extension (Position 1) 99″
Length w/Front Extension (Position 1) & Ramp 120″
Length w/Front Extension (Position 2) 94.5″
Length w/Front Extension (Position 2) & Ramp 114.5″
Length w/Front Extension (Position 3) 89.5″
Length w/Front Extension (Position 3) & Ramp 109.5″

Specifications

Front Extension 24.5″ x 23.75″
Table Length 87.5″ – 99″
Table Width 24″
Lowered Height 8″
Rise Height 33″
Lifting Capacity 1,000 lb
Power Type Air Only
Power Spec 90 – 110 PSI

Shipping

Shipping Length 91″
Shipping Width 27″
Shipping Height 13″
Shipping Weight 525 lb

Additional information

Weight 525 lbs
Dimensions 91 × 27 × 13 in
Color

Black/Gray, Black/Orange
