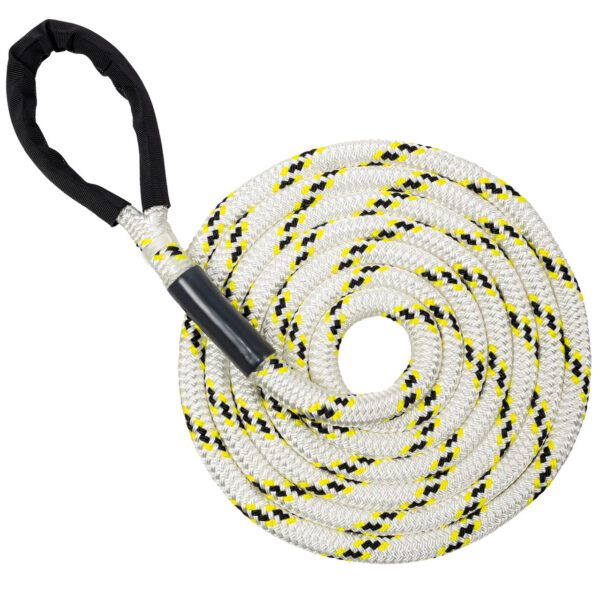

Sterling 5/8″ VerGo2 Rigging Line w/ 2 Spliced Eyes

Price range: $420.99 through $1,493.99

A 100% polyester double-braid utility rope designed for efficient hauling. The sheath construction resists snagging and runs smoothly with capstans and blocks. The largest diameter in the lineup, the 5/8” VerGo2 is available in lengths ranging from 300’ to 1200’ and comes standard with a spliced eye on each end with a protective wear pad. Each diameter in the VerGo2 series of rigging ropes has a unique tracer for easy identification. Each rope is Scannable compatible and offers a data matrix on the label to track and inspect your rope.
  • Construction: 100% Polyester Double Braid
  • Spliced Eyes at both ends with a protective wear pad
  • Conforms to ASME B30.30-2023.
  • Labeled in accordance with ASME B30.30, with product serialization
  • Scannable compatible – Data matrix on the label allows you to track and inspect rope
  • Meets synthetic rigging line requirements of ANSI A10.48-2023.
  • MBS of the rope is based on the spliced termination strength – Determined in accordance with CI 1500B
  • Made in Canada
Part Number:
SKU: N/A Categories: , , , , Brand:

Description

Specifications

  • Diameter (in / mm): 5/8” / 17 mm
  • Spliced Eye ABS (lb / kN): 18,500 lb / 82.5 kN
  • Spliced Eye MBS (lb / kN): 15,700 lb / 70.0 kN
  • Weight (lb/100’): 13.93 lb
  • Weight (g/m): 207.3 g
  • Sheath (%): 44.6%
  • Elongation @10% MBS: 1.8%
  • Sheath / Core: Polyester / Polyester
  • 10:1 WLL (lb / kN): 1,570 lb / 7.0 kN

Additional information

Availability

Length

1200ft, 300ft (92m), 600ft (183m)
Brand

Sterling Rope
