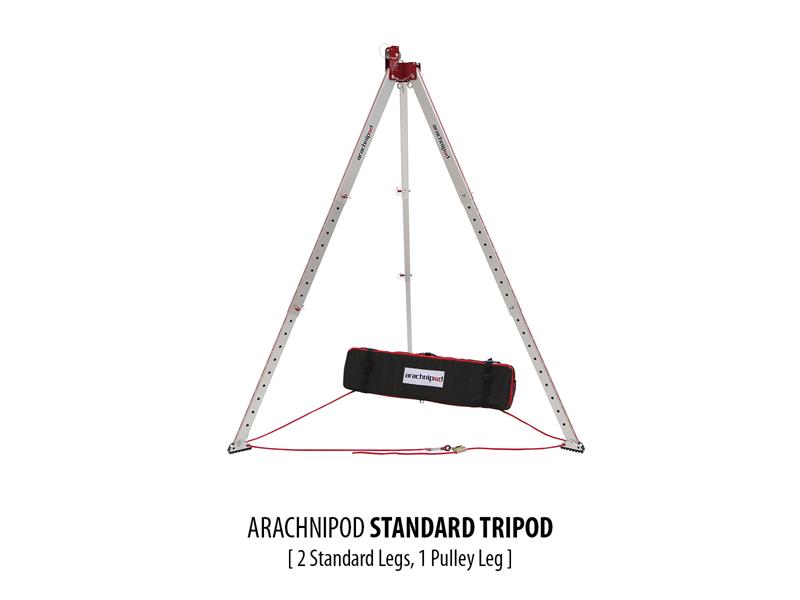

Rescue Tech Arachnipod Standard Multipod Edge Management Tripod

Price range: $4,100.00 through $4,500.00

Arachnipod Advantage-Basic
Edge Management System
The Arachnipod is the world’s most versatile modular total edge management system (TEMS) and was recently awarded an Australian International Design Mark at the 2008 Design Awards. The Arachnipod is based around the concept of an industrial tripod, however this product is much more than just a tripod. Components can be added or removed as required so that the Arachnipod complements existing structural or natural features. The unique design of the patent-pending modular head means the Arachnipod can be constructed into many different configurations, including a ginpole/monopole, bipod, tripod, quadpod, bridge system, and handrail recovery monopole. Additional legs can be fitted for heavy loads to increase the safe working load (SWL). Its versatility makes it an ideal system for rescue and emergency services, construction, military, utility services, mining, film, and maintenance workers.

Part Number:

Description

How It Works
The Arachnipod, in its most basic form, is a simple tripod with three legs independently pivoting from an anodized aluminum head. The modular head has a similar design to a door hinge. Inserting or removing a pin through the center of the head allows the quick and simple addition or removal of components to create a configuration to suit any edge management scenario. Each head section contains a shackle

The Advantage Basic system comprises a standard head tripod with two rigging points. A quadpod can be created by adding the appropriate quadpod add-ON Kit to the base system. Weight: 57 lbs. It meets CE EN 795B standards for Tripod and Quadpod. Note: The Arachnipod Basic will function as an equilateral Tripod with a Lazy Leg. The Arachnipod Basic EDGE is configured to allow the unit to be set up as a flat-front edge Tripod.

Additional information

Options

Advantage (Basic), Advantage-Basic-Edge

Availability

Brand

Rescue Tech
