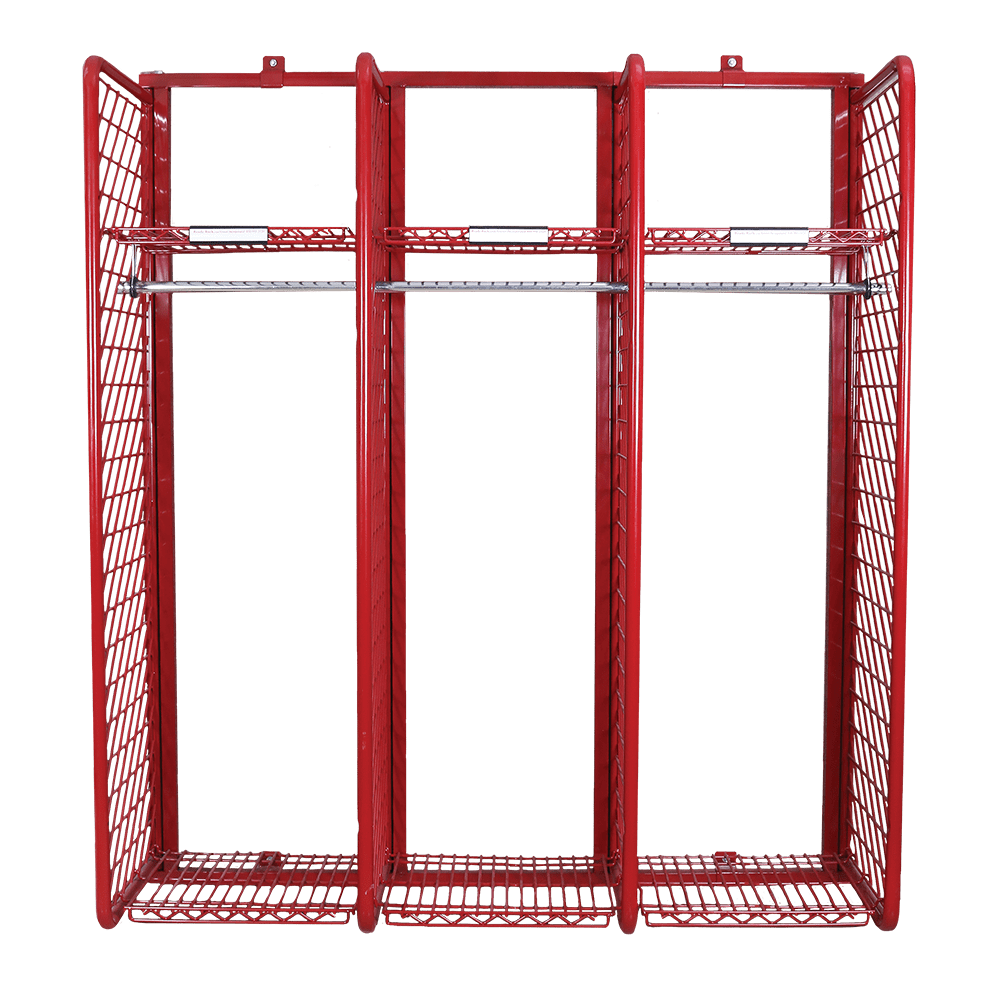

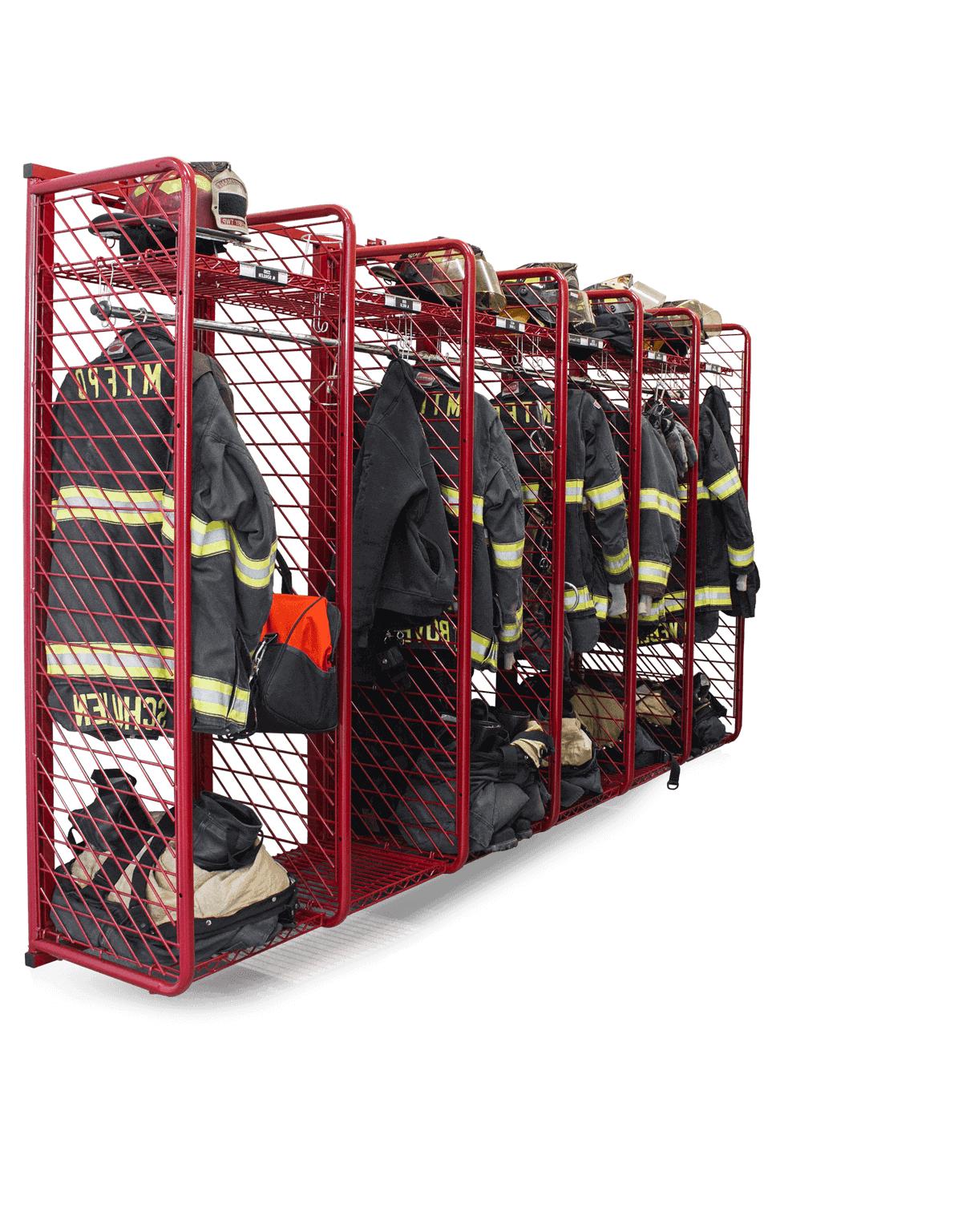

Ready Rack Wall Mounted Red Rack

Description

Dimensions: Length determined by number of units x 20” or 24″ D x 72” H

• 18″ / 20” / 24” wide compartments available – 20″ / 24″ depth available
• Each unit comes complete with: adjustable boot shelf, adjustable helmet shelf, hanging pole the length of the unit, (2) appeal hooks per locker, & (1) name plate per locker
• Made of heavy-duty steel with a red powder coated finish
• Built with a tubular steel design
• Security option available: lockable door and top security shelf (Security back frame can be ordered upon request)
• Can be ordered in any run length thanks to our exclusive modular design
• * Available in custom colors, with extended lead times, upon request. Additional fees may apply
• Other accessories available.

THE RED RACK ADVANTAGE

• Built with individual 1.25” square tubular frames to stand up to the demanding firefighting environment.
• Keeps your gear organized. Custom applications available if special sizing is required.
• Open back design allows for easy wall access and use of outlets. No electrician or wiring required.
• Powder coating will not fade or chalk under UV light conditions and stands up to a 184 hr. salt spray test.
• Complete with safety and assembly instructions making it easy to install and maintain.
• Our units come complete with a five year limited warranty on manufacturer defect.

18″ WIDE SECTIONS

• RRWM-1/18: Length:  19.75″/ Weight: 85 lbs.
• RRWM-2/18: Length: 38.50″/ Weight: 142 lbs.
• RRWM-3/18: Length: 57.25″/ Weight: 196 lbs
• RRWM-4/18: Length: 76.00″/ Weight: 251 lbs.
• RRWM-5/18: Length: 94.75″/ Weight: 306 lbs.
• RRWM-6/18: Length: 113.50″/ Weight: 362 lbs.
• RRWM-7/18: Length: 132.25″/ Weight: 417 lbs.
• RRWM-8/18: Length: 151.00″/ Weight: 473 lbs.
• RRWM-9/18: Length: 169.75″/ Weight: 528 lbs.
• RRWM-10/18: Length: 188.50″/ Weight: 584 lbs.
• RRWM-11/18: Length: 207.25″/ Weight: 612 lbs.
• RRWM-12/18: Length: 226.00″/ Weight: 695 lbs.
• RRWM-13/18: Length: 244.75″/ Weight: 751 lbs.
• RRWM-14/18: Length: 263.50″/ Weight: 806 lbs.
• RRWM-15/18: Length: 282.25″/ Weight: 862 lbs.

20″ WIDE SECTIONS

• RRWM-1/20: Length: 21.75″/ Weight: 88 lbs.
• RRWM-2/20: Length: 42.50″/ Weight: 147 lbs.
• RRWM-3/20: Length: 63.25″/ Weight: 206 lbs.
• RRWM-4/20: Length: 84.00″/ Weight: 265 lbs.
• RRWM-5/20: Length: 104.75″/ Weight: 324 lbs.
• RRWM-6/20: Length: 125.50″/ Weight: 383 lbs.
• RRWM-7/20: Length: 146.25″/ Weight: 442 lbs.
• RRWM-8/20: Length: 167.00″/ Weight: 501 lbs.
• RRWM-9/20: Length: 187.75″/ Weight: 560 lbs.
• RRWM-10/20: Length: 208.50″/ Weight: 619 lbs.
• RRWM-11/20: Length: 229.25″/ Weight: 678 lbs.
• RRWM-12/20: Length: 250.00″/ Weight: 737 lbs.
• RRWM-13/20: Length: 270.75″/ Weight: 796 lbs.
• RRWM-14/20: Length: 291.50″/ Weight: 855 lbs.
• RRWM-15/20: Length: 312.25″/ Weight: 914 lbs.

24″ WIDE SECTIONS

• RRWM-1/24: Length: 25.75″/ Weight: 91 lbs.
• RRWM-2/24: Length: 50.50″/ Weight: 153 lbs.
• RRWM-3/24: Length: 75.25″/ Weight: 215 lbs.
• RRWM-4/24: Length: 100.00″/ Weight: 277 lbs.
• RRWM-5/24: Length: 124.75″/ Weight: 339 lbs.
• RRWM-6/24: Length: 149.50″/ Weight: 401 lbs.
• RRWM-7/24: Length: 174.25″/ Weight: 463 lbs.
• RRWM-8/24: Length: 199.00″/ Weight: 525 lbs.
• RRWM-9/24: Length: 223.75″/ Weight: 587 lbs.
• RRWM-10/24: Length: 248.50″/ Weight: 649 lbs.
• RRWM-11/24: Length: 273.25″/ Weight: 711 lbs.
• RRWM-12/24: Length: 298.00″/ Weight: 773 lbs.
• RRWM-13/24: Length: 322.75″/ Weight: 835 lbs.
• RRWM-14/24: Length: 347.50″/ Weight: 897 lbs.
• RRWM-15/24: Length: 372.25″/ Weight: 959 lbs.

ADD-ON Security Options:

SEC-18/WM 18″ 31 lbs.
SEC-20/WM 20″ 36 lbs.
SEC-24/WM 24″ 41 lbs.
Each section with Security Option includes:
• Top Security Shelf
• Security Door
• Hinge Lock Bracket Set

**These are priced as an each opening price.  You will need to order how many security kits you want in relationship to how many lockers you are ordering.
