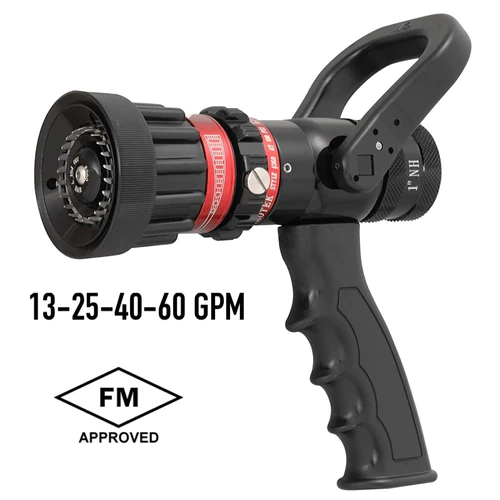

Protek 1″ Selectable Gallonage Nozzle (13-25-40-60 GPM)

$505.00 – $525.00

Protek’s Selectable Gallonage Nozzles are combination pattern nozzles with versatile multiple flow settings.  We offer an expansive line of Select Gallonage Nozzles for your department.  FREE freight and double the factory warranty.

Part Number:
SKU: 1361 Categories: , , , , , , , , , , , ,

Description

  • Combination pattern nozzles with multiple flow settings.
  • Superb wide fog pattern for optimum fire fighter protection.
  • Stainless steel spinning teeth.
  • Heavy-duty chrome plated metal shutoff ball for smooth action and long life.
  • Flow pattern detents facilitate positive positioning and smooth action.
  • Raised lug for easier pattern identification.
  • Laser-etched anodized label for excellent durability and visibility.
  • Flush without changing pattern or shutting down.
  • Suitable for high pressure applications up to 580 psi (40 bar).
  • Ergonomic design pistol grip.
  • Continuous female swivel inlet with stainless steel strainer.
  • Minimal maintenance reflected in robust design, precision machining and quality materials.
  • FM Approved
  • Uses Foam Aeration Tube: 1210
  • NFPA 1964 Compliant

DATA SHEET download

Specifications

  • Style: 1361
  • Flow Rate: 13-25-40-60 GPM (50-100-150-230 LPM)
  • Operating Pressure: 100 psi (7 bar), 580 psi (40 bar)
  • Waterway: ¾”
  • Inlet: 1″ (25 mm) – NH or NPSH
  • Length: 7.4″ (190 mm)
  • Weight: 2.3 lbs (1.1 kg)

Additional information

Model

w/ Pistol Grip, w/o Pistol Grip
Thread

NH, NPSH
Brand

Availability

,
