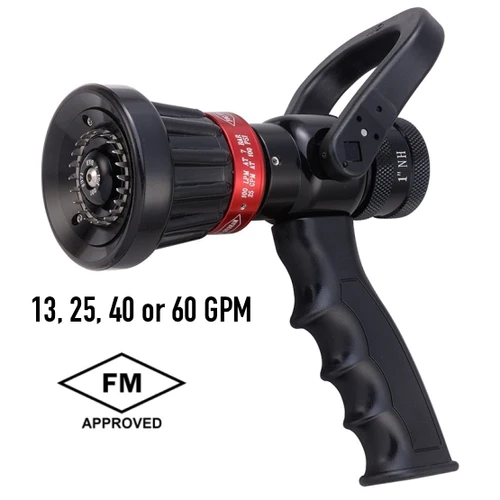

Protek 1″ Constant Gallonage Nozzle 13, 25, 40, or 60 GPM (Preset to 40 GPM)

$500.00 – $520.00

Protek’s Constant Gallonage Nozzles effectively deliver a constant gallonage from straight stream to full fog.   The nozzle combines quality stream performance at various pressures with the simplicity of a fixed orifice.  Free FREIGHT and 10 year warranty!  Call us today!

Part Number:
SKU: N/A Categories: , , , , , , , , , , , ,

Description

Features

  • Constant single-flow nozzle delivered with a calibrated flow disc installed
  • Superb wide fog pattern for optimum fire fighter protection
  • Stainless steel spinning teeth
  • Custom flow and pressure combinations are available
  • Flow pattern detents facilitate positive positioning and smooth action
  • Laser-etched anodized label for excellent durability and visibility
  • Flush without changing pattern or shutting down
  • Ergonomic design pistol grip
  • Heavy-duty chrome plated metal shutoff ball for smooth action and long life
  • Stainless filter mesh prevents blockage caused by debris
  • Minimal maintenance reflected in robust design, precision machining and quality materials
  • FM Approved
  • NFPA 1964 Compliant

DATA SHEET  download

Specifications

  • Model: 1371
  • Flow Rate:  13, 25, 40 OR 60 GPM (50, 100, 150 OR 230 LPM)
  • Operating Pressure:  100 psi (7 bar)
  • Inlet: 1″ (25 mm)
  • Teeth: Spinning
  • Length:  7.1″ (180 mm)
  • Weight: 2.1 lbs (0.9 kg)

Additional information

Style

,

Flow GPM/LPM

13 GPM/50 LPM, 25 GPM/ 100 LPM, 40 GPM/ 150 LPM, 60 GPM/ 230 LPM
Brand

Thread

NH, NPSH
Availability

,
