ISC HaulerBiner System

Price range: $266.80 through $287.35

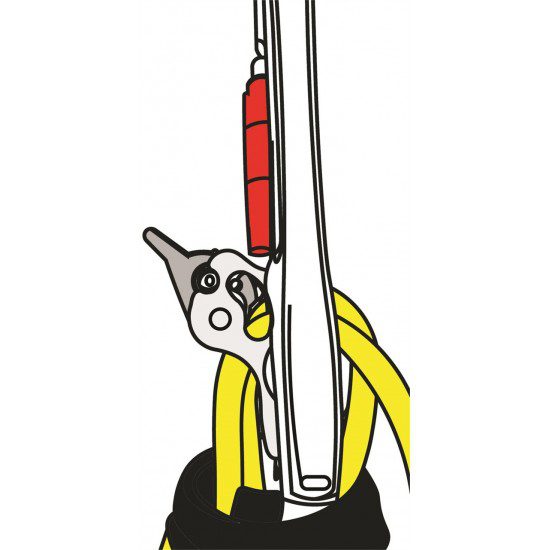

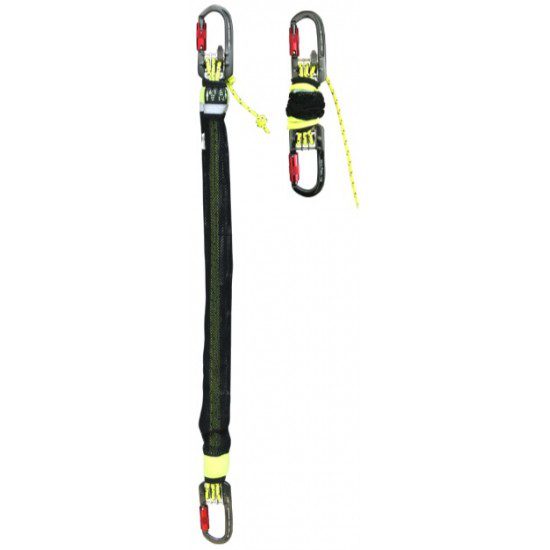

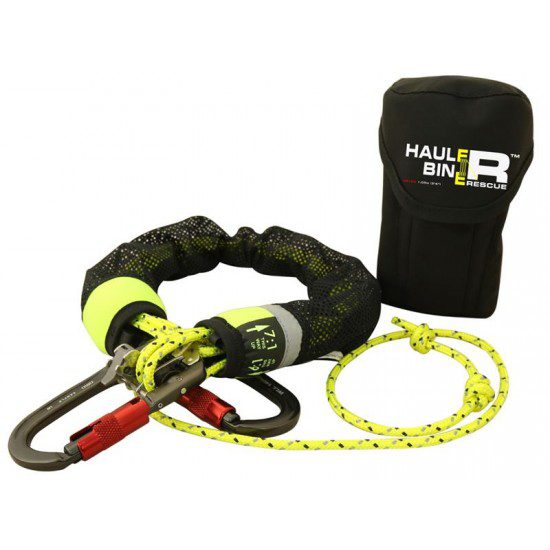

The HaulerBiner has three pulley wheels incorporated into each Karabiner, creating a compact and lightweight 6:1 or 7:1 Mechanical Advantage system The HaulerBiner also has a purpose-designed progress capture cam with, an ‘on/off’ position. The HaulerBiner utilizes purpose-developed 6mm (1/4″) rope, for strength and easy handling/best grip. The kit is supplied in a two-pouch bag, for easy deployment.

The HaulerBiner is load rated to 140kg (310lbs) but it has an MBS of at least 16kN/3500lbs tested as a complete system. Kits are available in three standard lengths: 105cm (41″), 165cm (65″), with custom lengths available on request. The length of the system, when fully contracted is only 32cm (12″)!

Part Number:
SKU: N/A Categories: , , , , , , , , Brand: ,

Description

The HaulerBiner can be used in a number of ways:

  • As part of a pick-off system
  • On a structure, pull down on the system and achieve a 6:1 (theoretical) MA
  • When suspended in a harness, pull up on the system and achieve a 7:1(theoretical)
  • As a tensioning system for short/low load lines
  • As a stretcher management device, using two or more HaulerBiners to easily change or adjust the orientation of the stretcher

*The HaulerBiner is Load Rated to 140KG (310LBS) but has an MBS of at least 16KN/3500LBS Tested as a complete system. Light Use

Part Codes:

(Part# 1445) ISC Part # HB105.2 – 105cm (3’5″) Kit.

(Part# 1446) ISC Part # HB165.2- 165cm (5’5″) Kit.

Available Colors Black/Yellow
Origin Made in the USA
Size 2-meter length extended

Additional information

Length

105cm, 165cm
Availability

Source

Yates Gear
Brand

ISC
