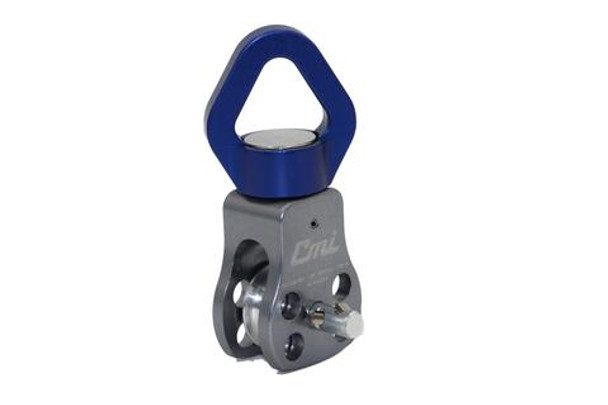

CMI Swivel Pulley with Removable Sheave


The RP161RS is CMIs new swivel pulley’s that combine a pulley with a swivel to offer superb advantages. They can replace a conventional pulley, are lighter, stronger than comparable products and save valuable vertical space. The RP161RS is made with a stainless steel slic pin that allows you to remove the sheave.

Part Number: RP161RS


Part# RP161RS
MBS: 9,900 lbs
SWL: 1,980 lbs
Sheave Diameter: 1.25”
Max Rope Diameter 1/2”
Weight: 8 oz
Body material: Anodized Aluminum
Sheave Mechanics: Oilite Bronze Bushing
Sheave Material: Aluminum
Width: 2.0”
Height: 4.50”
Depth: 1.093” sideplate to sideplate
