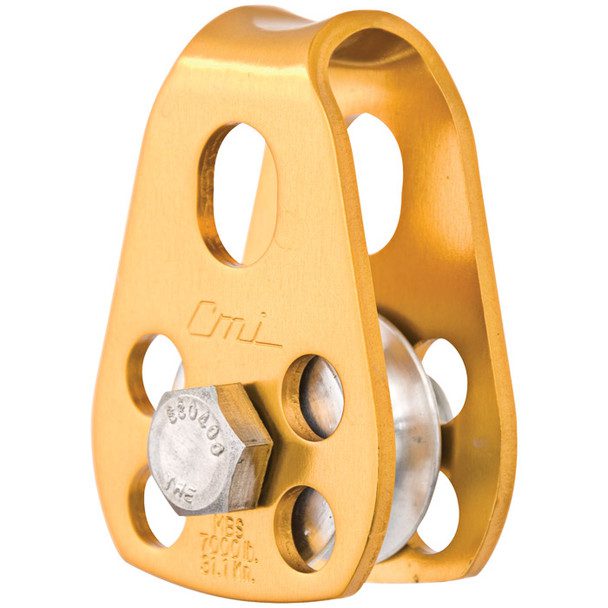

CMI Continuous Sideplate Micro Pulley (Bushing)


Continuous sideplate allows multiple rigging options–parallel to the rope with a single oval carabiner, or perpendicular through the rigging holes. Anodized aluminum sideplates, 1 1/4″ aluminum sheave,bushing, and stainless steel axle.

Part Number: RP140


Part# RP140
MBS: 7,000 lbs
SWL: 1,400 lbs
Sheave Diameter: 1.25”
Max Rope Diameter: 1/2”
Weight: 3 oz
Body Material: Aluminum
Sheave Mechanics: Oilite Bronze Bushing
Sheave Material: Aluminum
Width: 1.75”
Height: 2.50”
Depth: 0.861” (sideplate to sideplate)
