Ziamatic Quic-Lift Outside Arm Ladder System (OALS)
$5,811.06 – $19,919.83
– Stores ladders horizontally over top of the apparatus, leaving more space for compartments below.
– Lowers ladders from the stored position to a convenient height for safe & easy retrieval, reducing risk of strains and other common injuries.
– Powered by a new & improved, dual stroke 8″ hydraulic cylinders that raise and lower faster than ever before. Maximum load of 300 lb.

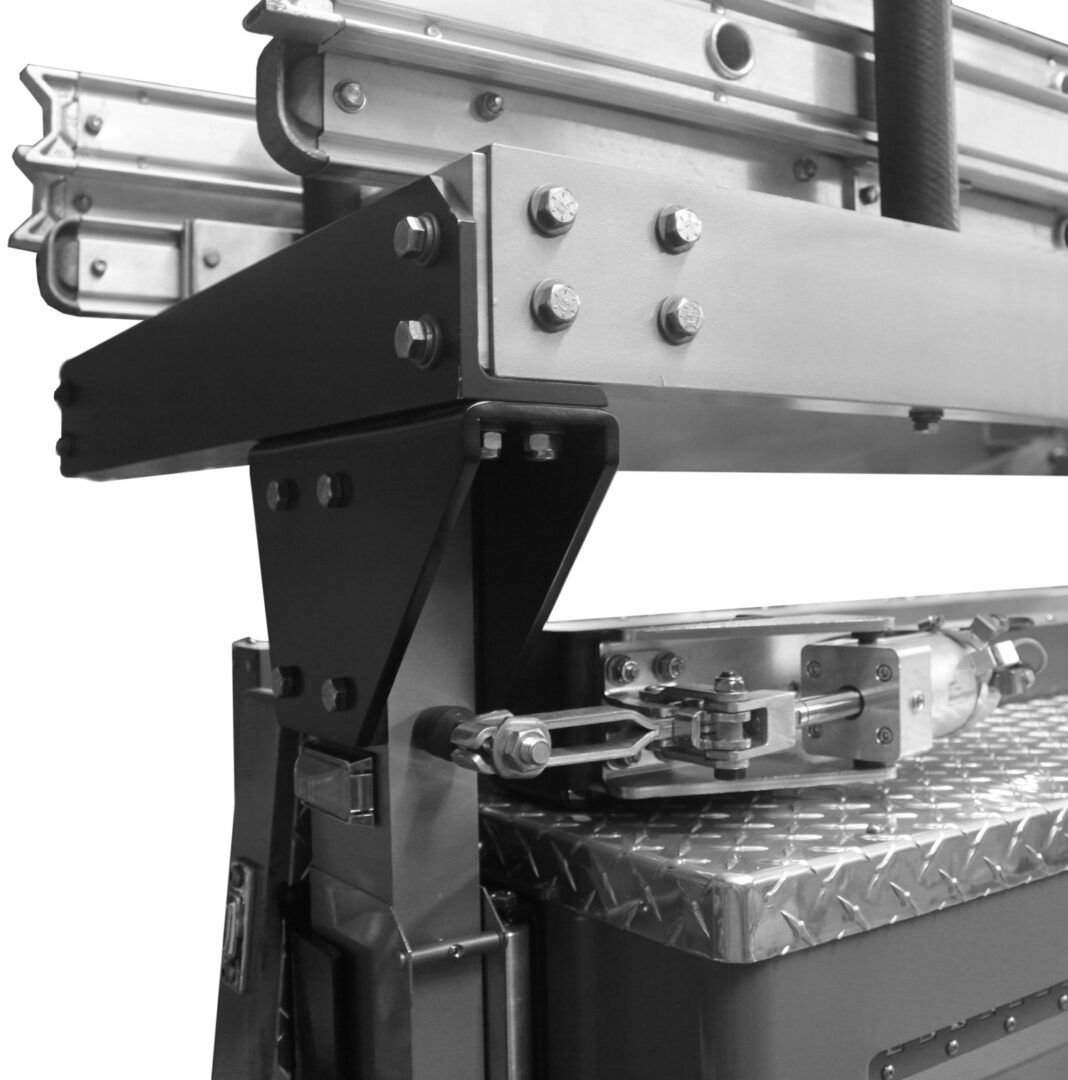

– Heavy-duty, 2″ x 4″ powder-coated cast aluminum booms connect hydraulic cylinders to the ladder rack.
– Booms mount to end walls of apparatus cabinetry, allowing for extra storage space.
– Booms lower ladders away from the side body, so that access to side compartments remains unrestricted.
– Hydraulically-powered. Control and electrical panels are included.
– For additional safety, pneumatic power clamps automatically lock booms in place when returned to the fully-stored position.
– NFPA compliant. A Flashing Light Kit provides a visual signal when the system is out of the stored position. An optional Audio/Visual Alarm is also available (see Model AVA).
OALS racks can be custom made to your specifications. Please call us at 1-800-711-FIRE for more information.
Model OALS: Basic System – Less Rack
Model OALS-775: Complete System with 7-3/4″ Ladder Combination
Model OALS-975: Complete System with 9-3/4″ Ladder Combination
Model OALS-1200: Complete System with 12″ Ladder Combination
Ordering Your OALS System:
When ordering, please be prepared with the following information:
1.) Manufacturer of ladders to be mounted
2.) Model numbers of ladders to be mounted
3.) Length of each ladder
4.) Fire department name, city, and state (for unit registration)
Basic System – Less Rack, Rack Only, Complete System with 7-3/4″ Ladder Combination, Complete System with 9-3/4″ Ladder Combination, Complete System with 12″ Ladder Combination, Rack only for 7-3/4” ladder combo, Rack only for 9-3/4” ladder combo, Rack only for 12” ladder combo
