Ziamatic Oxygen Tank System – For Aluminum M Cylinders

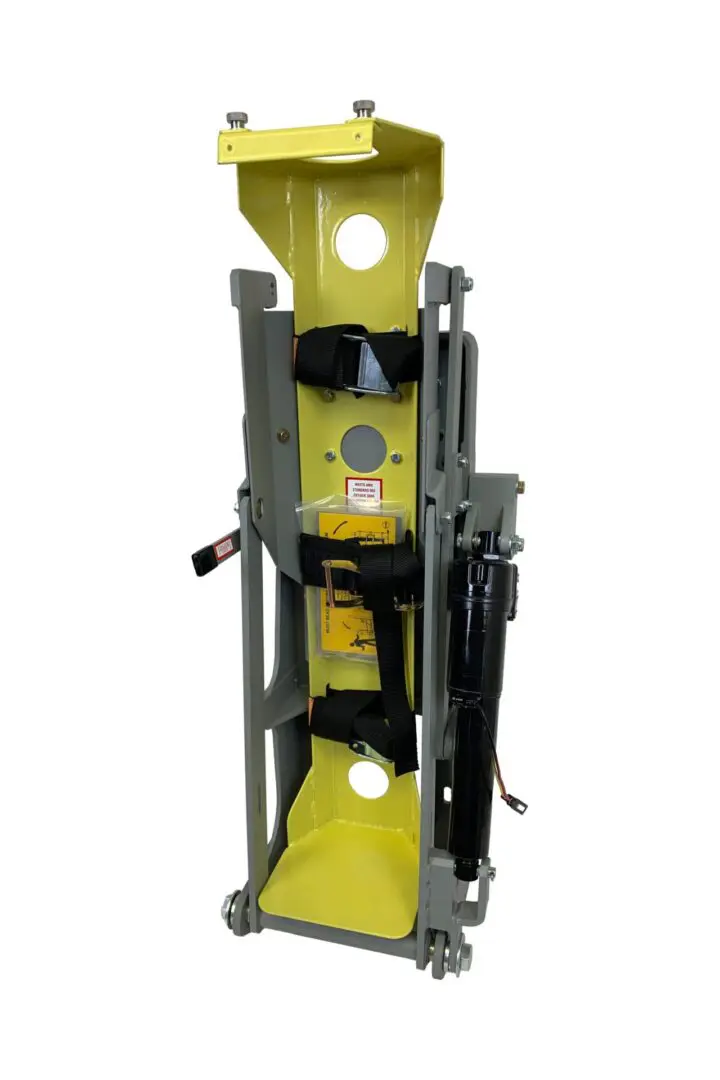

Ziamatic’s new QUIC-RELEASE Oxygen Tank System (OTS) is designed specifically for aluminum “M” cylinders. This OTS lowers cylinders safely and quickly to floor level for easy replacement. It is powered by a single electric actuator meeting the UL-1500 Standard for Ignition Protection. The safety latch holds the unit firmly in place. The operating latch is on the opposite side of the motor.

The unit requires a 12 VDC with 20 amp circuit and is equipped with a back-driving actuator that prevents unit from holding weight of the apparatus if air suspension is lowered.

AVAILABLE MODELS:

QR-OTS-MR-A – System for “M” cylinder – motor on right – 93 lbs.

QR-OTS-ML-A – System for “M” cylinder – motor on left – 93 lbs.

QR-OTS-MR-A-HHS – System with hand-held switch – 94.4 lbs.

QR-OTS-ML-A-HHS – System with hand-held switch – 94.4 lbs.

QR-HSS/B – Hand-held switch with bracket – 1.4 lbs.

***PLEASE NOTE: This unit is designed for use with the standard 36-3/8″ L aluminum “M” cylinder
only. It will not work with “M” cylinders shorter or longer than 36-3/8″ L and it will not
work with “G” or “H” cylinders.
