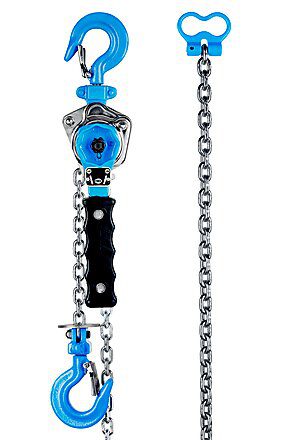

Tractel bravo™ Lever Chain Hoist – 1/4 Ton / 500 lbs

$246.40

The bravo™ lever hoist is ideal for industrial and building/civil engineering applications. It is designed for pulling, lifting, positioning and adjusting loads in workshops and/or building sites.

Suitable for a wide variety of lifting, pulling and tensioning applications: for lifting and lowering loads in manufacturing and assembly operations, removing engines, rigging and moving loads, applying tension to conveyor.

The bravo™ is a rugged, quality built hoist designed for reliable operations even in the toughest conditions.

BENEFITS

  • Easy operation with simple controls
  • Compact and lightweight
  • Excellent weight / capacity / size ratio
  • Minimum effort to lift maximum load

Available on backorder

Part Number: 19959
SKU: 19959 Categories: , , , , , , , , Brand:

Description

FEATURES

  • Working Load Limit: 500 lbs. / 1/4 Ton
  • 5 Feet Lift Length
  • Load Chain Size : 4 x 12 mm
  • Number of Falls: 1
  • Effort on lever at capacity: 57 lbs. / 26 kg
  • 360° swivel hook with overload opening indicators
  • Removable large-opening swivel hook with large latch marked with working load limit of the hoist
  • Five sprocket load wheel with closed bearings
  • Free wheel safety device activates braking mechanism when load applied in neutral position
  • The hoist and its components are made of high tensile alloy steel
  • Anti-corrosion treated lifting and handling line
  • Operates in temperatures between -40 and 140°F (-40 and 60°C)
  • Wind-through chain system for fast hook positioning
  • Automatic brake with double ratchet

STANDARDS

  • Meets or exceeds ANSI/ASME B30.21C, Manually Lever-Operated Hoist code.
  • Load chain manufactured in accordance with ISO T

Additional information

Brand

Tractel
