Titan SDML-1000D-XLT Motorcycle Lift

$2,085.25

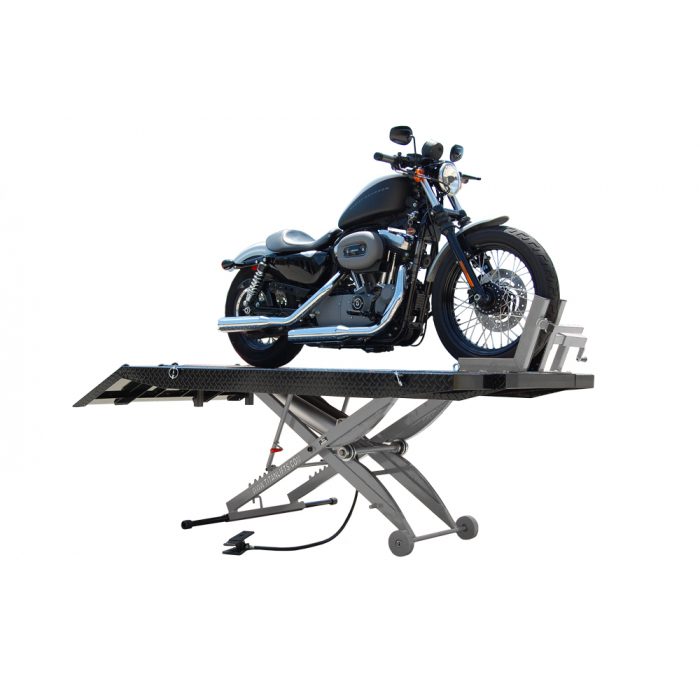

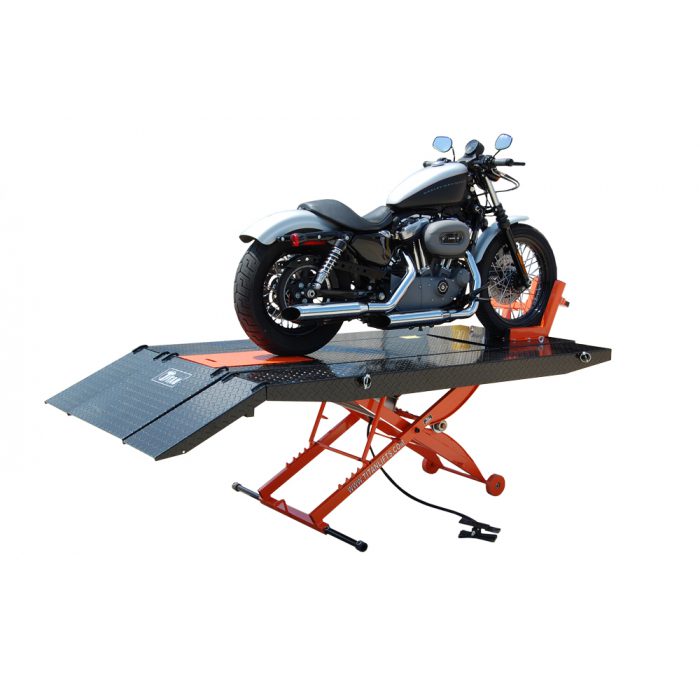

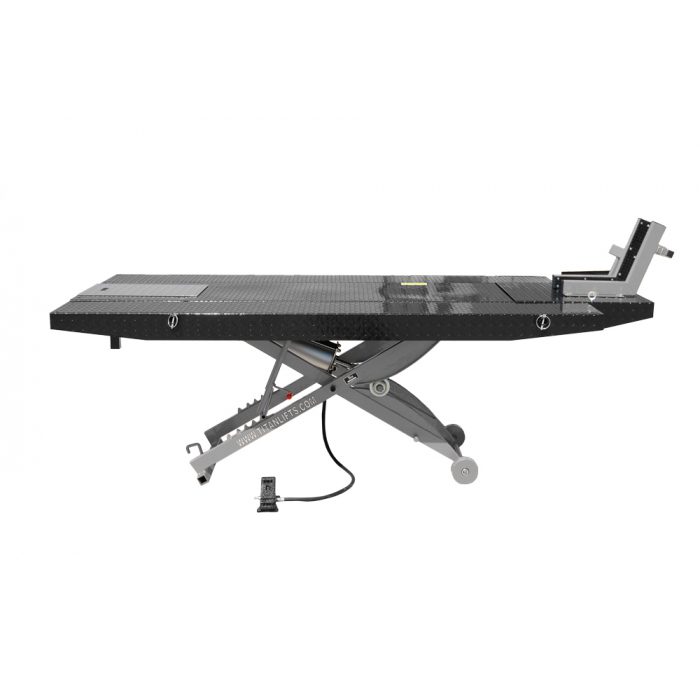

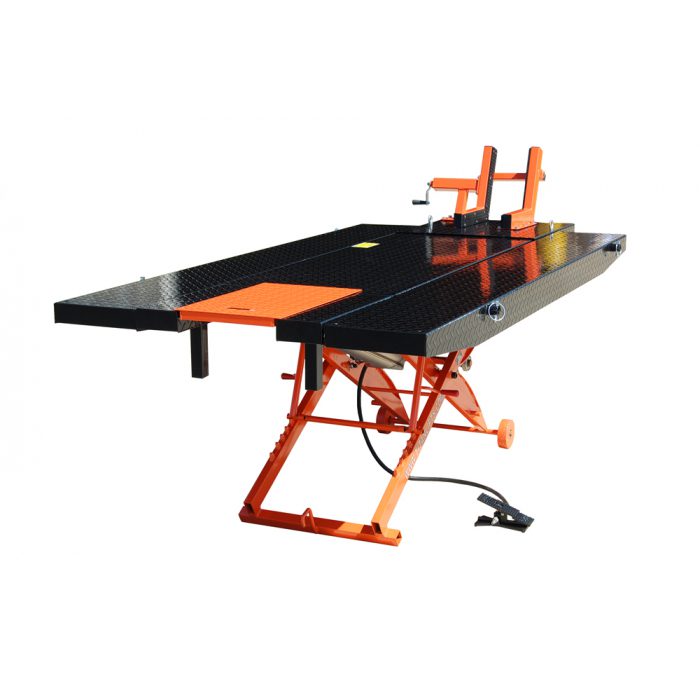

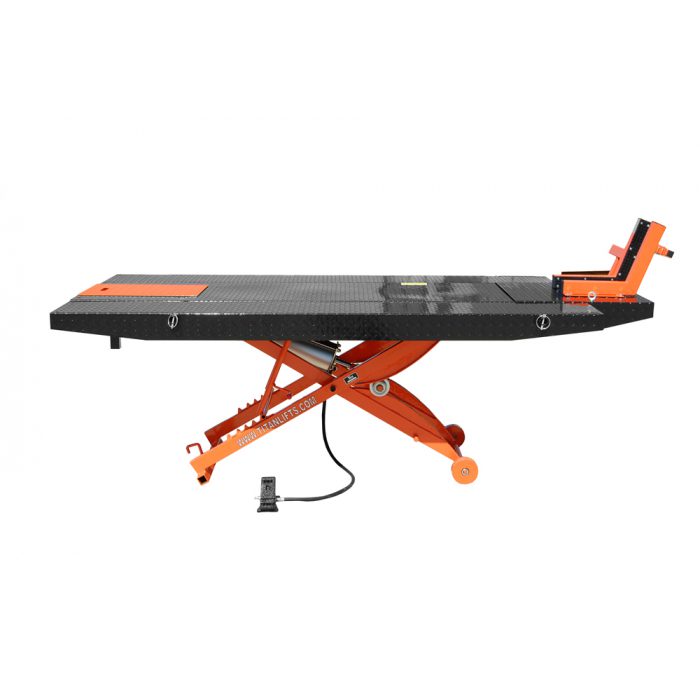

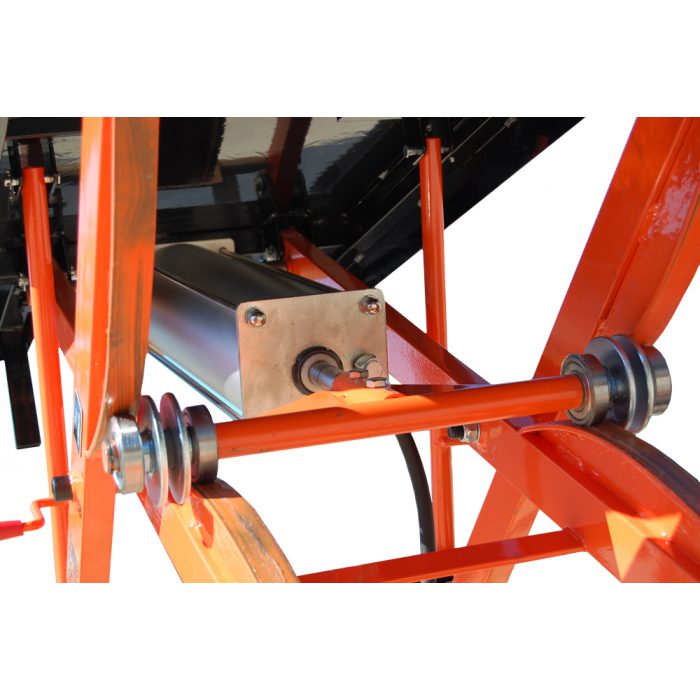

The Titan 1000D-XLT comes fully equipped with front tire vise, front extension and side extensions which gives it a large enough platform to work on everything from motorcycles and ATVs to jet skis and snowmobiles. This heavy-duty diamond plated lift can handle up to 1,000 pounds with its 7″ air powered cylinder which raises the extra-large platform up to 33″. Choose between two different powder coating color schemes of Black & Grey or Black & Orange.

Contact us to Purchase


Part Number:
SKU: SDML-1000D-XLT Categories: , , , , , Brand:

Description

Includes

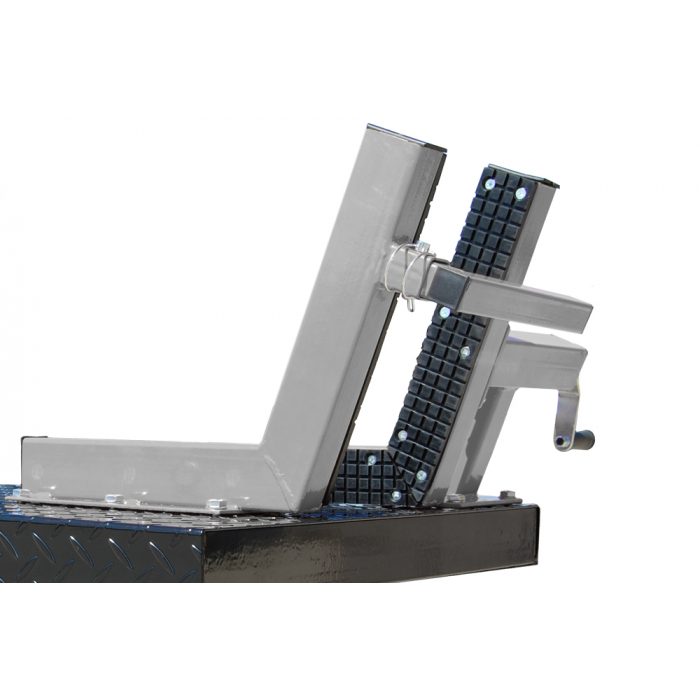

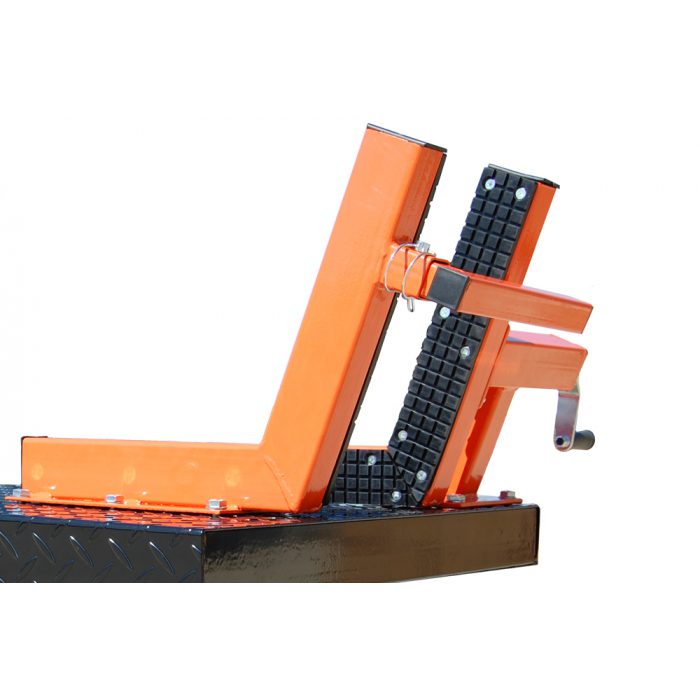

  • Front Wheel Vise
  • Multi-Positional Front Table Extension

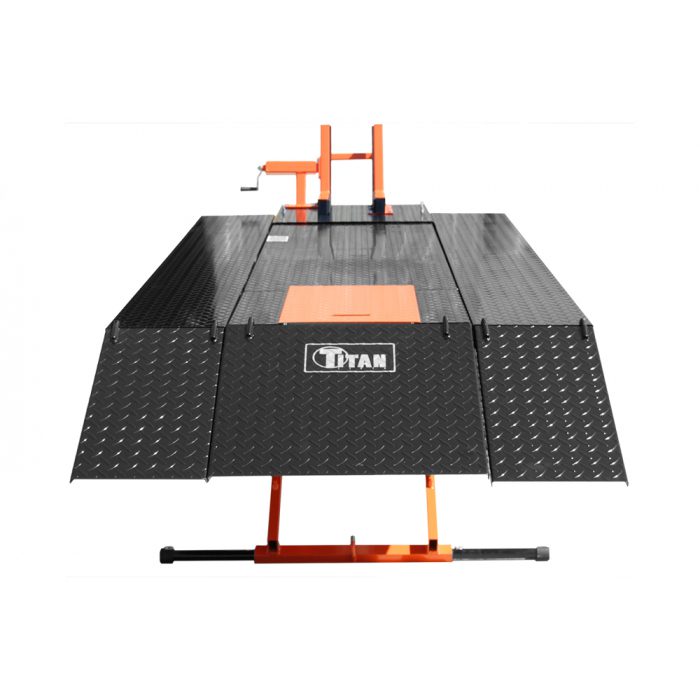

  • Side Extensions
  • Extended Ramp
  • Stabilizer Bar
  • Standard Rear Wheel Drop Out
  • Roller Plate Drop Out
  • Detachable Ramps
  • Air Powered Lift Controls

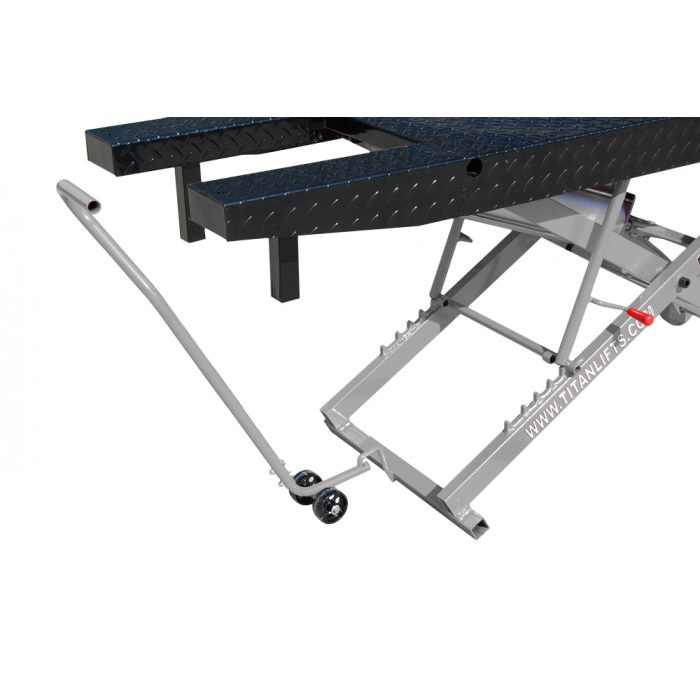

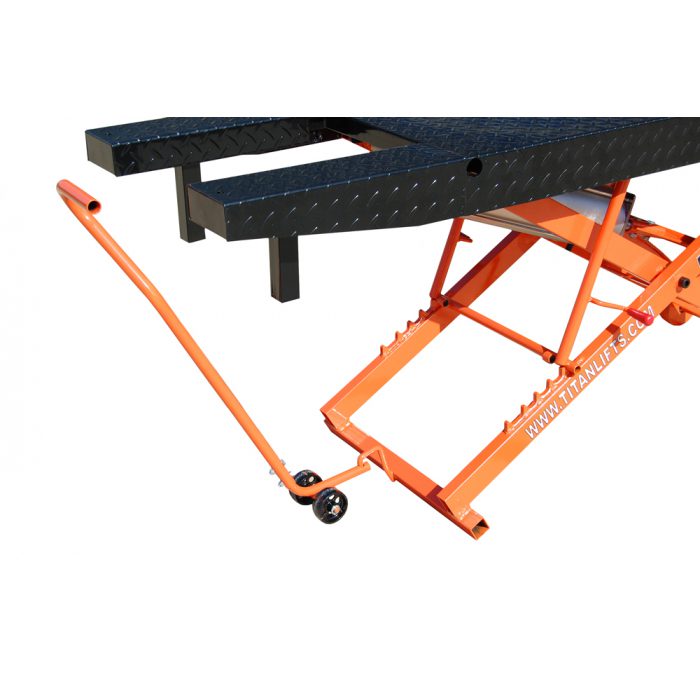

  • Two Wheeled Dolly

Locking Heights

Lock Position 1 25.25″ Lock Position 4 30.25″
Lock Position 2 27.25″ Lock Position 5 31.75″
Lock Position 3 28.75″

Dimensions

Length w/Front Extension (Position 1) 99″
Length w/Front Extension (Position 1) & Ramp 120″
Length w/Front Extension (Position 2) 94.5″
Length w/Front Extension (Position 2) & Ramp 114.5″
Length w/Front Extension (Position 3) 89.5″
Length w/Front Extension (Position 3) & Ramp 109.5″

Specifications

Front Extension 24.5″ x 23.75″
Side Extensions (each) 11.75″ x 87.5″
Table Length 87.5″ – 99″
Table Width 24″ or 48″
Lowered Height 8″
Rise Height 33″
Lifting Capacity 1,000 lb
Power Type Air Only
Power Spec 90 – 110 PSI

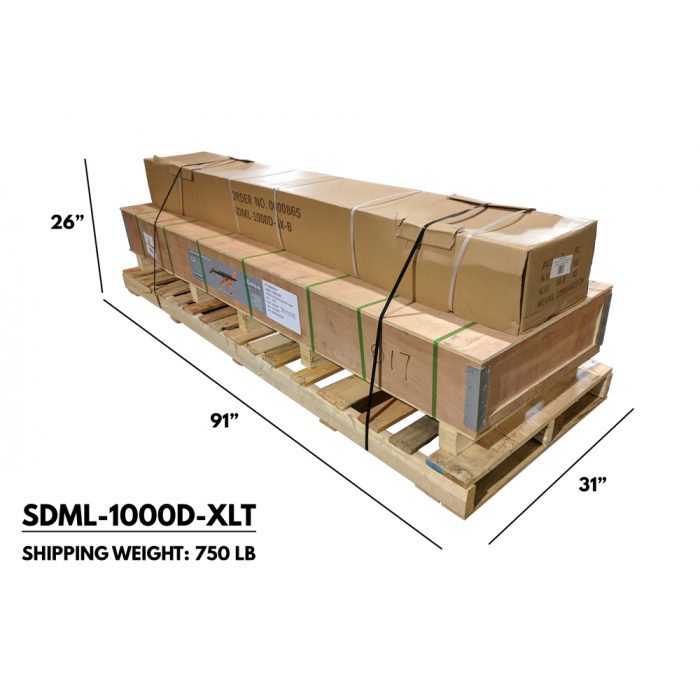

Shipping

Shipping Length 91″
Shipping Width 27″
Shipping Height 23″
Shipping Weight 750 lb

Additional information

Weight 750 lbs
Dimensions 91 × 27 × 23 in
Color

Black/Gray, Black/Orange
Availability

Brand

Titan Lifts
