Description
Let’s take a look at some of the top-tier features of this lift:

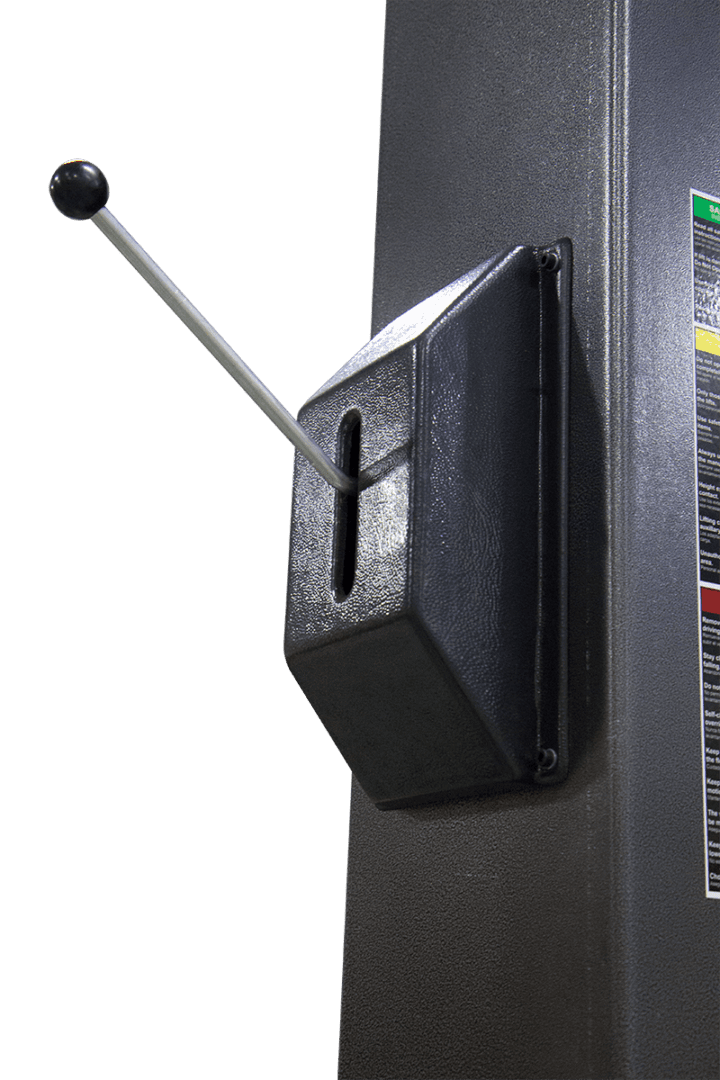

- Single-Point Lock Release System
- 3” Diameter Hydraulic Cylinders
- Reinforced Carriages

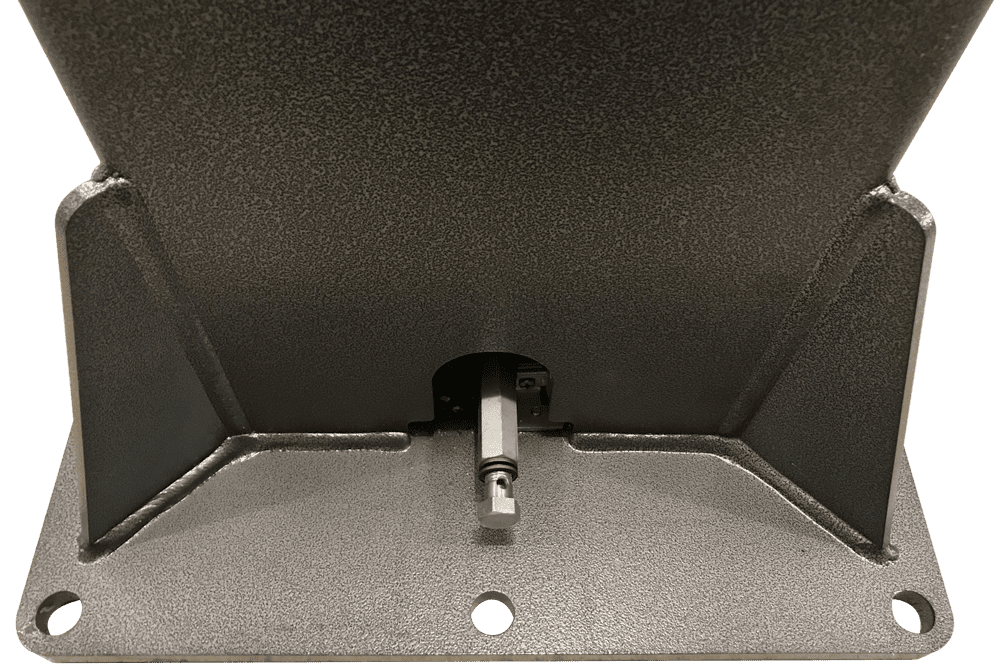

- One-Piece Column Design
- Asymmetric Arms

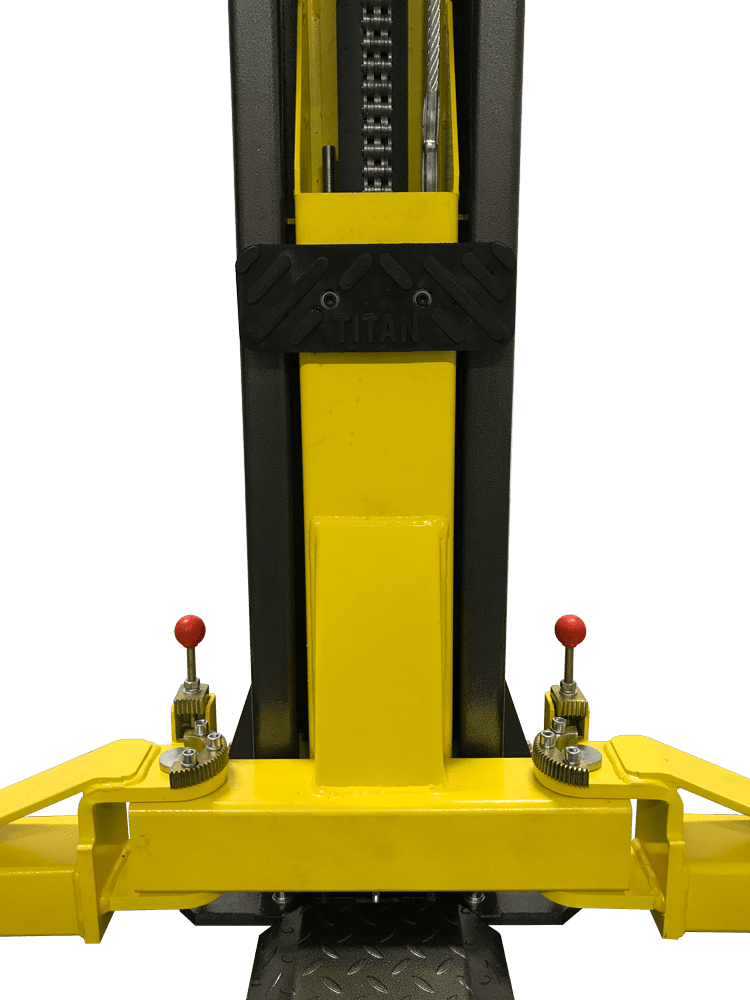

- Serviceable Arm Lock Gears
- Self-locking Arm Restraint Pins
- Extra Large Door Guard Bumper Pads
- High-Durometer Rubber Lifting Pads

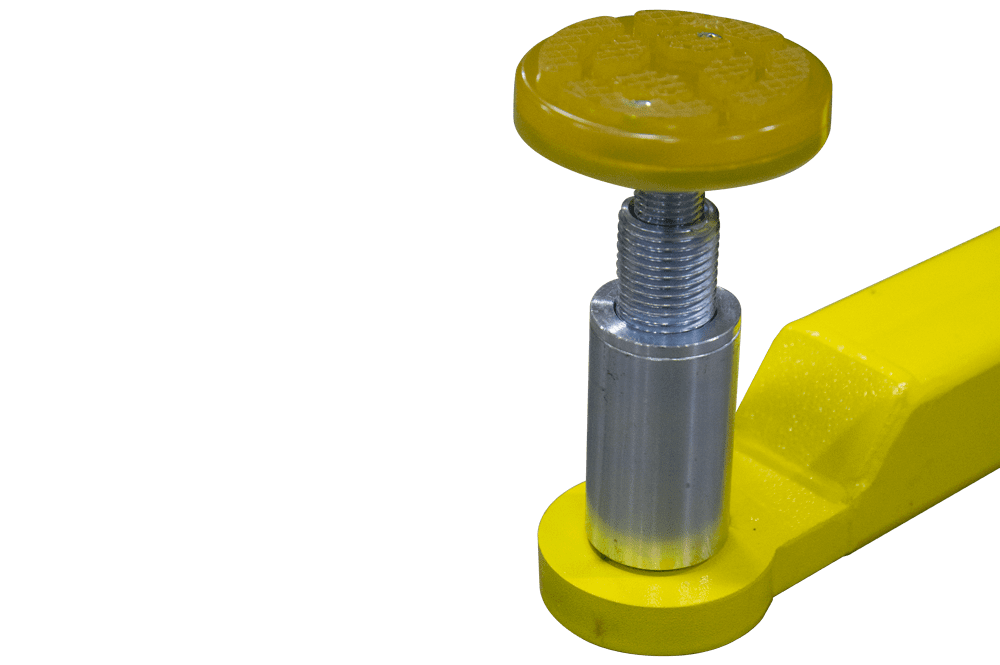

- Threaded Pad Mounts
- (4) 4” Stackable Pad Extensions
- Toe Guards For Each Lifting Arm
- Aircraft Quality 3/8” Diameter Steel Cables
- Multi-Ply Steel Braided Hydraulic Hoses
- Oversized 4-1/2” Cable Pulleys
- Serviceable Cylinder Pulley Bearings (grease fitting in shaft)
- Aluminum Self-Cooling Continuous-Duty Electric 220V Motor
- (10) 3/4” Concrete Wedge Anchor Bolt Kit
| Shipping Length | 114 |
|---|---|
| Shipping Width | 20 |
| Shipping Height | 44 |
| Lifting Capacity | 9,000 lb |
| Lifting Speed | 40 – 60 sec |
| Width | 134.75″ |
| Column Height | 111.25″ *Carriage lock ladder will extend 11″ above top of column when raised to max height.* |
| Pad Height Min | 4″ |
| Pad Height Max | 79″ |
| Width Between Columns | 112.25″ |
| Drive Thru Clearance | 103.25″ |
| Concrete Spec Minimum | 4″ @ 3000PSI |
