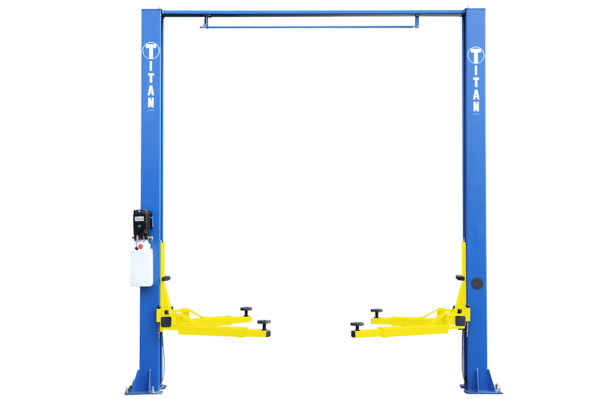

Titan HD2P-9000AC 2-Post Lift


The Titan 9,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you’d expect from a quality lift. They come in a durable scratch resistant Cobalt Blue powder-coated finish with bright yellow arms for safety.

Contact us to Purchase

Part Number: HD2P-9000AC
Categories: ,


The Titan 9,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 4 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.


  • Commercial Grade
  • 9,000lb. Lifting Capacity
  • Asymmetric Arm Design
  • Rubber Door Guards
  • Padded Overhead Safety Shut-off Bar
  • Dual-Point Safety Release
  • Durable Powder-coated Finish
  • Low-profile Lifting Arms equipped with Automatic Arm Restraints
  • Dual 3” Cylinders with Low Friction Chain Rollers
  • Threaded Lifting Pads
  • Stackable Truck Adapters
  • Space-saving Power Unit Mounting Bracket
  • Sleek Internal Hose Routing with Integrated Hose Guards
  • Anchor Bolt Kit Included
  • 1 Year Electric/Hydraulic Parts Warranty
  • 5 Year Structural Parts Warranty


Warranty 1 Year Parts / 5 Year Structural
Lifting Capacity 9,000 lb
Power Unit 220V
Amp Draw 15 – 26 amp
Lifting Speed 45 sec
Width 137.80″
Height 142.95″
Width Between Columns 113.62″
Drive Thru Clearance 103.98″
Lifting Height 4.65″ – 72.84″
Concrete Spec Minimum 4″ @ 3000PS

Additional information

Weight 1380 lbs
Dimensions 145 × 19 × 44 in
