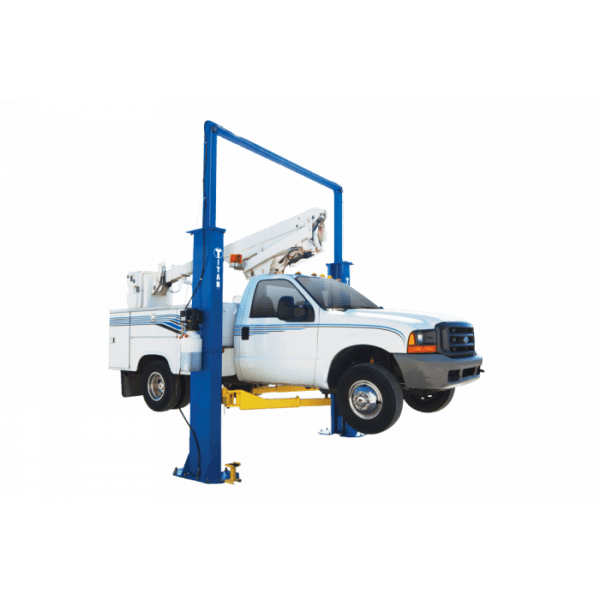

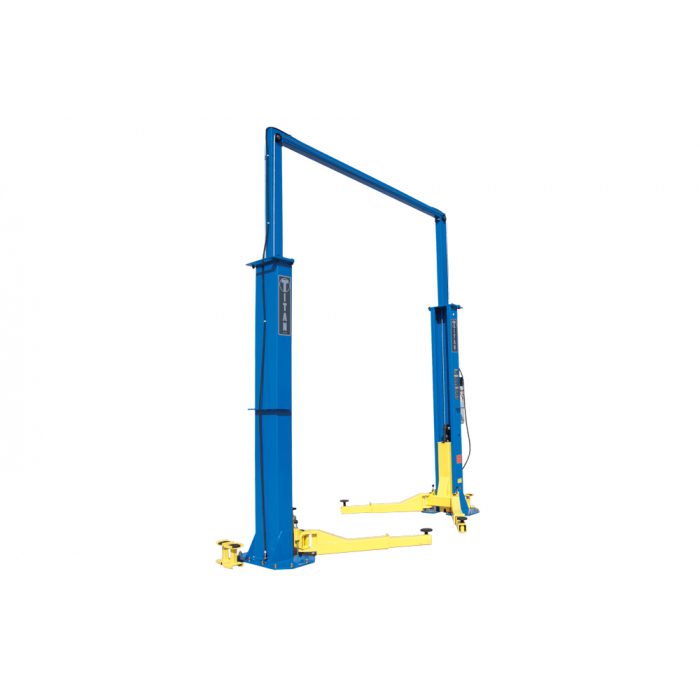

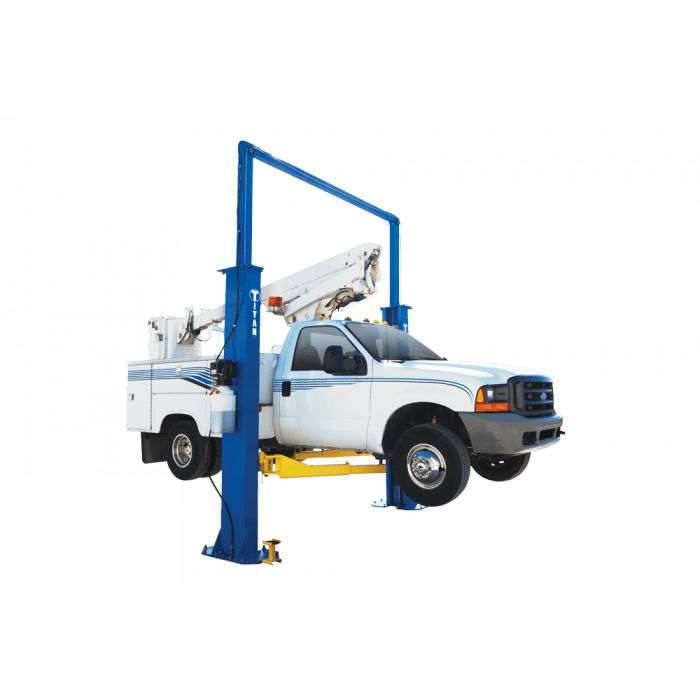

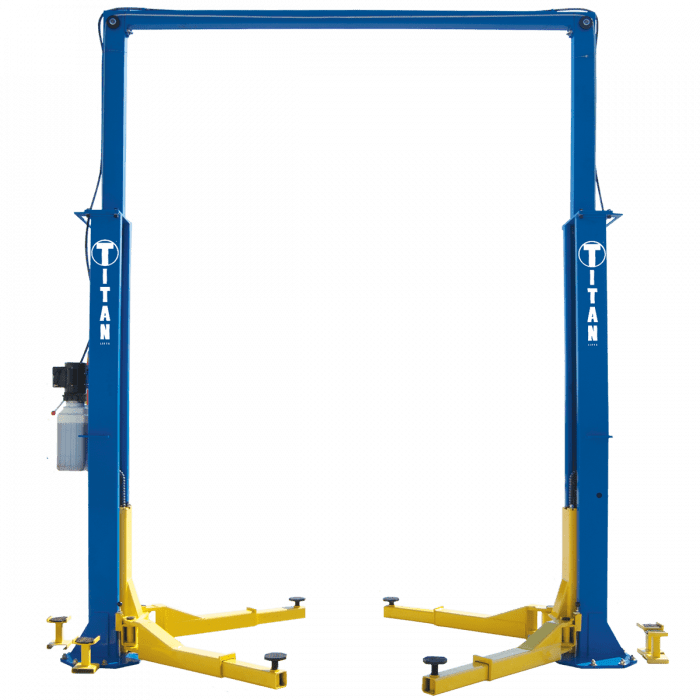

Titan HD2P-15000C 2-Post Lift

$8,900.55

A Texas style two post lift with 15,000 lb. lifting capacity, large twin 3” cylinders with low friction chain rollers, and a “big foot” base plate for extra stability.

The Titan 15,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you’d expect from a quality lift. They come in a durable scratch resistant Cobalt Blue powder-coated finish with bright yellow arms for safety.

The Titan 15,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 6 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.

Contact us to Purchase

Part Number: HD2P-15000C

Description

Features

  • 15,000 lb. lifting capacity
  • Low profile automatic arm restraints
  • Dual 3” diameter cylinders with low friction chain rollers
  • “Big Foot” base plates for stability
  • Electrical override automatic safety shut-off on clear-floor models
  • FREE mounting hardware
  • Durable powder-coated finish
  • 1 Year Electric/Hydraulic Warranty
  • 5 Year Structural Warranty

Specifications

Overall Height 182″
Overall Width 148.375″
Width Between Post 120.75″
Drive-Thru 109.5″
Min Pad Height 5″
Max Pad Height 76.5″
Lifting Speed 45 sec
Lifting Capacity 15,000 lb
Concrete Spec Min 6″ @ 3,000 PSI
Power Unit 220V-1PH-60HZ-20AMP

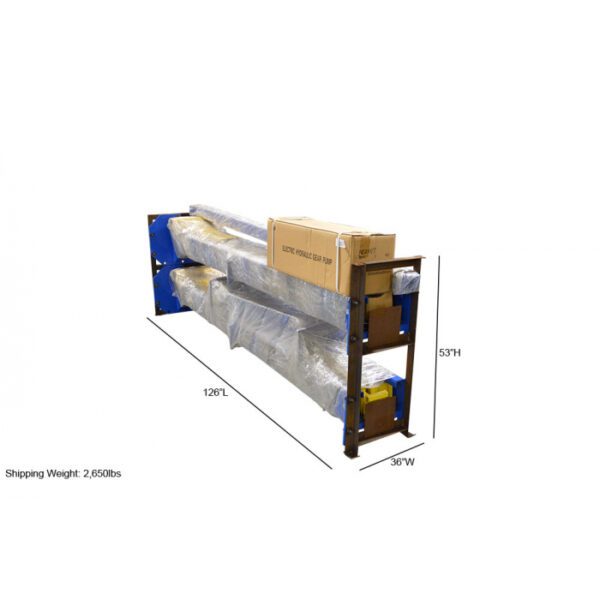

Shipping

Shipping Length 126″
Shipping Width 36″
Shipping Height 53″
Shipping Weight 2,650 lb

Additional information

Weight 2650 lbs
Dimensions 126 × 36 × 53 in
Brand

Availability
