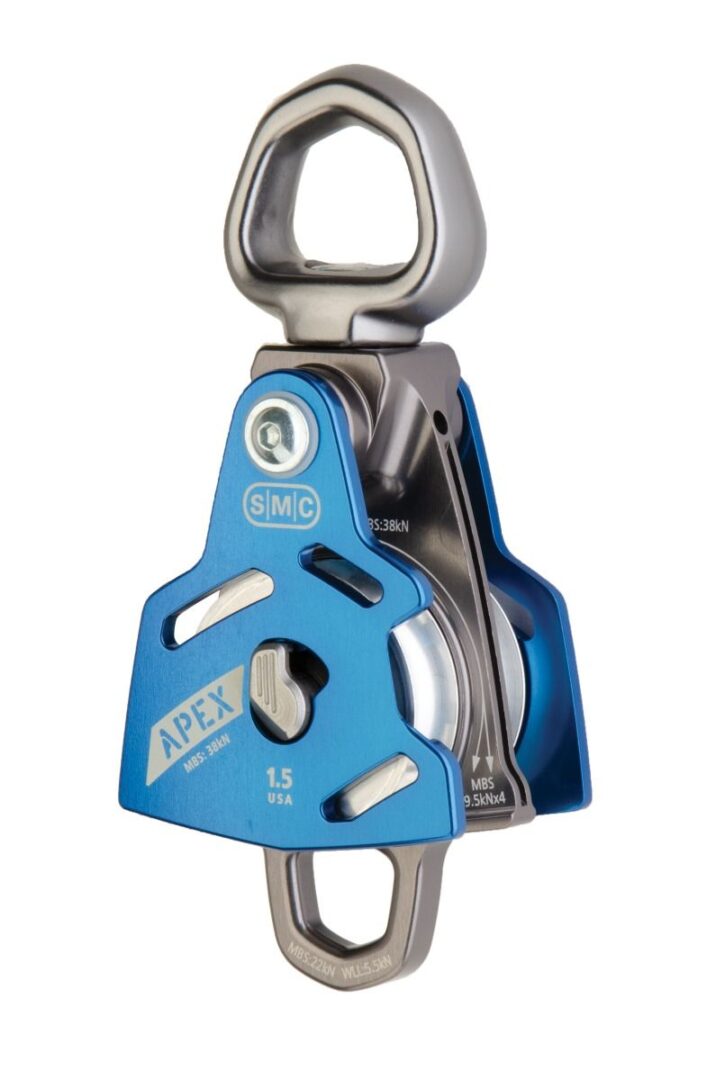

SMC APEX 1.5 Double Swivel Pulley

The Apex Swivel Pulley offers easy one-handed operation and unmatched security. The Apex is a mid-line attachable pulley that secures the rope using a low-profile, patented, triple-action lock mechanism that can easily be opened with one hand. Three distinct actions operate this lock: pivot the lock button, depress it, then swing open the side plate. Simply closing the side plate re-engages the lock mechanism and solidly secures the rope. The operation is intuitive and ergonomic. The Apex features symmetrical side-plates optimized for integration with prusik-based progress capture systems. This streamlines system setup and minimizes the possibility of mis-rigging. The beautifully forged swivel eye was designed to accommodate up to three carabiners so you can use the Apex in virtually any rigging scenario. It is also soft-goods-compatible for situations where you want to eliminate the carabiner altogether. The swivel eyes versatility allows it to excel in various rigging configurations. The U.S.-made Apex Pulley line represents the new standard for rescue, rope access, or arborism.

• Axle: Stainless Steel
• Material: High Quality Aluminum
• Dimensions: 6.68×2.89×2.27 (171mm x 73.66m x 57.66mm)
• Weight: 16.9oz / 478 grams
• Max. Rope: 1/2 (13mm)
• Sheave: 1.5 Aluminum
• 3 Sigma MBS: 24kN
• NFPA Certified
• Made In USA
