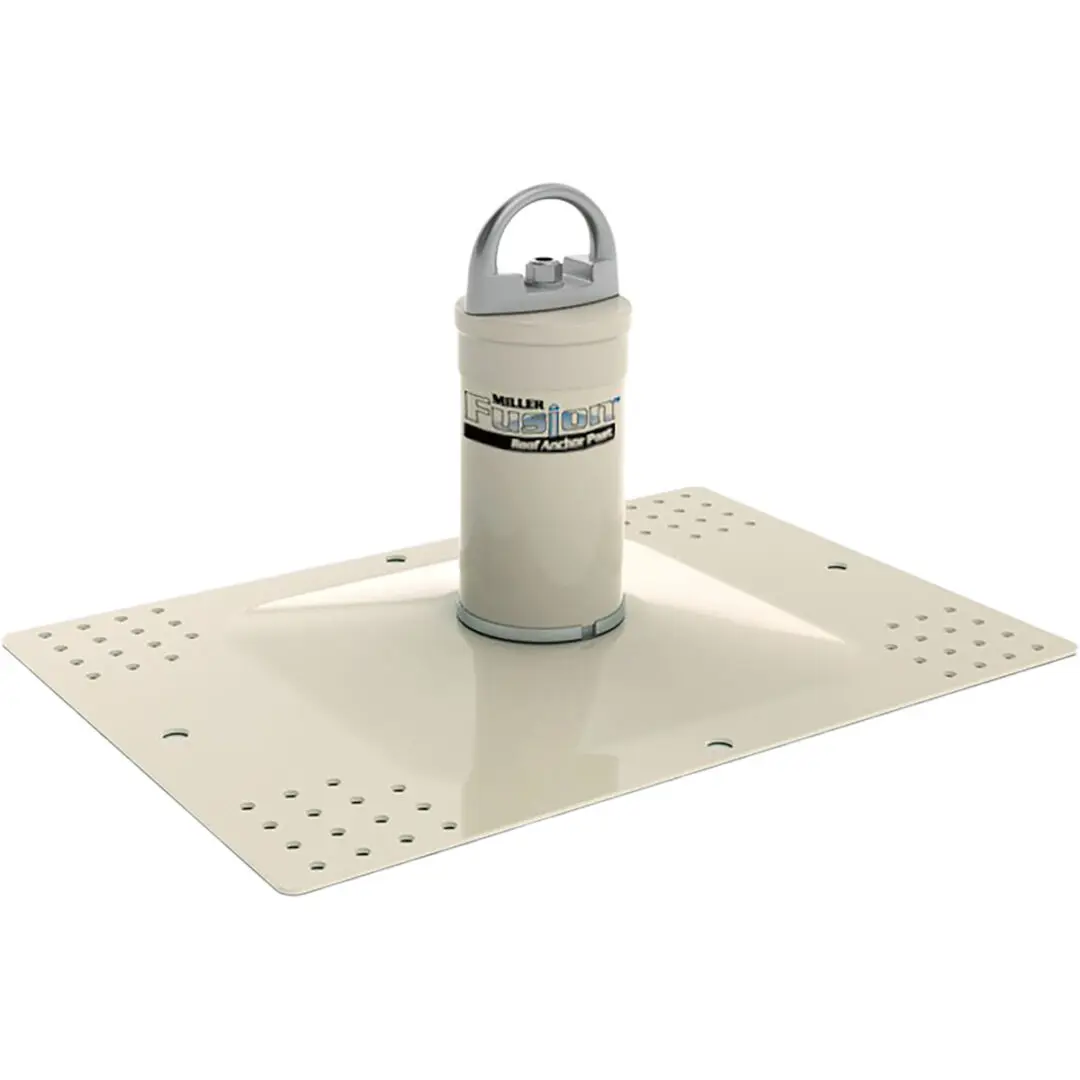

PIP Miller® ShockFusion™ / Fusion™ Multi-Purpose Design Base Plates

Multi-purpose metal sheathing, wood and concrete roofing (no hardware included).

• Includes post with base, hardware selection is based on the application
• Metal sheathing w/minimum thickness of 24 gauge (0.024 in. [0.61 mm])
• Trapezoidal spacing of 8 in. (203 mm) to 20 in. (508 mm) in one-inch (25.4 mm) increments
• Plywood with minimum thickness of 5/8-in. (15.9 mm) CDX
• Concrete decking with minimum thickness of 6.5 in. (165 mm) & minimum concrete compressive strength of 3000 PSI (20.7 MPa)
