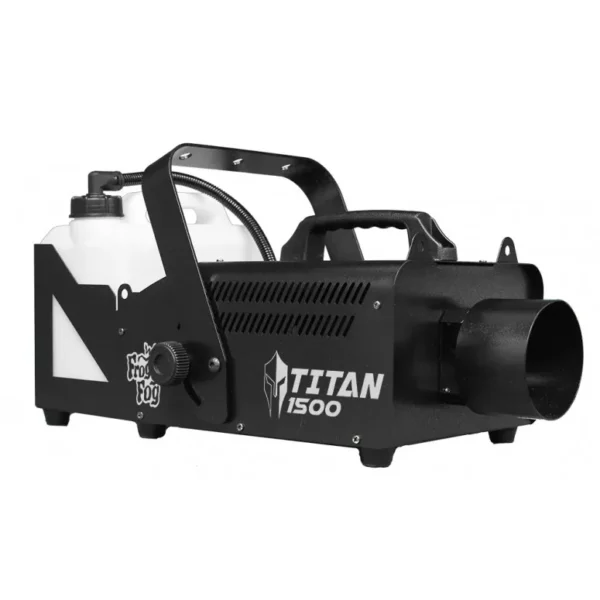

Froggy’s Fog Titan 1500 DMX Fog Machine

$499.99

The Titan 1500DMX is a powerful 1550W Fog Machine with over 25,000CFM. The 1500DMX features both 3 and 5 pin DMX, 4 Button Control Panel with LED SSD and timer functions. The Oversized Heater Core increases run times, Quick Ready Fog Technology (QRFT) has you ready to fog in less than 10 seconds after full cycle and it is ready to fog, and Advanced Low Fluid Sensing shuts down the machine when you run out of fluid to protect the heater core.

Part Number: FFM‐TITAN‐1500‐DMX

Description

Titan fog machines from Froggy’s Fog are great for when you need a lot of fog fast. Upgraded from the Titan 1200, the 1500 DMX includes more control and an increase from 20,000 CFM to 25,000 CFM. Whether you make films, work in the haunted attraction industry, or want to add atmosphere to you venue; the Titan lineup brings versatility at a reasonable price that is sure to deliver amazing effects across multiple applications.

DMX COMPATIBILITY

The power of DMX control lets you create exactly the types of effect that you want to see! Sync up this Titan machine with all of your other lights, sounds, and effects.

OVERSIZED HEATER CORE FOR INCREASED RUN TIMES

More fog for more time, what’s not to love?

QUICK READY FOG TECHNOLOGY (QRFT) – LESS THAN 10 SECONDS AFTER FULL CYCLE AND IT IS READY TO FOG

Titan machines are ready for action the minute you are!

ADVANCED LOW FLUID SENSING

Don’t worry about your machine running dry, the Titan will let you know when it’s time for more fluid.

TIMER CONTROL INCLUDED (WIRELESS OPTIONAL)

Your Titan machine will supply fog at exactly the moment you need it and for as long as you want it to.

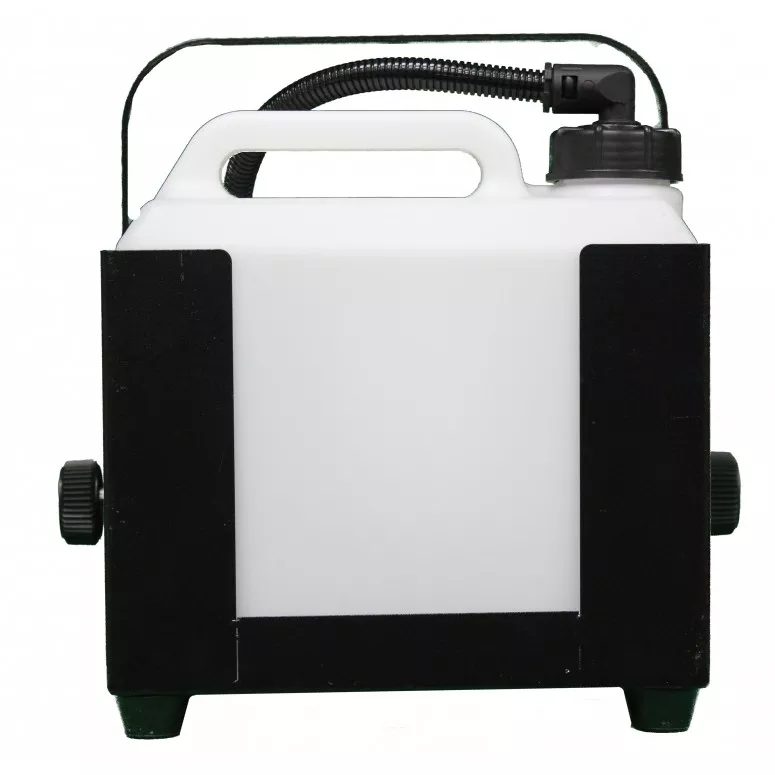

DURABLE 5 LITER FLUID TANK

A large fog liquid container means you can keep the fog rolling longer!

BUILT-IN HANGING BRACKET

Built in mounting hardware allows you to mount the Titan in whatever way is best for your specific application.

ELECTRONICS COMPARTMENT TO KEEP ALL FLUID RELATED COMPONENTS AWAY FROM BOARDS

No need to worry about spills or leaks ruining your electronics!

REMOVABLE FLUID TANK BRACKET FOR TIGHT INSTALL APPLICATIONS

The Titan machine allows maximum flexibility in installation.

RUBBERIZED FEET

The Titan isn’t going to slide around or scratch up important surfaces.

SPECIFICATIONS

Physical
Length: 21.3 in. Box: 25.5 in.
Width: 12 in. Box: 14.4 in.
Height: 11.5 in. Box: 13.6 in.
Net Weight: 23.5 lbs Gross: 28.7 lbs.

Performance
Fluid consumption (100%): 102ml/min
Maximum operating time, maximum output: 49 min
Ready time: 4 Min initial, 10 Sec. Reheat

Control and Programming
Control options: DMX, Wired Remote, Wireless Remote, Timer
Control parameters: Continous or timer-controlled output
Fog Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing

Construction
Housing: Steel and aluminum
Color: Black

Fluid pump: Dual oscillating piston, high pressure
Fluid reservoir: 5L drop-in reservoir
Hanging bracket: Integrated yoke with safety attachment point

Installation
Mounting: Standing or hanging
Orientation: Up to +/-40° from horizontal

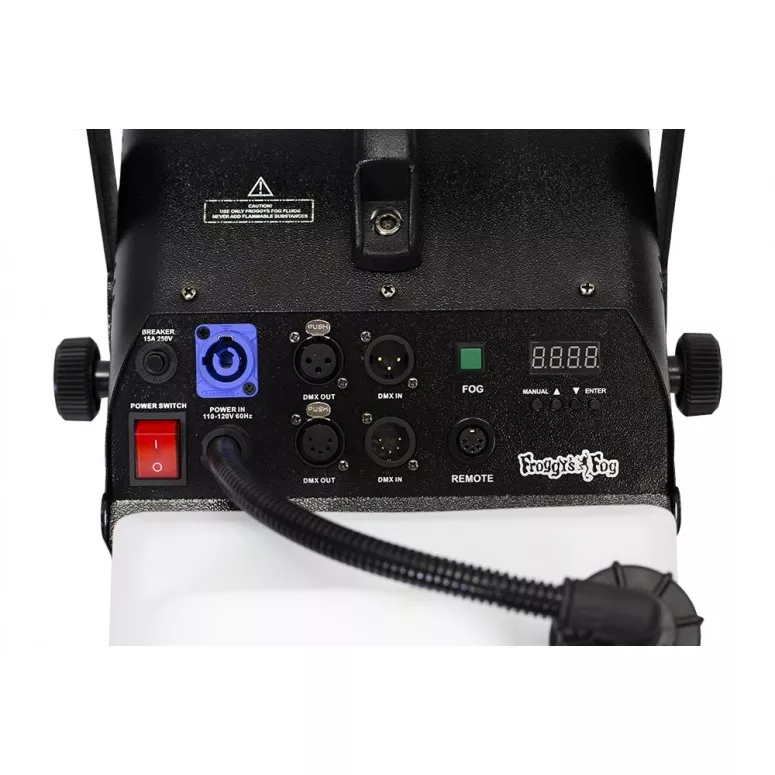

Connections
AC Power: Blue PowerCon
DMX, link mode in/out: 3 and 5-pin locking XLR
Remote control: Froggy’s Timer Remote
Electrical
US Model:AC power: 120 V, 60 Hz
Main fuse: 15A, 150 V
Typical power and current: 1550 W

*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Included Items
Fluid reservoir, 5L Tank
Froggy’s Fog Wired Controller
Power input cable: Blue PowerCon

Accessories
Wired Remote
FFM-RM-WR5 – Wireless Remote (Optional)

Approved fluids*:
Bog Fog

QuikBlast

Backwood Bay

Technofog

Velcocity

*Various sizes available – contact us or see ‘Fluids’ product pages for details
