Froggy’s Fog – Titan 1200 Fog Machine

QUICK READY FOG TECHNOLOGY (QRFT) – LESS THAN 10 SECONDS AFTER FULL CYCLE AND IT IS READY TO FOG

Titan machines are ready for action the minute you are!

ADVANCED LOW FLUID SENSING

Don’t worry about your machine running dry, the Titan will let you know when it’s time for more fluid.

TIMER CONTROL INCLUDED (WIRELESS OPTIONAL)

Your Titan machine will supply fog at exactly the moment you need it and for as long as you want it to.

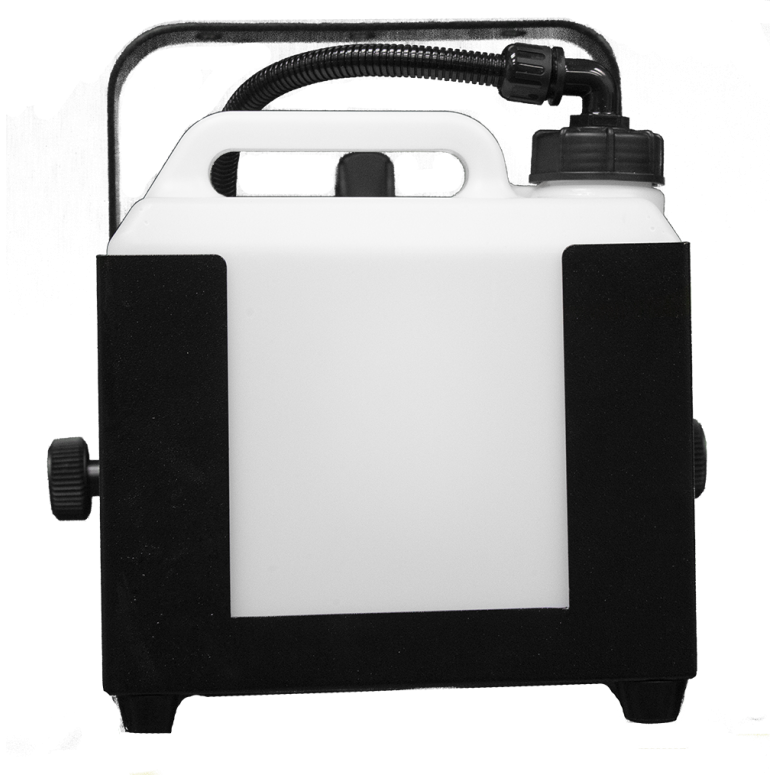

DURABLE 5 LITER FLUID TANK

A large fog liquid container means you can keep the fog rolling longer!

BUILT-IN HANGING BRACKET

Built in mounting hardware allows you to mount the Titan in whatever way is best for your specific application.

ELECTRONICS COMPARTMENT TO KEEP ALL FLUID RELATED COMPONENTS AWAY FROM BOARDS

No need to worry about spills or leaks ruining your electronics!

REMOVABLE FLUID TANK BRACKET FOR TIGHT INSTALL APPLICATIONS

The Titan machine allows maximum flexibility in installation.

RUBBERIZED FEET

The Titan isn’t going to slide around or scratch up important surfaces.

• SPECIFICATIONS

  Physical Length: 21.3 in. Box: 25.5 in. Width: 12 in. Box: 14.4 in. Height: 11.5 in. Box: 13.6 in. Net Weight: 20 lbs. Gross: 25.5 lbs.Performance Fluid consumption (100%): 80ml/min Maximum operating time, maximum output: 62.5 min Ready time: 4 MinControl and Programming Wired Remote, Wireless Remote, Timer Control parameters: Continuous or timer-controlled output Variable output control, 0-100% DMX channels: N/A External fluid control: Fluid sensingConstruction Housing: Steel and aluminum Color: Black Fluid pump: Dual oscillating piston, high pressure Fluid reservoir: 5L drop-in reservoir Remote Control: Integrated Digital Remote with 3 m (9.84 ft.) cable, 3-pin XLR Hanging bracket: Integrated yoke with safety attachment point Installation Mounting: Standing or hanging Orientation: Up to +/-40° from horizontal

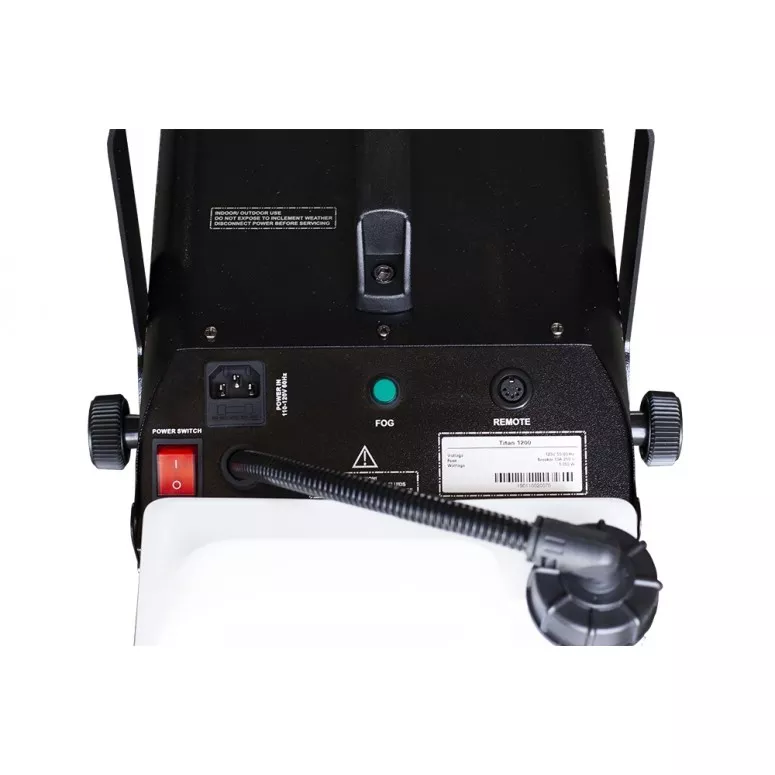

  Connections AC Power: IEC 320 C13 DMX, link mode in/out: 3 and 5-pin locking XLR Remote control: Froggy’s Timer Remote Electrical US Model:AC power: 120 V, 60 Hz Main fuse: 20 AT (slow blow), 250 V Typical power and current:  1300 W*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:Included Items Fluid reservoir, 5L Tank Froggy’s Fog Wired Controller Power input cable, IEC 320 C13Accessories Wired Remote FFM-RM-WR5 – Wireless Remote (Optional) Approved fluids*: Bog Fog QuikBlast Backwood Bay Technofog Velcocity *Various sizes available – contact us or see ‘Fluids’ product pages for details
