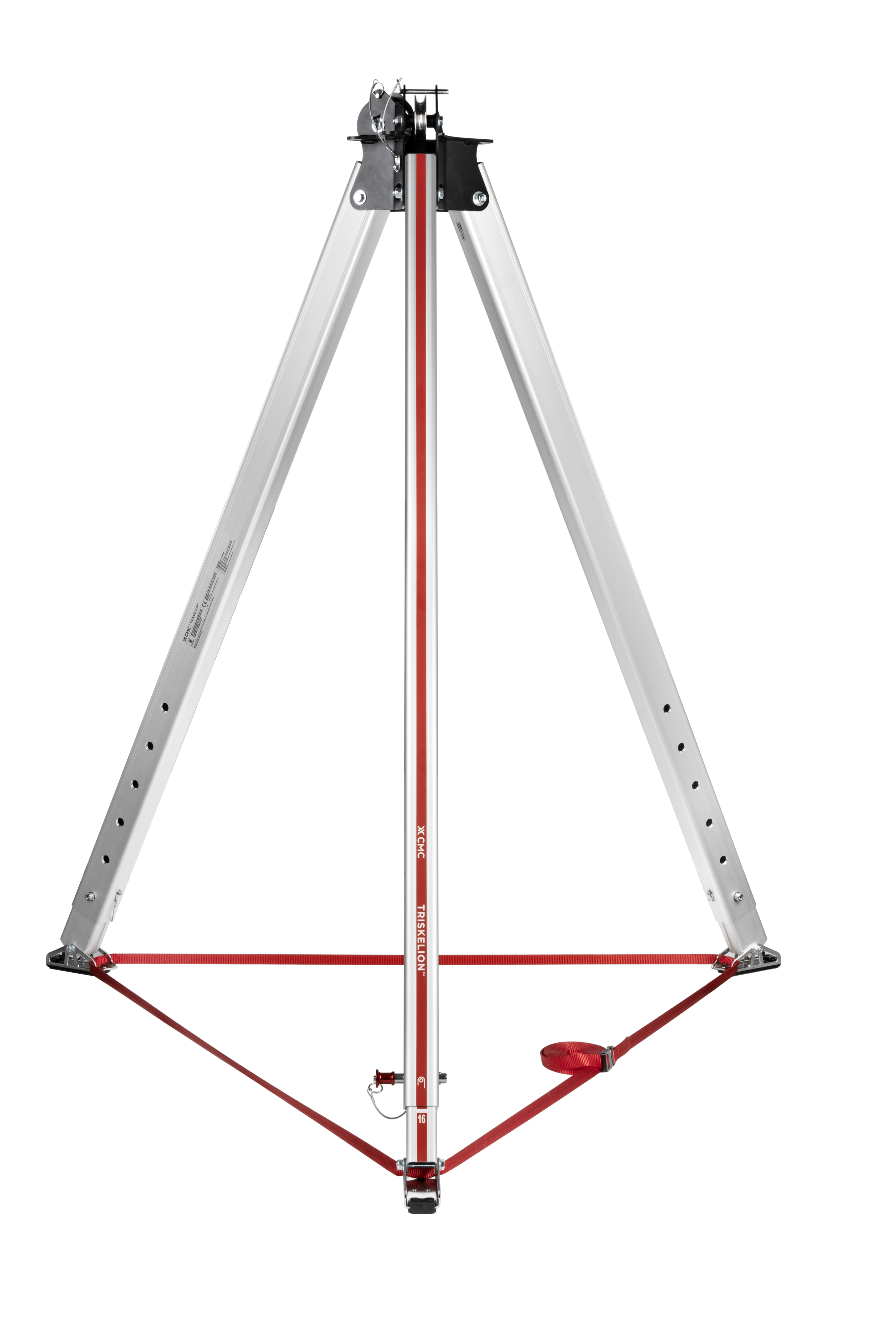

CMC Triskelion™ Tripod

$2,100.00

The CMC Triskelion is the first industrial rescue tripod certified to NFPA standards and the new benchmark for rapid deployment, ease of use, and versatility. With its 5.5-10 ft working height, additional CE certifications, and accessible features, the Triskelion delivers greater safety and efficiency for confined space and industrial rescues.

Part Number: 760001
Categories: , , , ,
Ships from Manufacturer

Description

The Triskelion’s impressive working height range adapts to fit low-clearance areas and extends to haul patients in full-size litters. Unique features include its compatibility with cable and rope up to 13 mm (1/2 in), anchor points for pulley systems, multiple winch mounting options, rectangular legs with built-in stoppers, tethered push pins, high contrast graphics, pivoting feet, quick-connect webbing hobble strap, and reinforced carry bag for single or two-person transport. The Triskelion is also supported by thoughtful accessories that enhance its capabilities and make it even easier to use.

The Triskelion’s modern, user-friendly design increases both the safety and efficiency of each rescue. In the words of CMC School Instructor Doug McElmury, “The Triskelion is easily the most user friendly and practical tripod I have used in my 36 years in technical rescue. From the head to the feet, this well-designed tripod shows that CMC listened to what rescuers wanted and made it a reality”.
Triskelion Features:

Height

10ft max working height allows rescuers to haul patients from a confined space using a harness or litter
5.5ft min working height facilitates access to low-clearance areas

Rigging

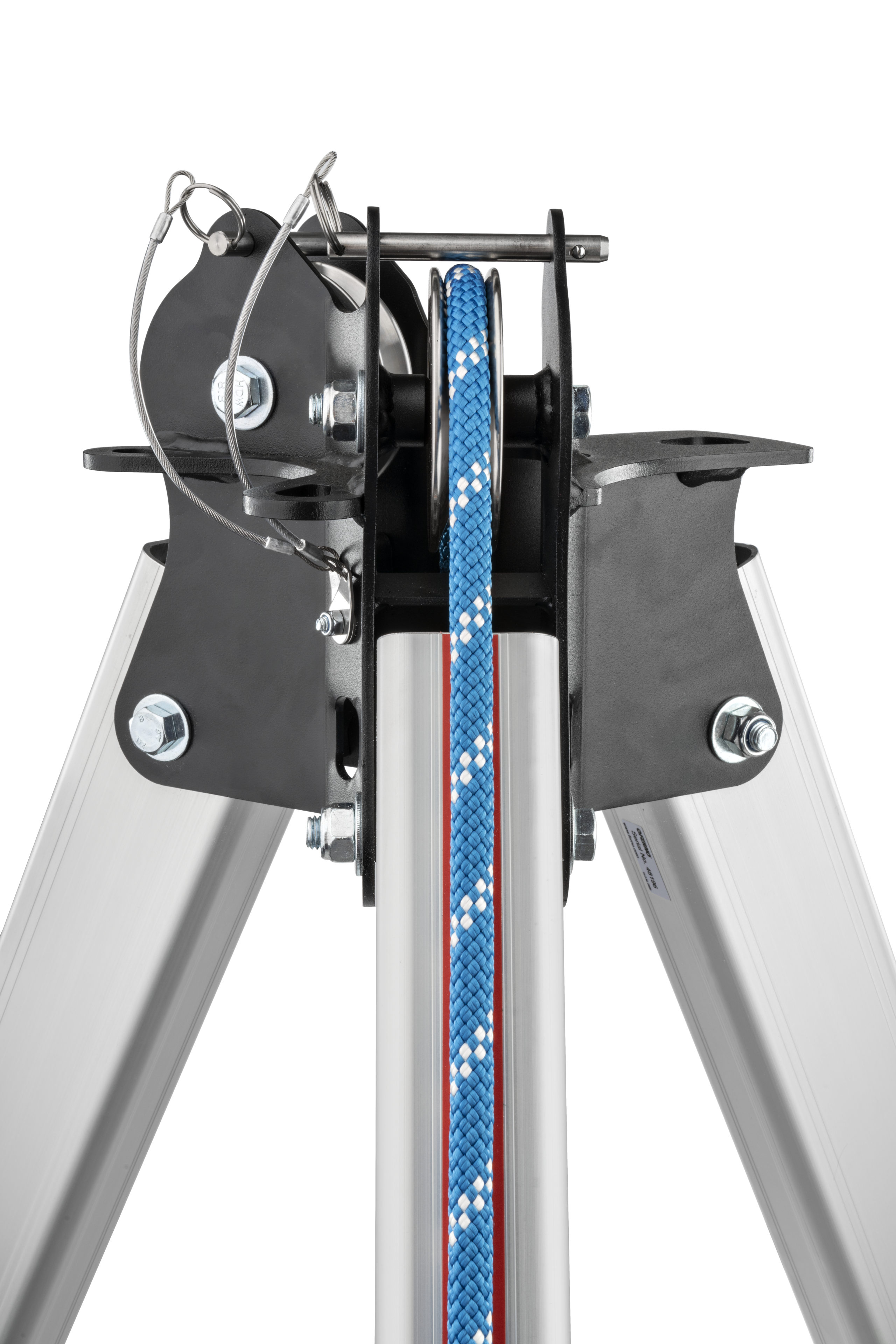

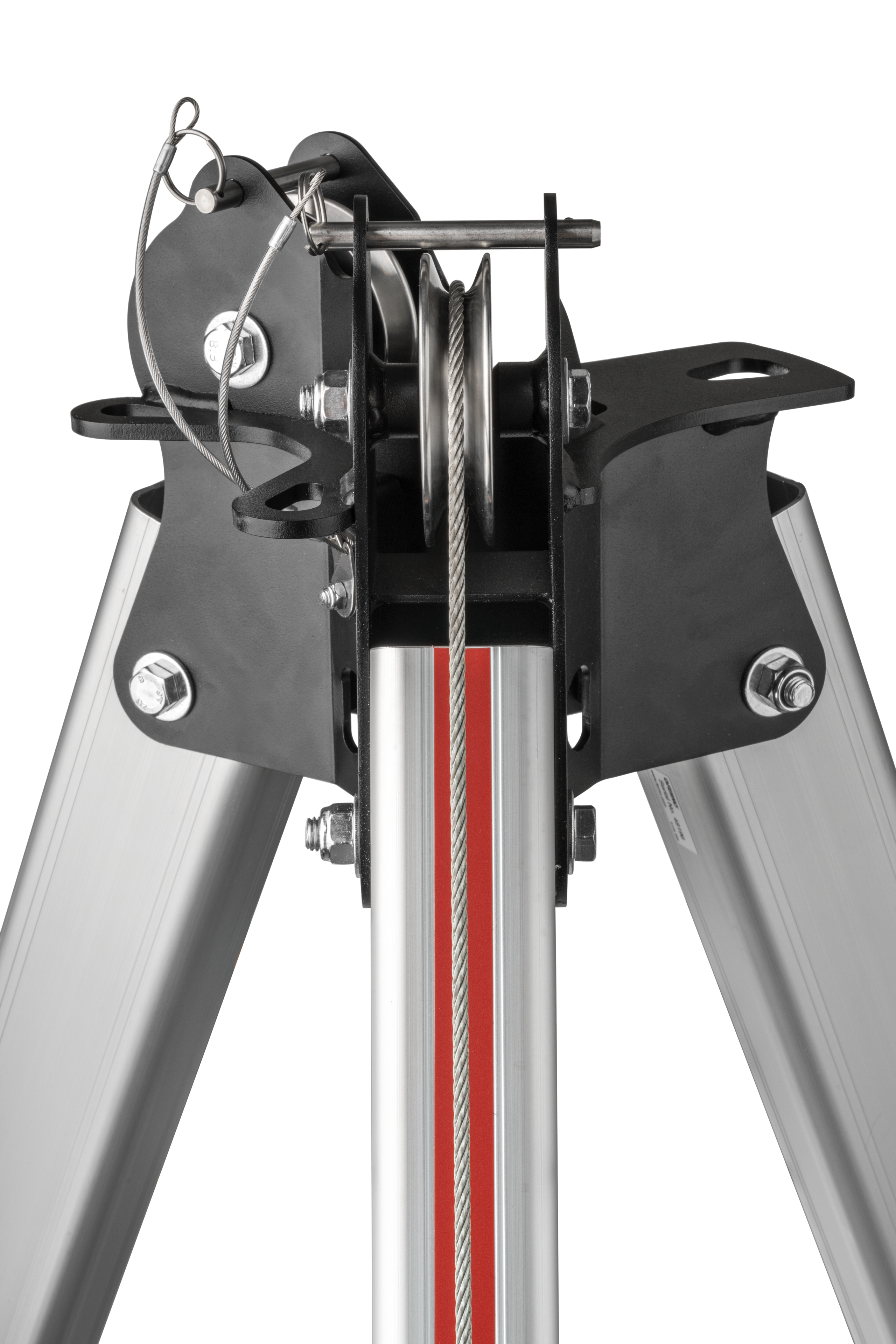

Two head-mounted stainless steel pulleys compatible with cable and rope up to 13 mm (1/2 in)
Three side-plate anchor points ideal for 4:1s like the CSR2 pulley system
Three tie-off points for additional rigging or stabilization
Several mounting options for the Harken LokHead Winch and DBI-Sala Salalift II Winch

Legs

Rectangular shape prevents spinning and properly aligns adjustment holes and tripod feet
Built-in stoppers keep the inner legs from pulling out all the way, allowing full extension without risk of separation
4 in leg height increments enable maximum tripod extension in height constricted areas

Pins

Legs are secured using large, quick-action, ball-lock push pins that are easily handled with gloves
Push pins reassuringly snap into place and robust lanyards keep them from getting lost or separated

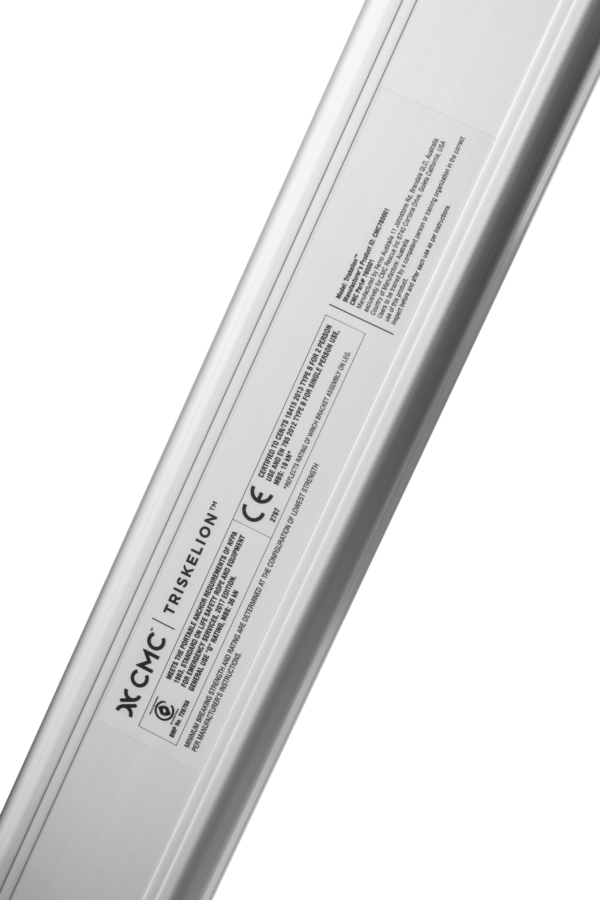

Graphics

High contrast graphics are easy to see in low light
Leg height numbering is clearly communicated in noisy environments
Additional icons guide winch installation to align with head-mounted pulleys

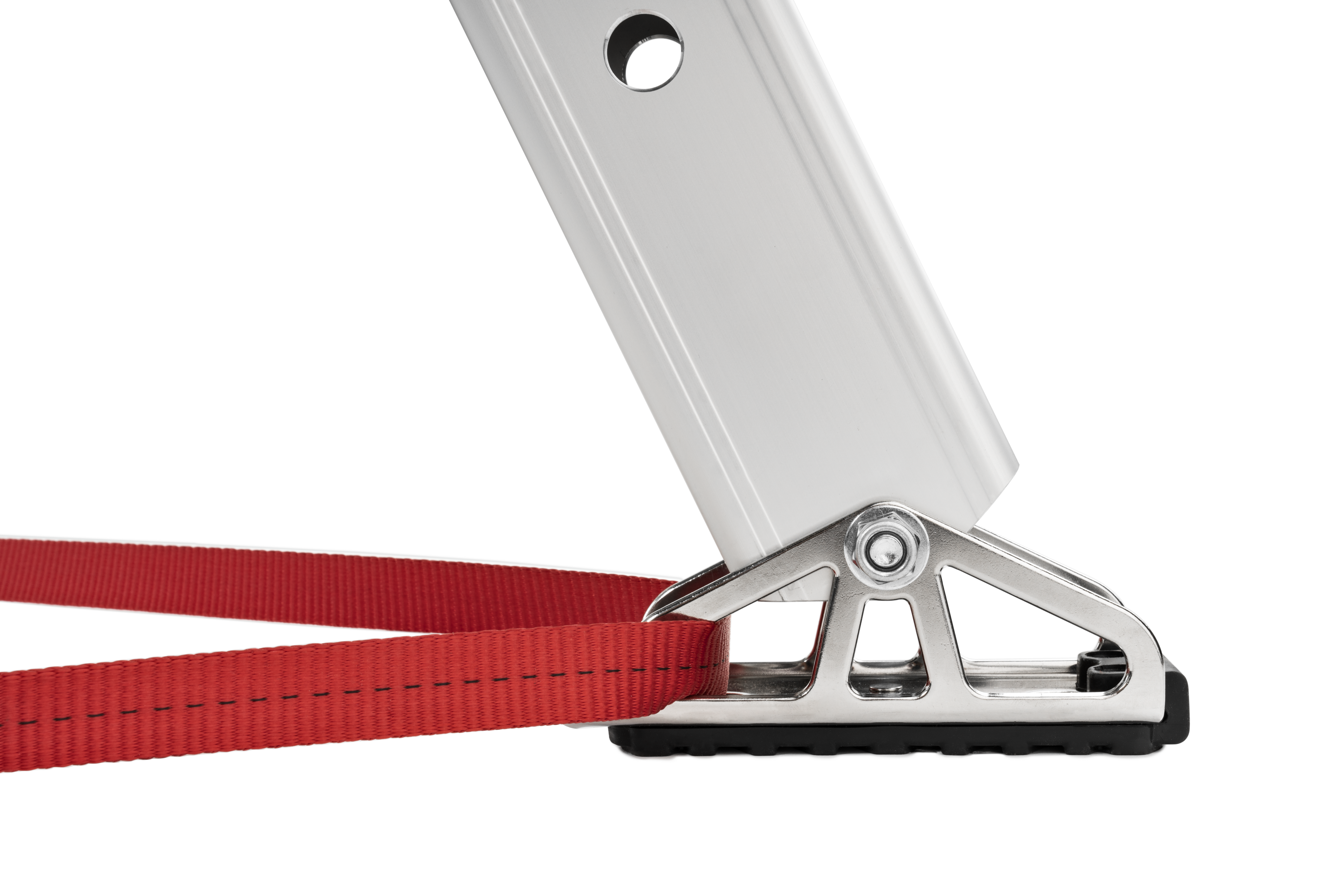

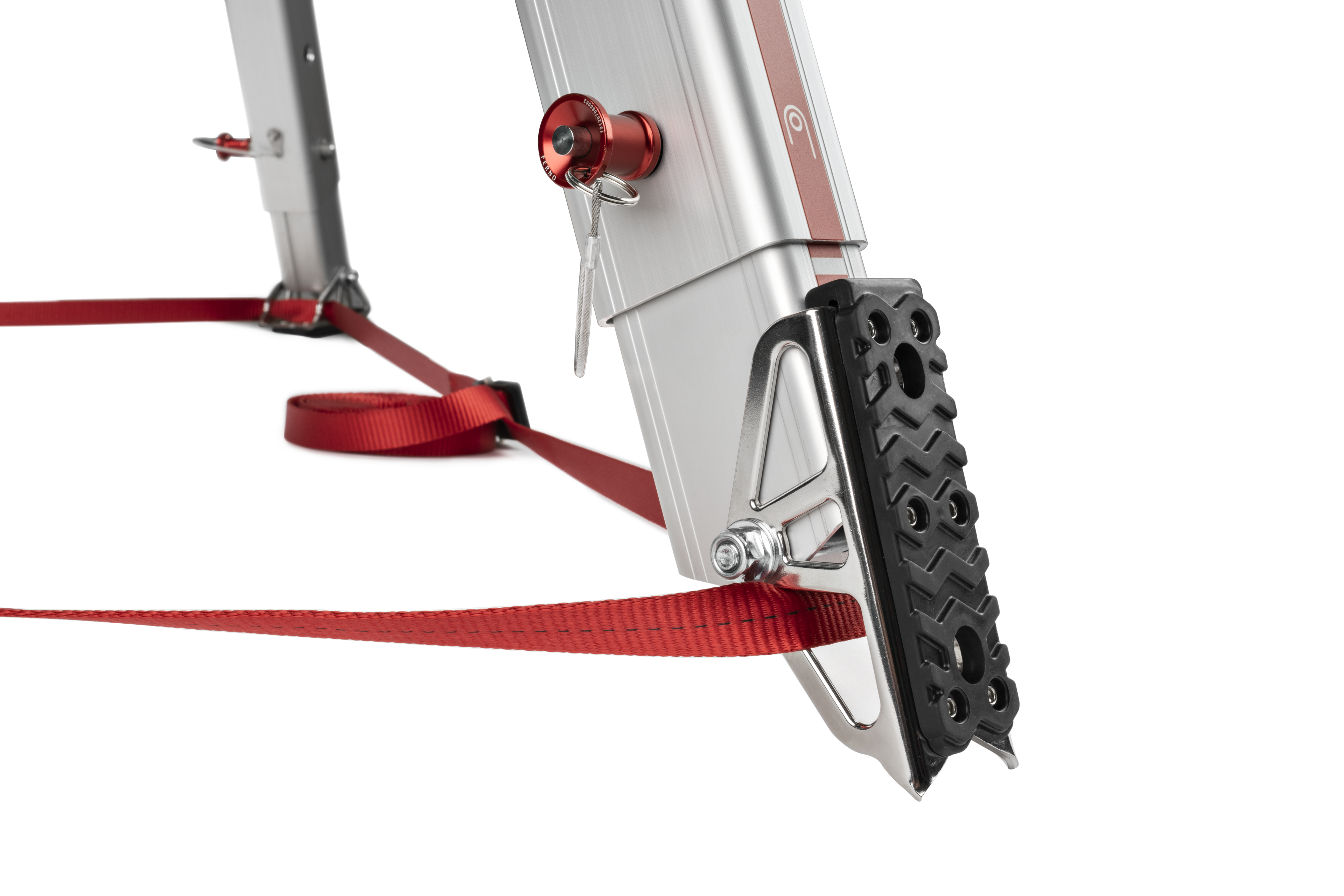

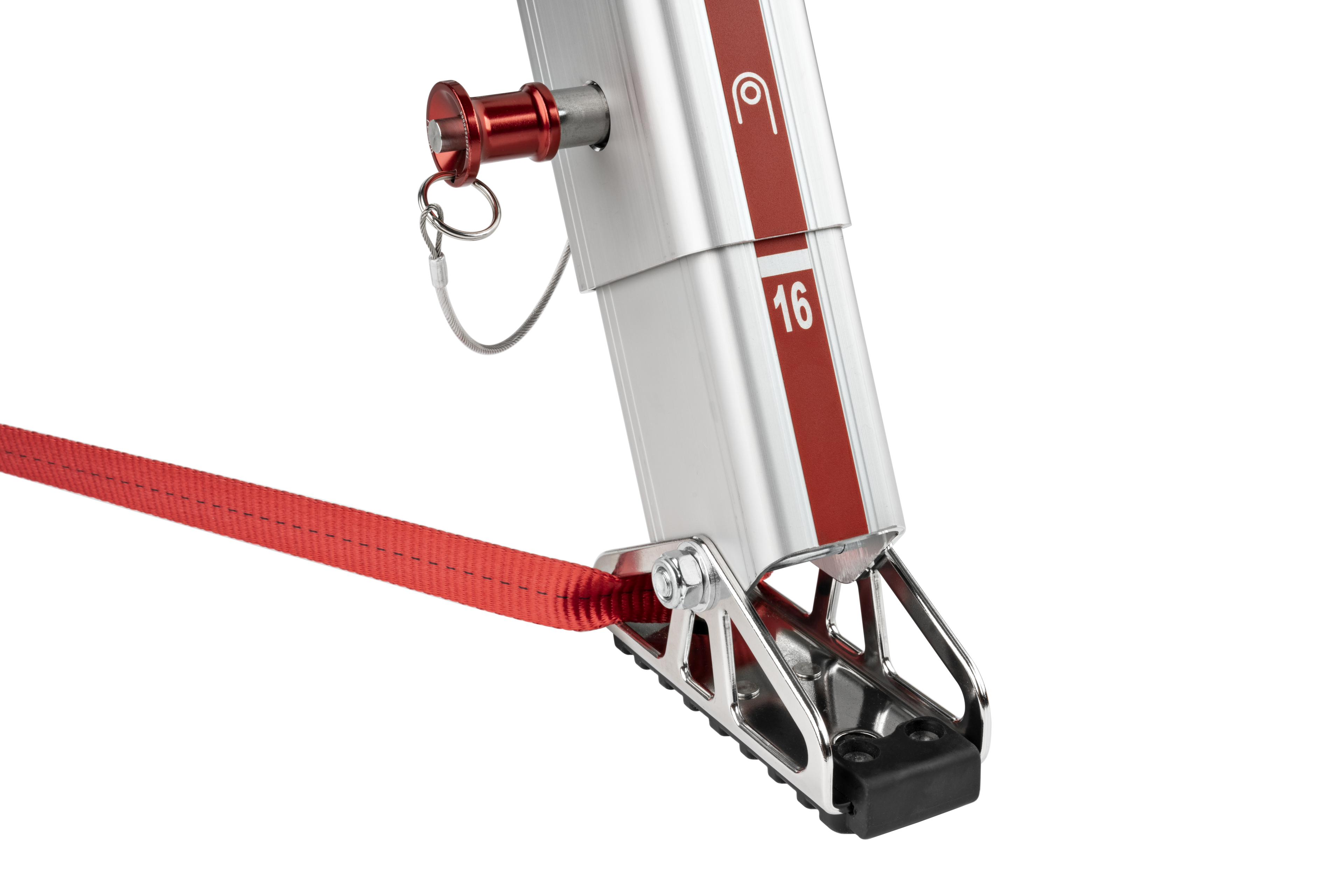

Feet

Pivoting feet adapt the Triskelion to a variety of surfaces and angles
Feet have non-slip tread for hard floors and spiked tips for soft earth

Hobble

Red webbing hobble strap secures all three legs at the base with a single quick-connect Cobra Buckle
Single webbing strap is lighter than chain and faster than using multiple lengths of material
Red color is bright and easy to see, drawing attention to the strap and reducing risk of a trip hazard

Bag

Includes a reinforced carry bag with a diagram indicating proper orientation for balanced single-person transport
Easily carried by two people using the end handles, or a single person using the padded center shoulder strap

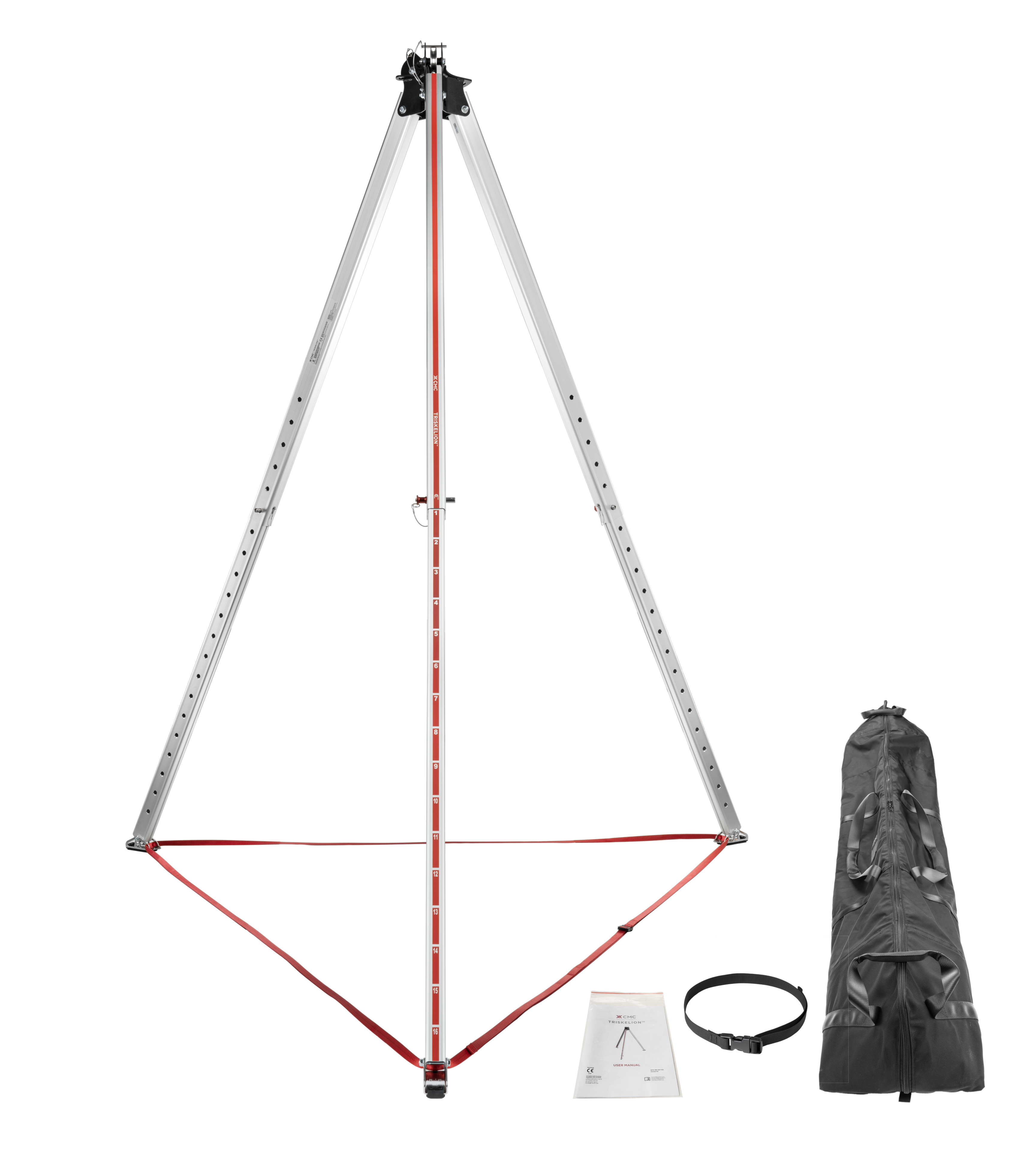

Triskelion Components:

Triskelion Tripod
Hobble Strap
Carry Bag
Leg Strap
User Manual

Triskelion Specifications:

Min Working Height: 1.7 m (5.5 ft)
Max Working Height: 3.1 m (10 ft)
Tripod Weight: 32 kg (70 lb)
Tripod Footprint:

Inside Diameter of Feet:

Minimum Height: 1580 mm (62.2 in)
Maximum Height: 2820 mm (111 in)

Outside Diameter of Feet:

Minimum Height: 1930 mm (76 in)
Maximum Height: 3170 mm (124.8 in)

MBS:

Attached directly to head: 36 kN (8,093 lbf)
Attached to leg over pulley: 22 kN (4946 lbf)

Certification:

NFPA 1983 (2017 ED) – General Use
EN 795:2012 Type B for Single Person Use
CEN/TS 16415:2013 Type B for 2 Person Use

Accessories (Sold Separately):

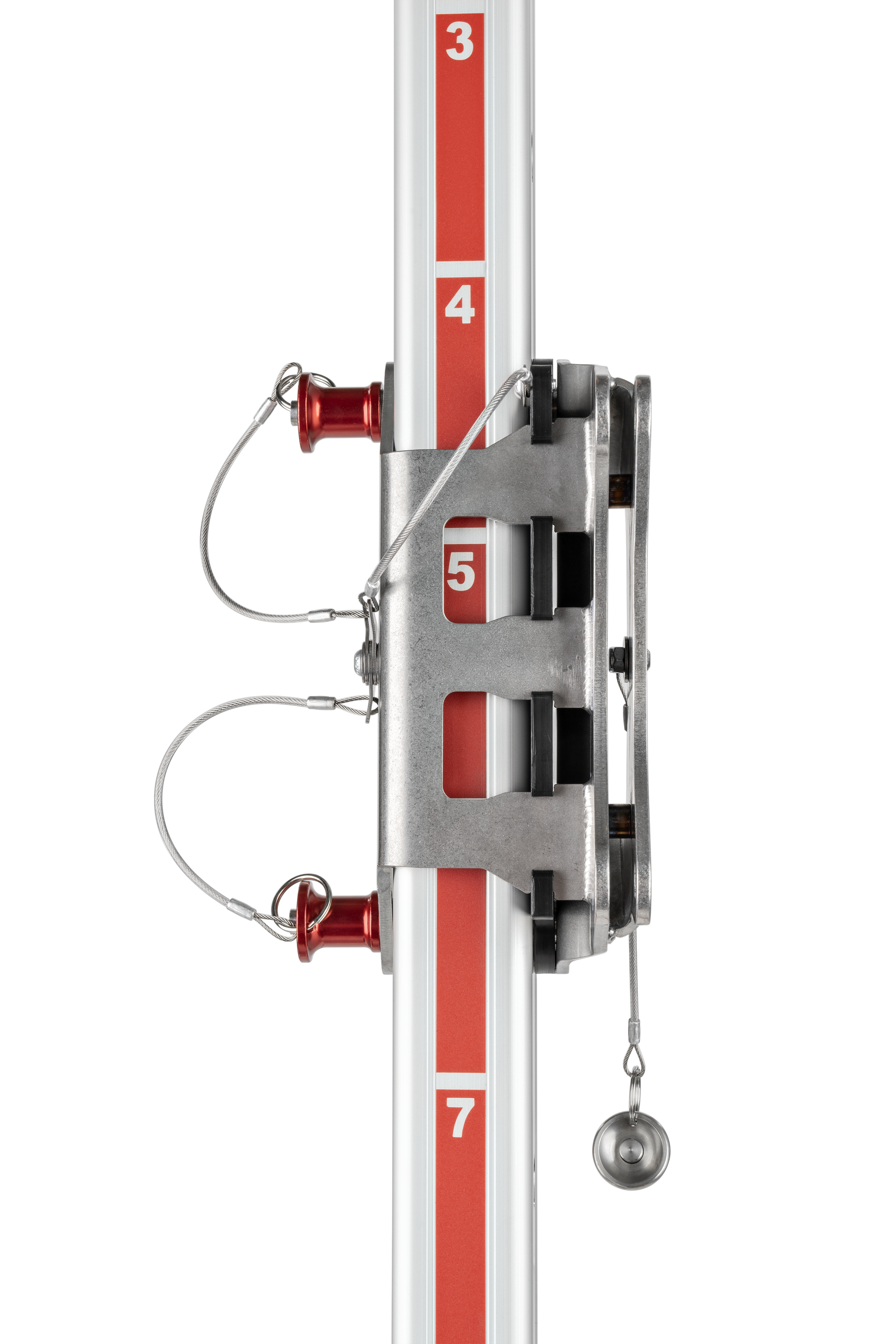

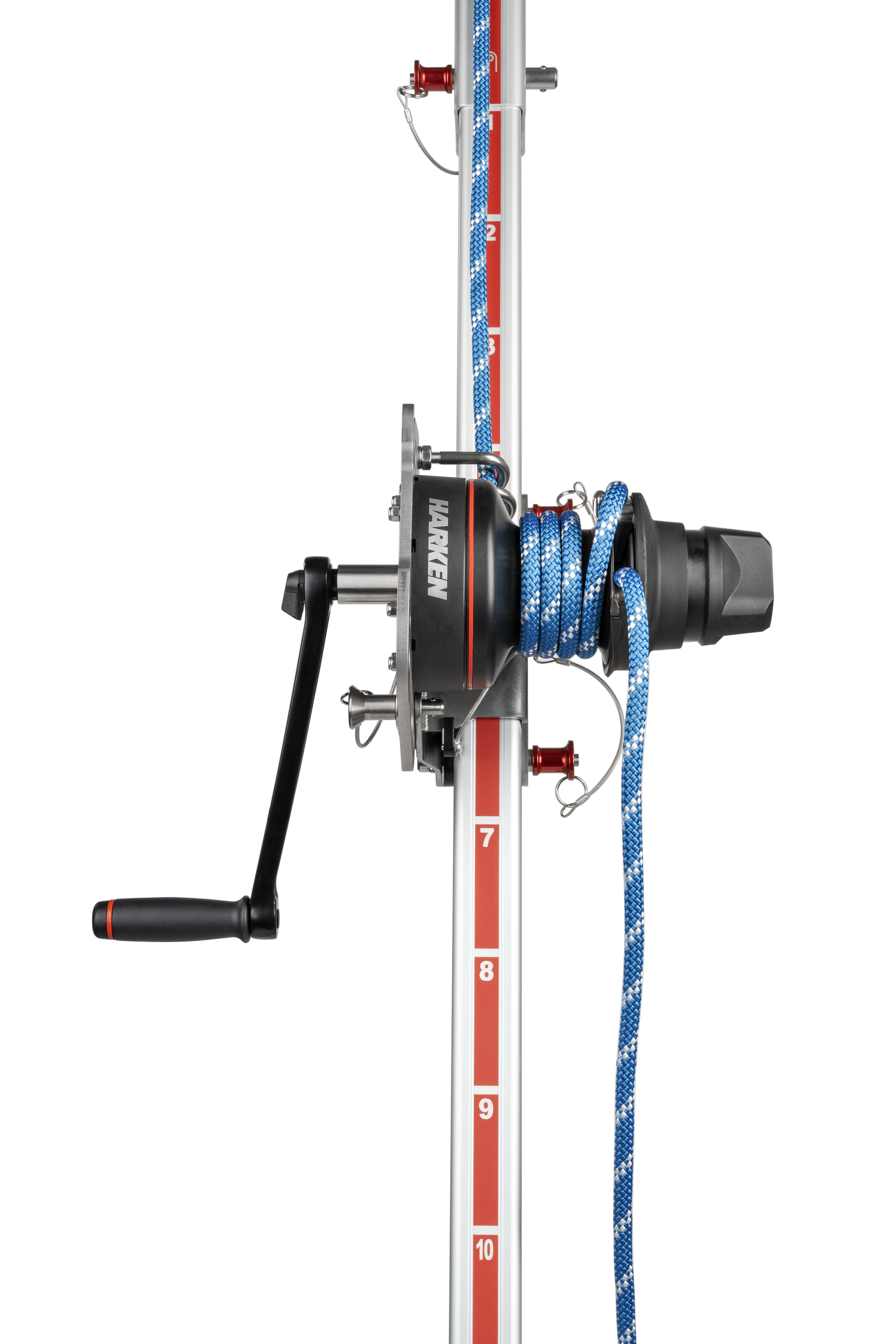

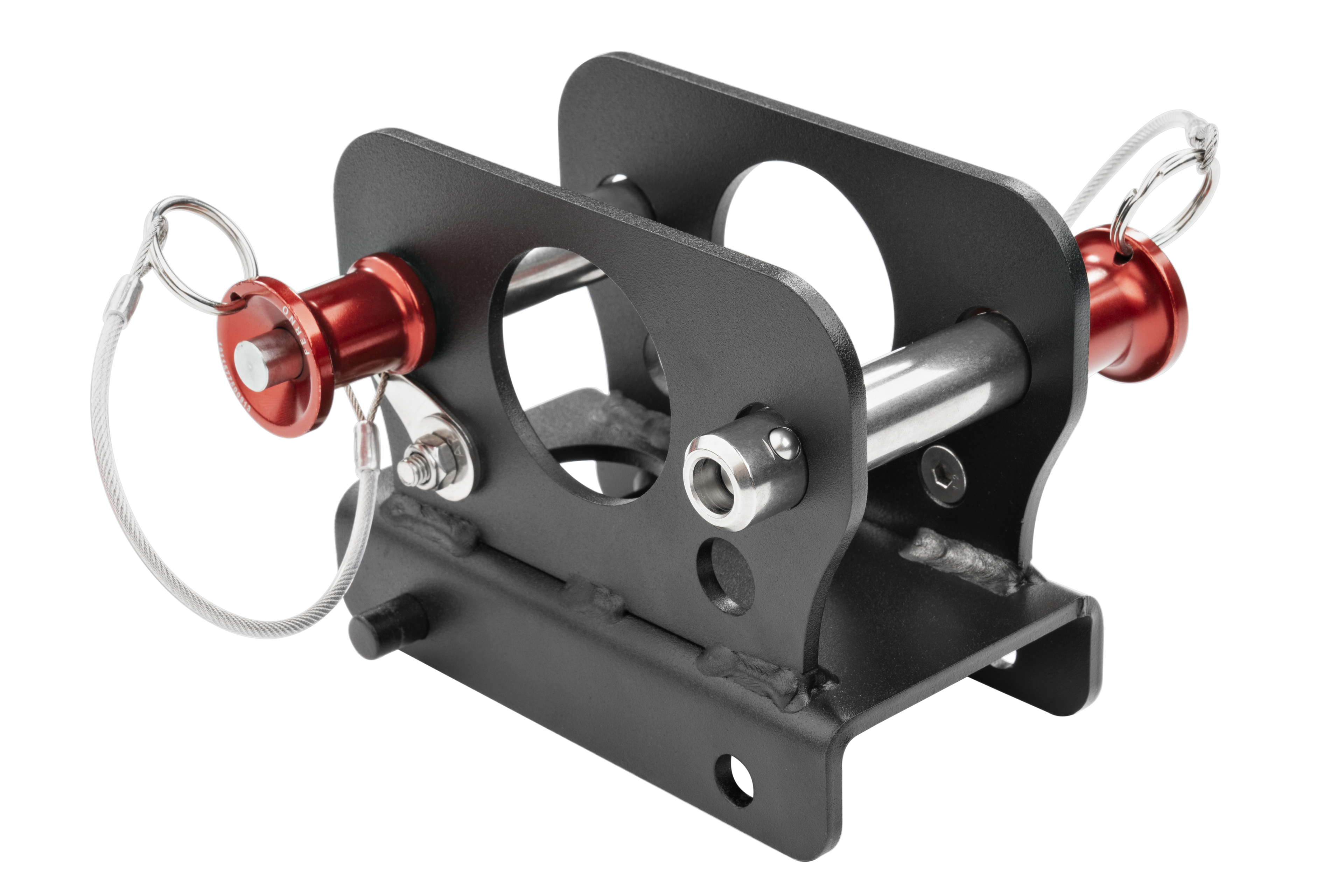

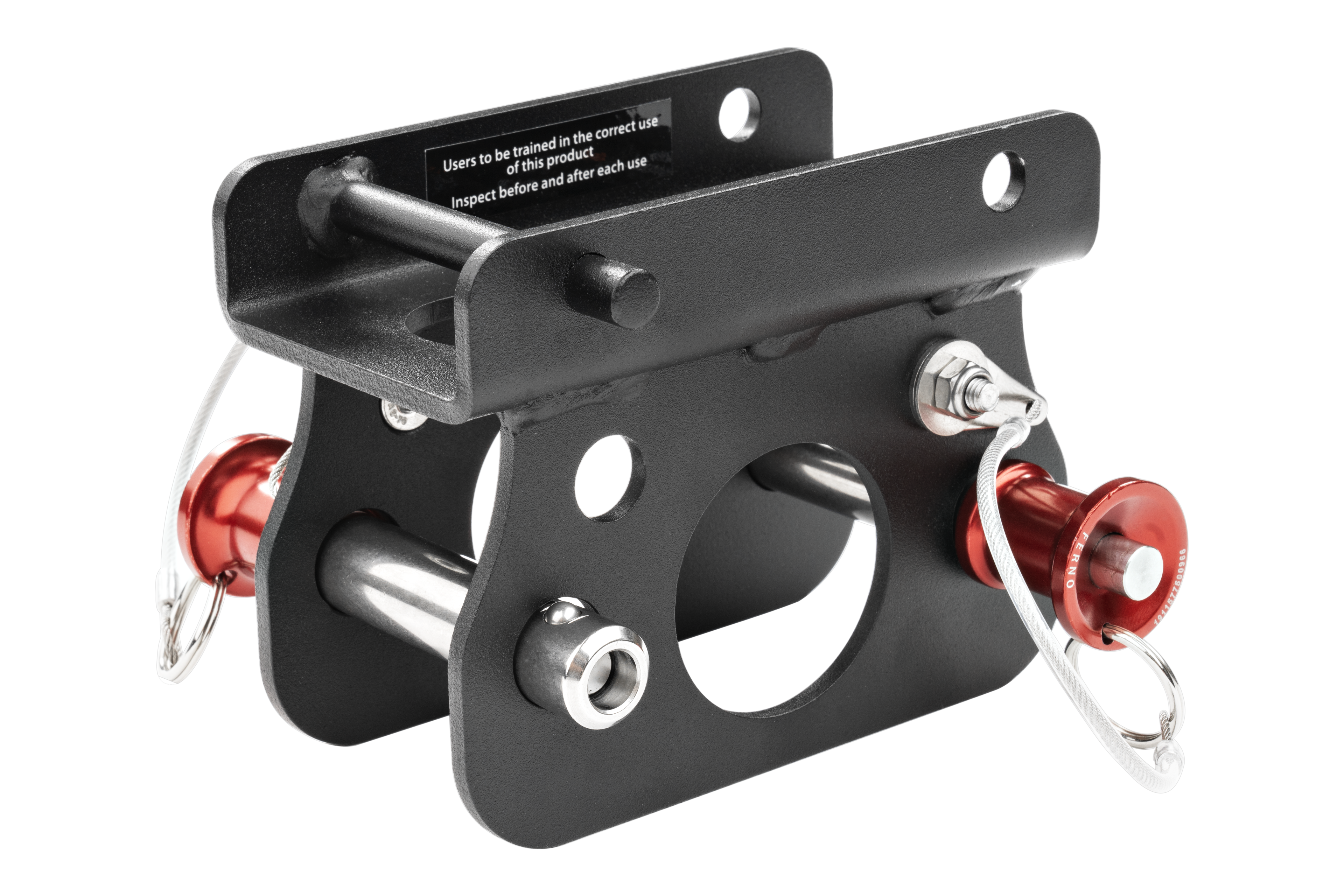

LokHead Winch Adapter

Enables the Harken LokHead Winch to be mounted and used with the Triskelion
Quickly and smoothly installed using large, quick-action, ball-lock push pins
Easier, more refined installation than the traditional u-bolt and anchor strap system
Self-contained, secure attachment that mounts on inside and outside of legs

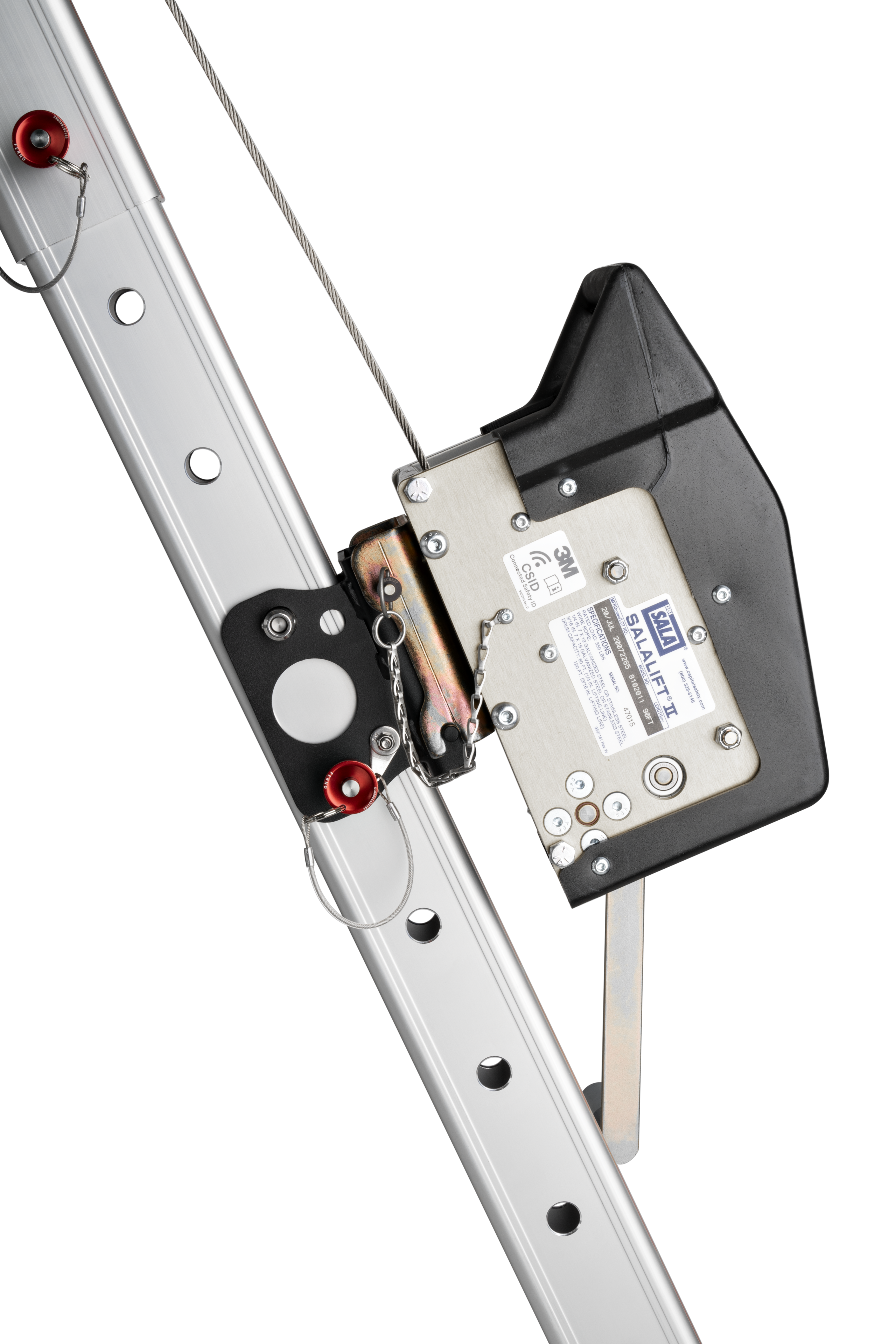

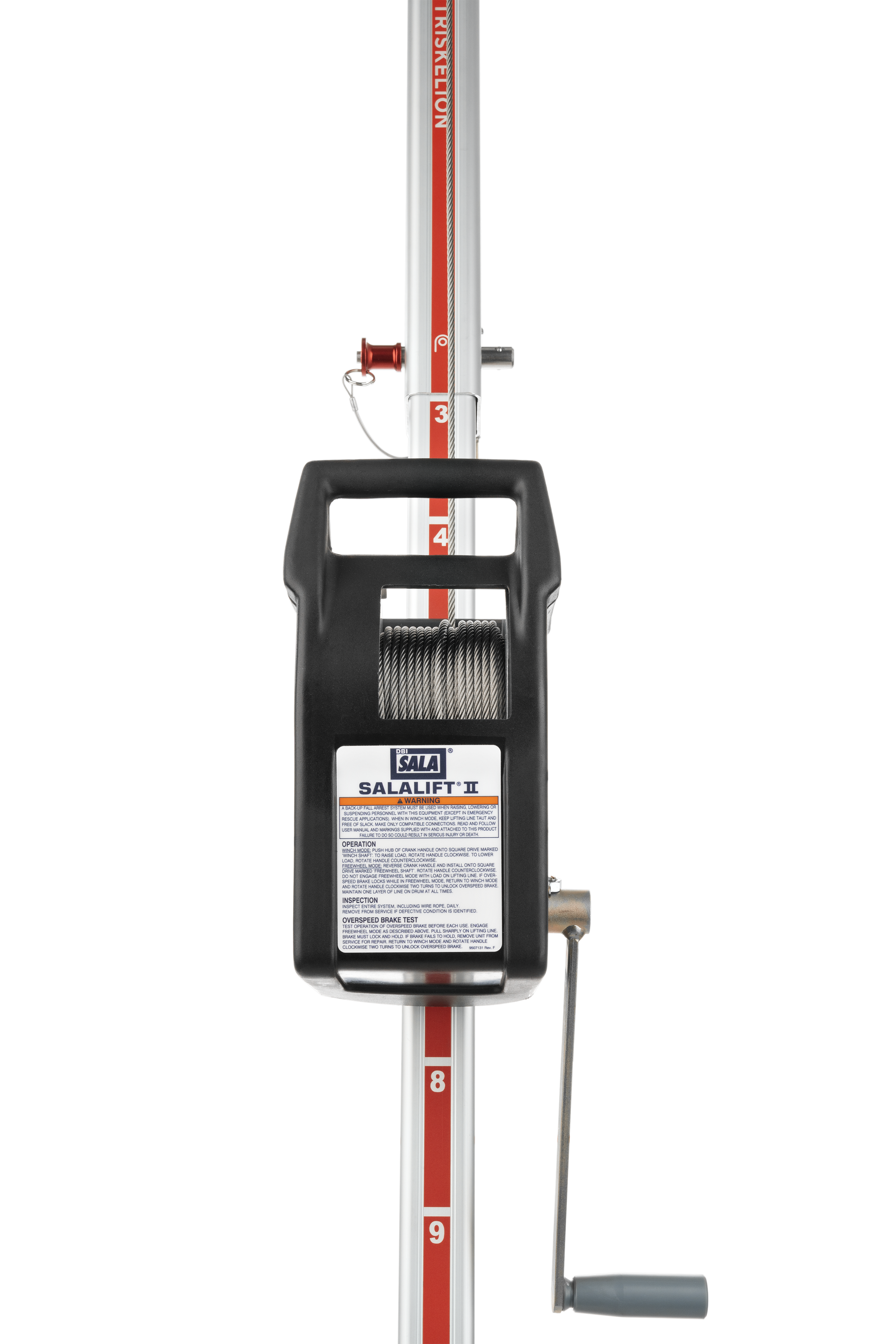

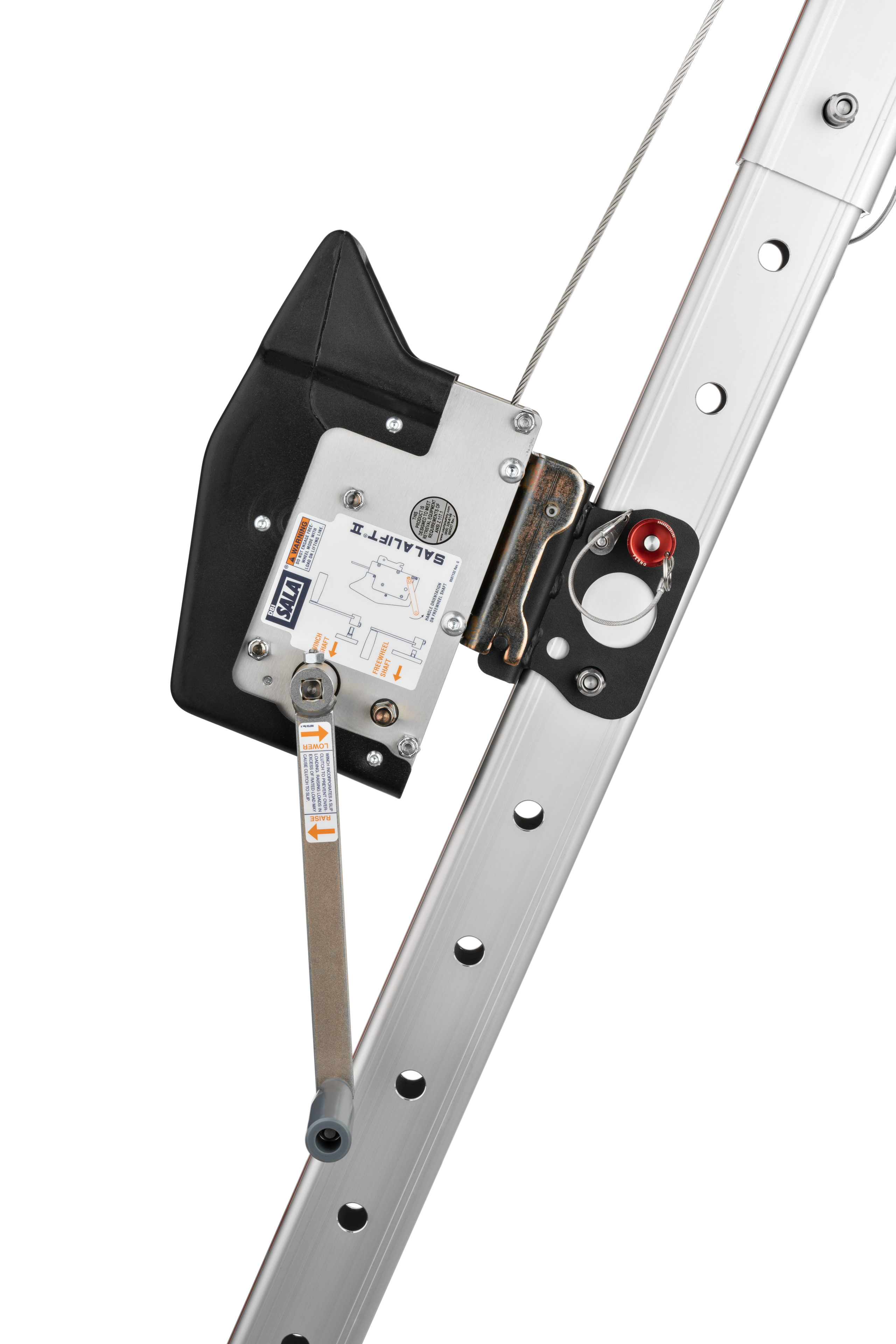

Salalift II Winch Adapter

Enables the 3M DBI/SALA Salalift II Winch to be mounted and used with the Triskelion
Quickly and smoothly installed using large, quick-action, ball-lock push pins

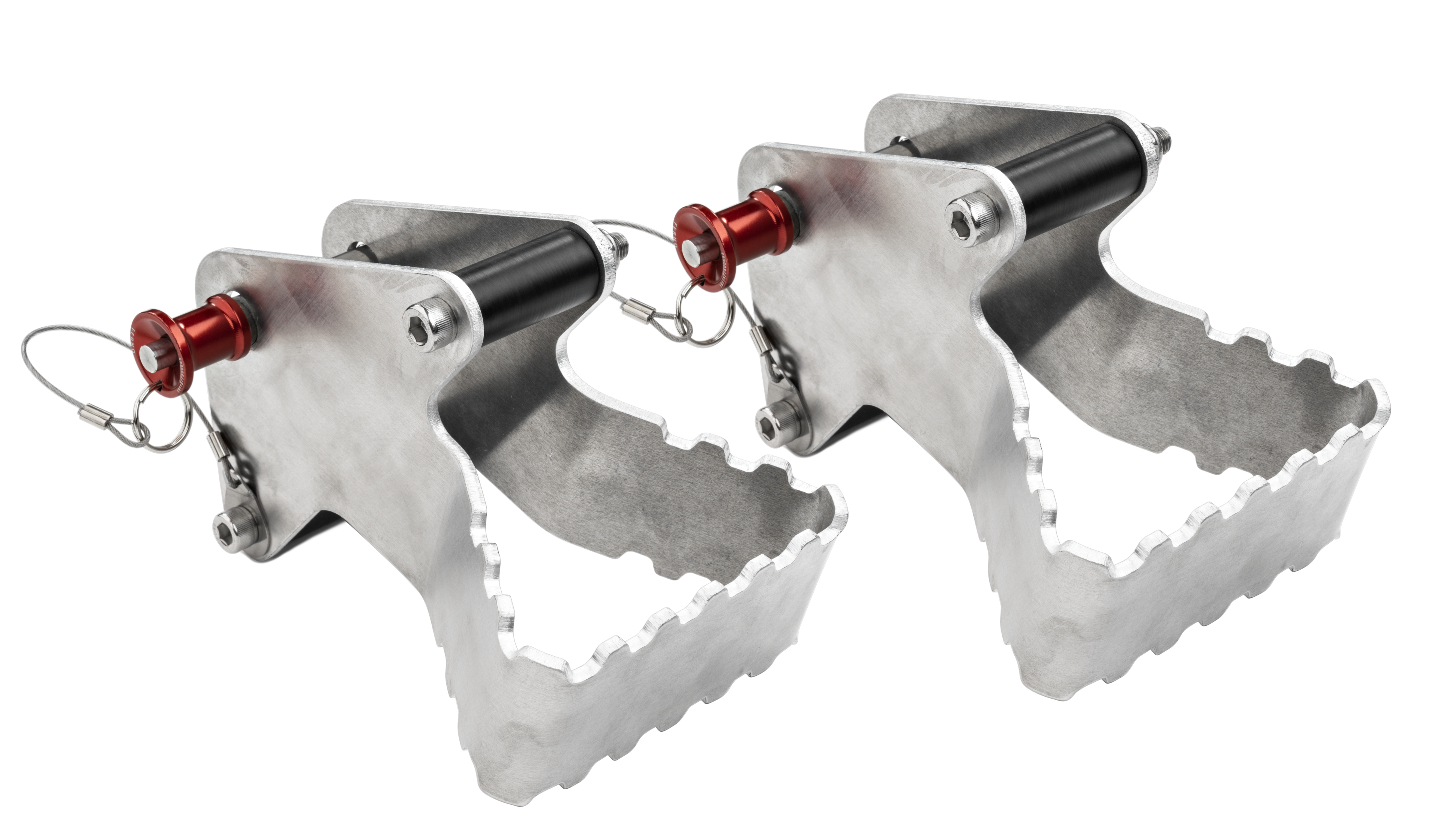

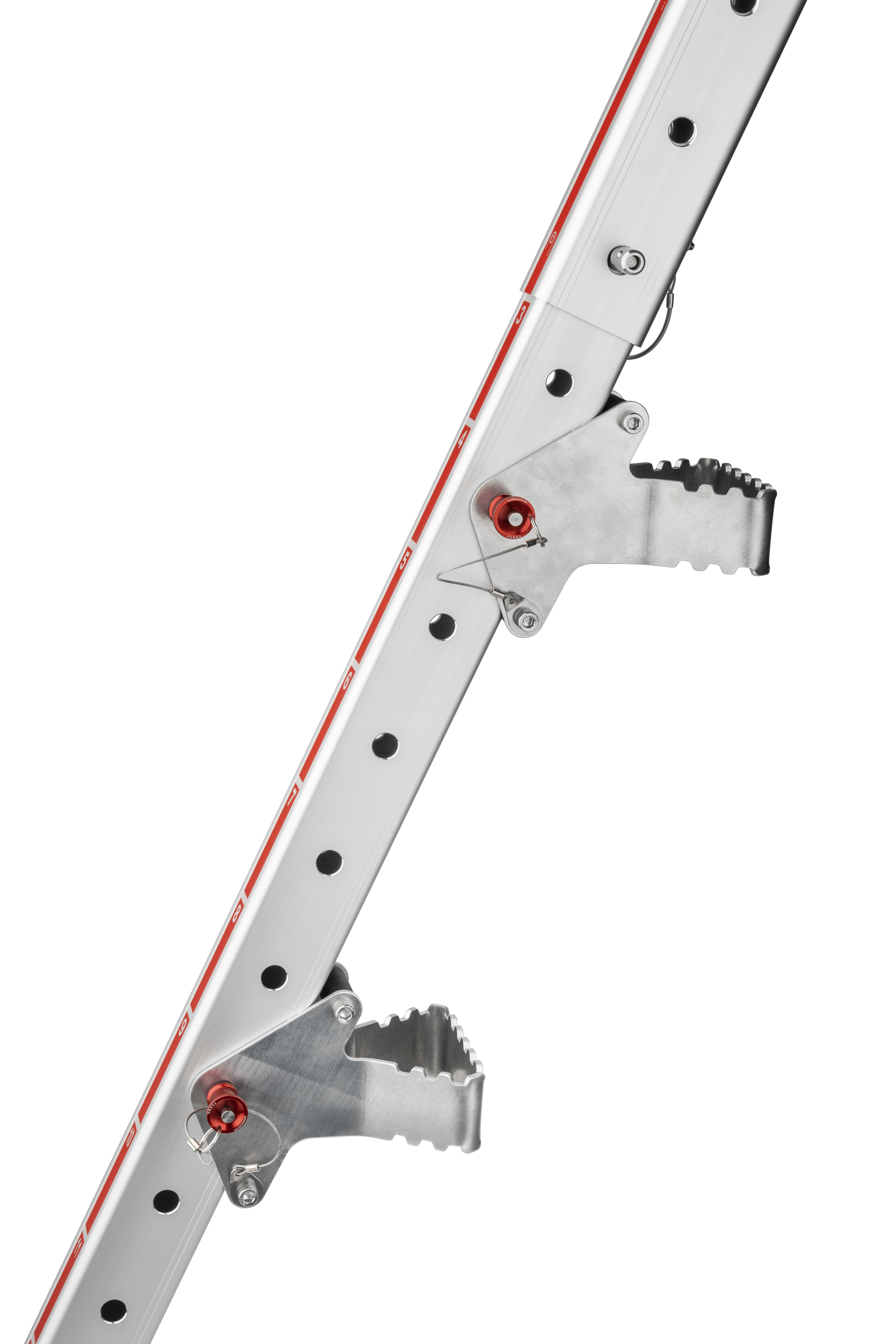

Foot Step Kit (2 Steps)

Mounts to the lower section of the Triskelion leg, allowing the operator to reach the head after setup
Quick and safe way to correct problems, adjust rigging, and perform safety checks while fully extended

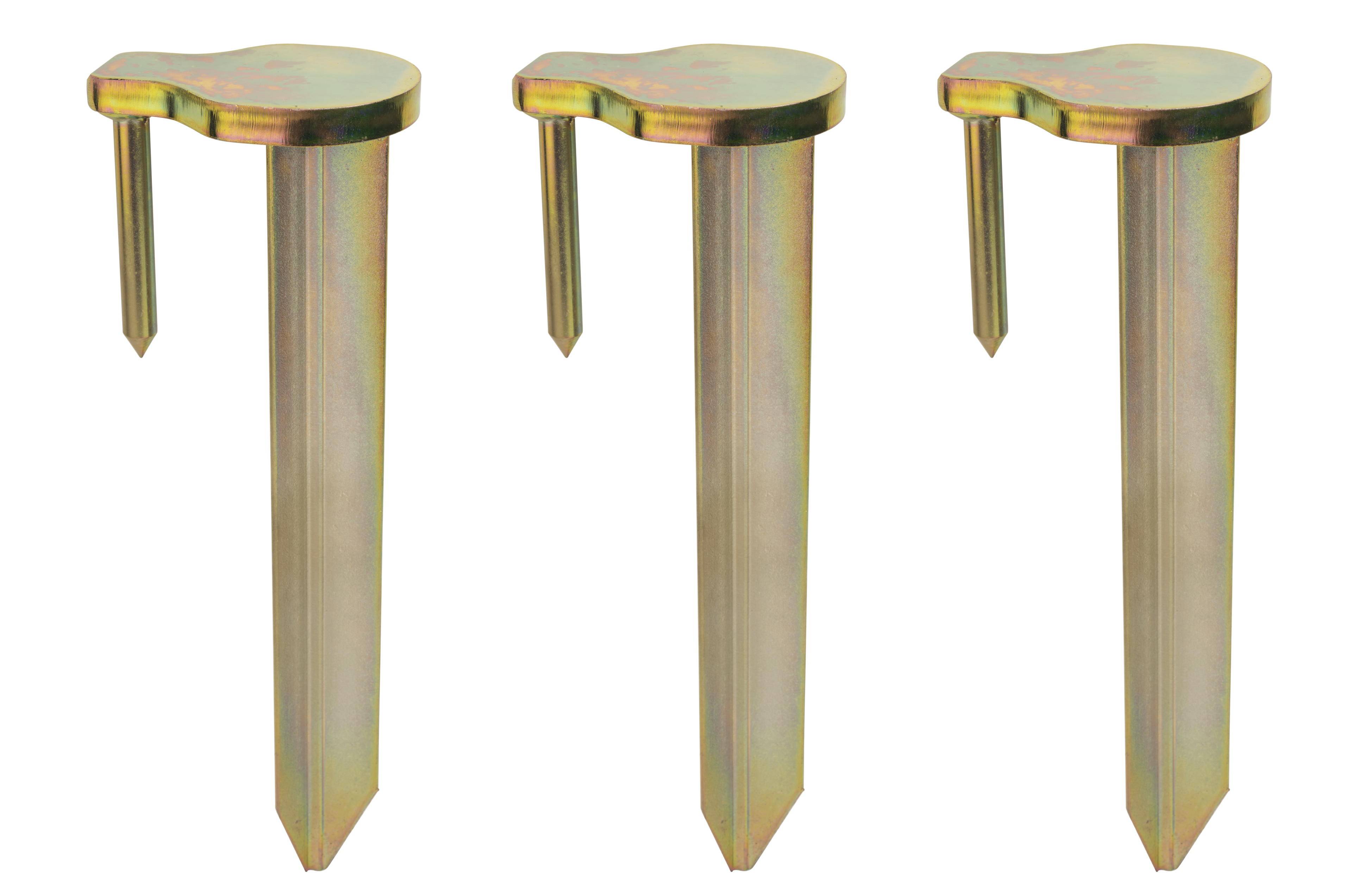

Ground Stake Kit (3 Stakes)

Integrates with the Triskelion feet to provide additional security on soft ground

Click Here for Triskelion Spare Parts (sold separately and available on separate page).
Click Here for the Triskelion PPE inspection form and additional information.
