CMC Proseries™ Pulleys

Description

New Additions:

• 2.0” PMP Single Pulley – G-Rated, prusik minding, and up to 3% more efficient than 1.5″
• 2.0″ PMP Double Pulley – G-Rated, prusik minding, and has integrated becket for MA
• 1.5” Single Pulley – G-Rated and lightweight with an aluminum sheave pulley
• 1.1″ SwivaBiner – T-Rated, compact, and versatile pulley/swivel/carabiner combo

Features & Benefits

• New models certified to NFPA standards including a more efficient 2” option
• Patented, USA Made, time-tested, and proven as the original swivel pulleys
• Combined swivel & pulley reduces system length, allowing more travel
• Pivoting sideplate allows rope loading without disconnecting from anchor
• Double-action detent button prevents accidental opening of the sideplate
• Sheave is mounted on sealed ball bearings for maximum efficiency
• Rotating swivel aligns rope with the direction of pull
• Swivel can be secured using rope, web, or carabiners
• Ergonomic design for anchoring and loading with one hand
• CNC machined for optimal strength & weight
• Prusik minding options facilitate progress capture
• Compatible with rope up to 13 mm (1/2 in)
• 1.5″ PMP SS Pulley is compatible with rope or wire cable
• Ideal for rescue, work at height, and tree care

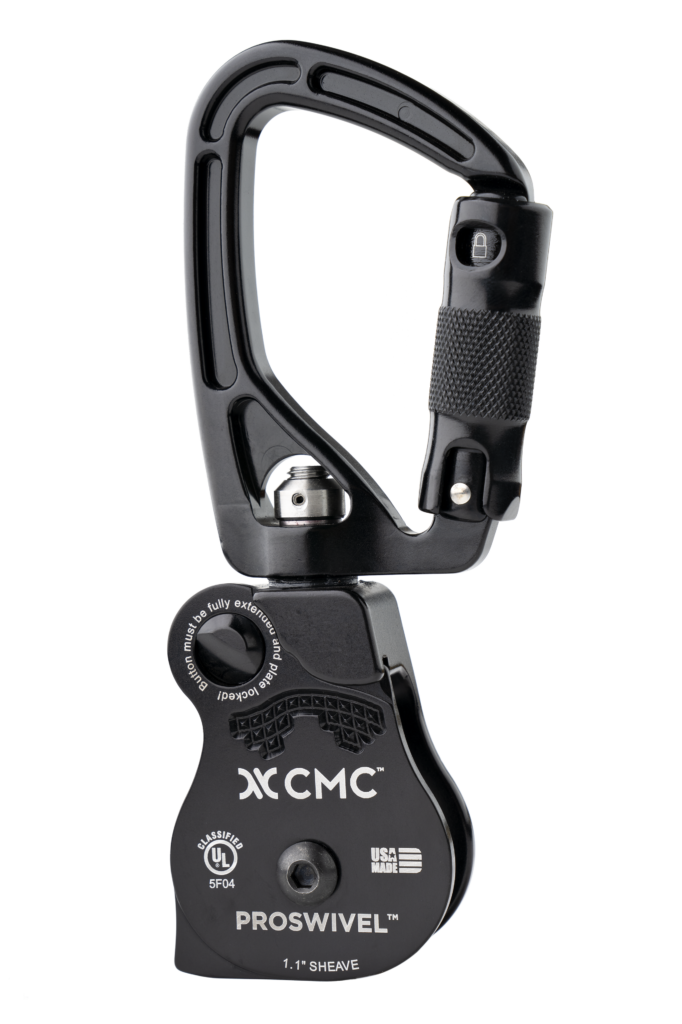

1.1” PMP SwivaBiner Pulley

• Item: 300435
• Product Weight: 200 G (7.0 oz)
• Pulley Type: 147 G (5.2 OZ)
• Sheave Material: ALUMINUM
• Height x Width: 112 X 51 MM (4.4 X 2.0 IN)
• Pulley Color: BLACK
• NFPA Rating: TECHNICAL USE
• 3 SIGMA MBS: 23 KN (5,171 LBF)

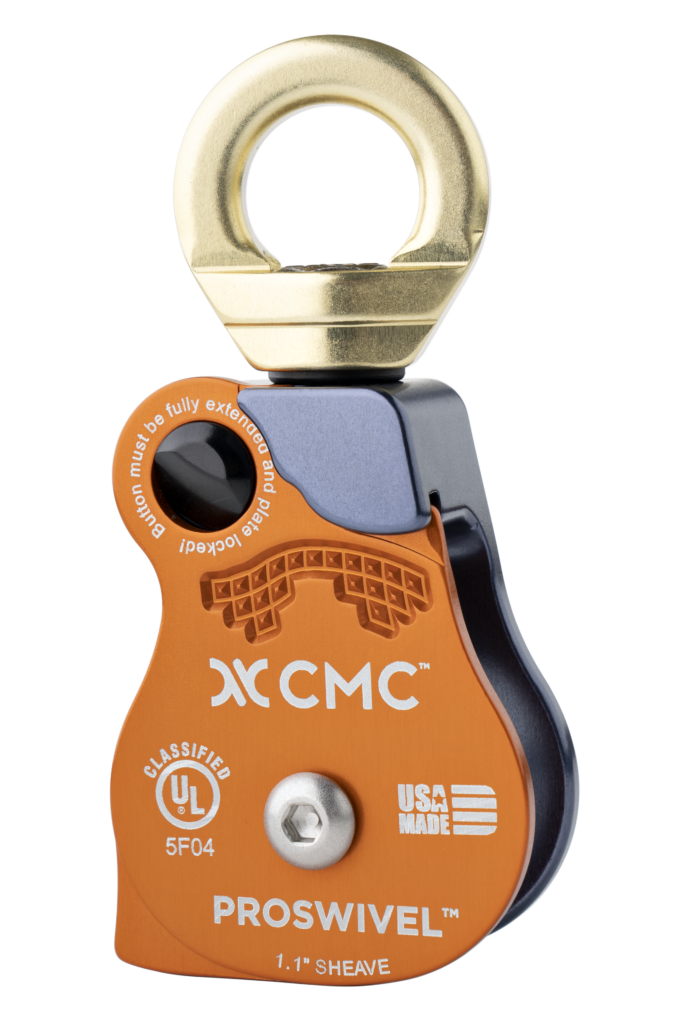

1.1” PMP Single Swivel Pulley

• Item: 300434
• Product Weight: 147 G (5.2 OZ)
• Pulley Type: SINGLE SHEAVE
• Sheave Material: ALUMINUM
• Height x Width: 112 X 51 MM (4.4 X 2.0 IN)
• Pulley Color: BRONZE / SLATE
• NFPA Rating: TECHNICAL USE
• 3 SIGMA MBS: 20 KN (4,496 LBF)

1.5″ Single Swivel Pulley

• Item: 300431
• Product Weight: 261 G (9.2 OZ)
• Pulley Type: SINGLE SHEAVE
• Sheave Material: ALUMINUM
• Height x Width: 135 X 63 MM (5.3 X 2.5 IN)
• Pulley Color: BRONZE / SLATE
• NFPA Rating: GENERAL USE
• 3 SIGMA MBS: 36 KN (8,093 LBF)

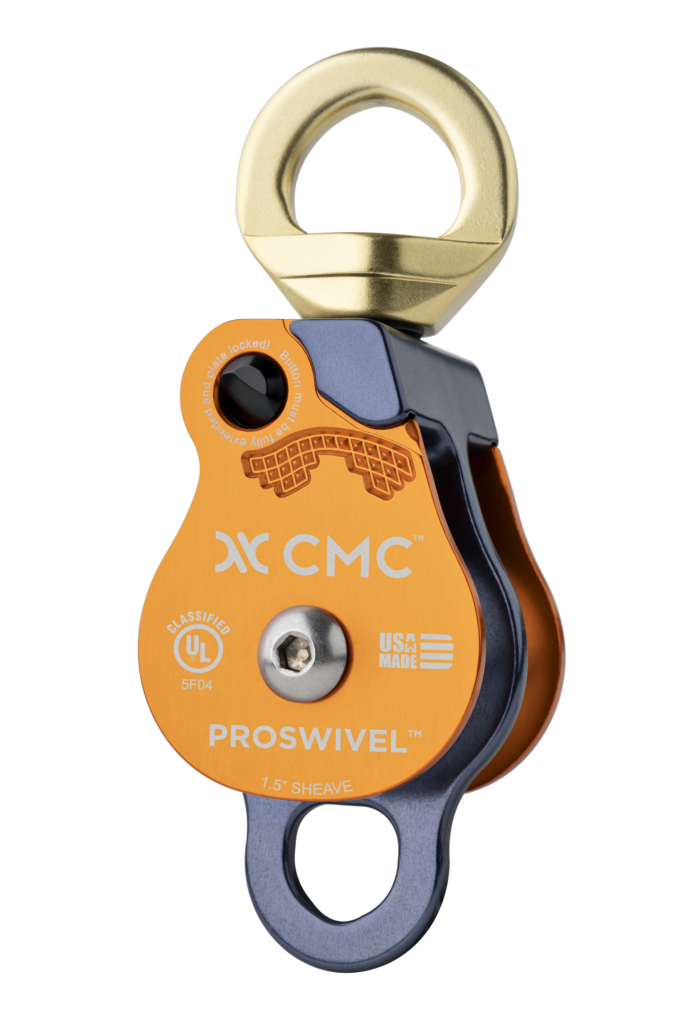

1.5″ Double Swivel Pulley

• Item: 300432
• Product Weight: 415 G (14.6 OZ)
• Pulley Type: DOUBLE SHEAVE
• Sheave Material: ALUMINUM
• Height x Width: 160 X 63 MM (6.3 X 2.5 IN)
• Pulley Color: BRONZE / SLATE
• NFPA Rating: GENERAL USE
• 3 SIGMA MBS: 36 KN (8,093 LBF)

2.0″ PMP Single Swivel Pulley

• Item: 300437
• Product Weight: 349 G (12.3 OZ)
• Pulley Type: SINGLE SHEAVE
• Sheave Material: ALUMINUM
• Height x Width: 148 X 76 MM (5.8 X 3.0 IN)
• Pulley Color: BRONZE / SLATE
• NFPA Rating: GENERAL USE
• 3 SIGMA MBS: 36 KN (8,093 LBF)

2.0″ PMP Double Swivel Pulley

• Item: 300438
• Product Weight: 585 G (20.6 OZ)
• Pulley Type: DOUBLE SHEAVE
• Sheave Material: ALUMINUM
• Height x Width: 180 X 76 MM (7.0 X 3.0 IN)
• Pulley Color: BRONZE / SLATE
• NFPA Rating: GENERAL USE
• 3 SIGMA MBS: 36 KN (8,093 LBF)

2.6” PMP Single Swivel Pulley

• Item: 300436
• Product Weight: 841 G (29.7 OZ)
• Pulley Type: SINGLE SHEAVE
• Sheave Material: ALUMINUM
• Height x Width: 191.3 X 92.5 MM (7.53 X 3.62 IN)
• Pulley Color: BRONZE / SLATE
• NFPA Rating: GENERAL USE
• 3 SIGMA MBS: 78 KN (17,534 LBF)
