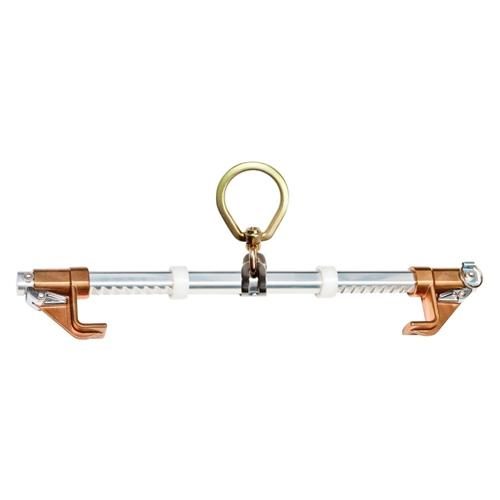

CMC I-Beam Sliding Anchor, 3.5″-14″

$261.00

The I-Beam Sliding Anchor is a lightweight, adjustable clamp which attaches to I-Beam flanges and slides along the beam as the user moves. The aluminum design fits beam flanges from 3-1/2 inch to 14 inch with thickness of 1-1/4 inch. Easy to adjust in and out and its design moves smoothly along the beam.

FEATURES

  • Lightweight aluminum design moves smoothly across beam
  • Fits beam flanges from 3-1/2 in to 14 in
  • Fits beams up to 1-1/4 in thick

Available on backorder

Part Number: 391212
SKU: 391212 Categories: , , , , , , , , , Brand:

Description

DETAILS

  • Style: I-Beam
  • Material: Aluminum
  • Minimum Breaking Strength: 44.4 kN (5,000 lbf)
  • Anchor Application: General (all purpose)
  • Certifications: ANSI/ASSP Z359.18-2017,OSHA 29 CFR 1910.140 & 1926.502
  • Permanent/Temporary: Temporary

DIMENSIONS

  • Approx. Product Length (in): 22
  • Approx. Product Height (in): 3.6
  • Approx. Product Width (in): 4.8
  • Approx. Product Weight (lb): 3.5

Additional information

Brand

CMC
