Description

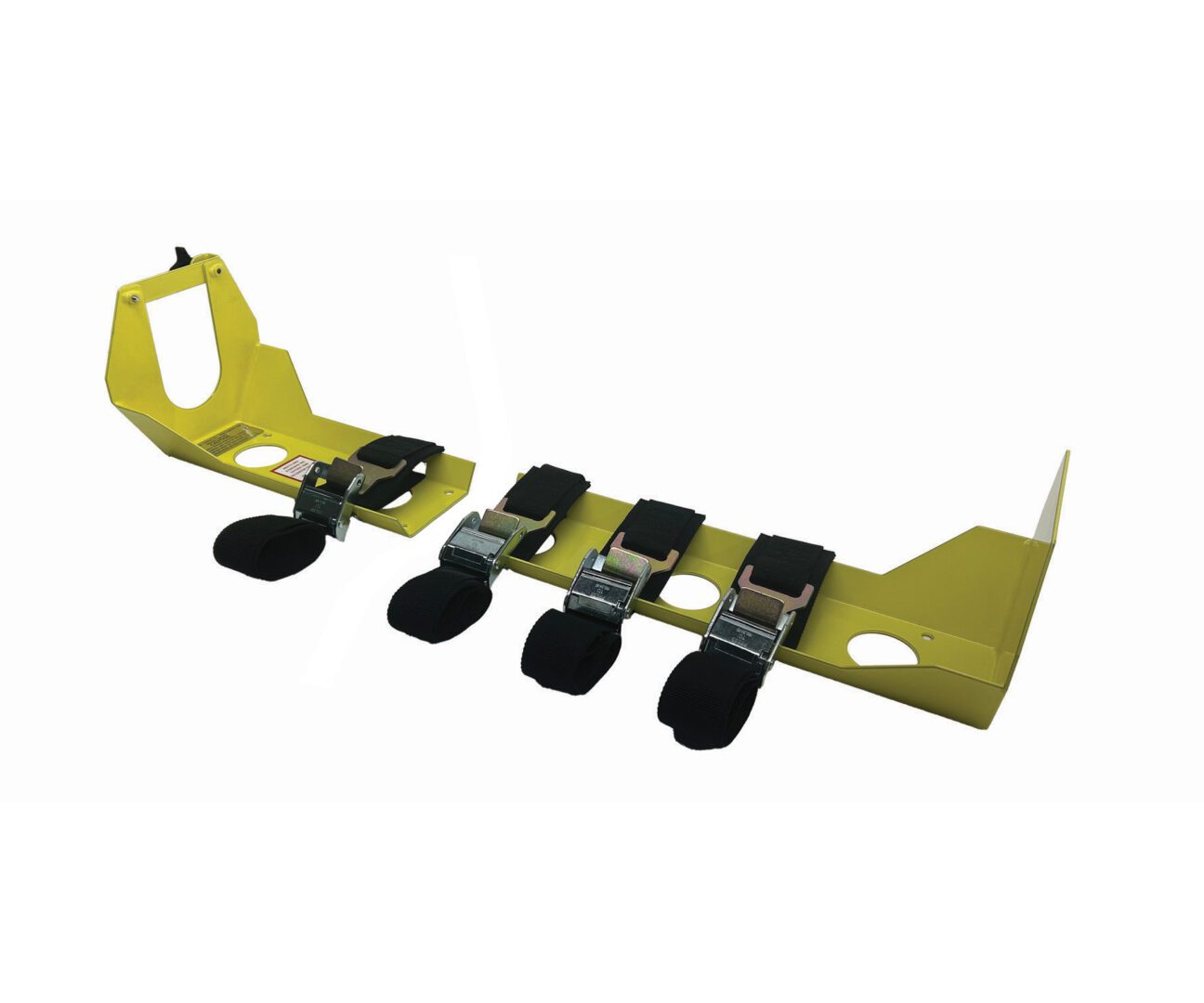

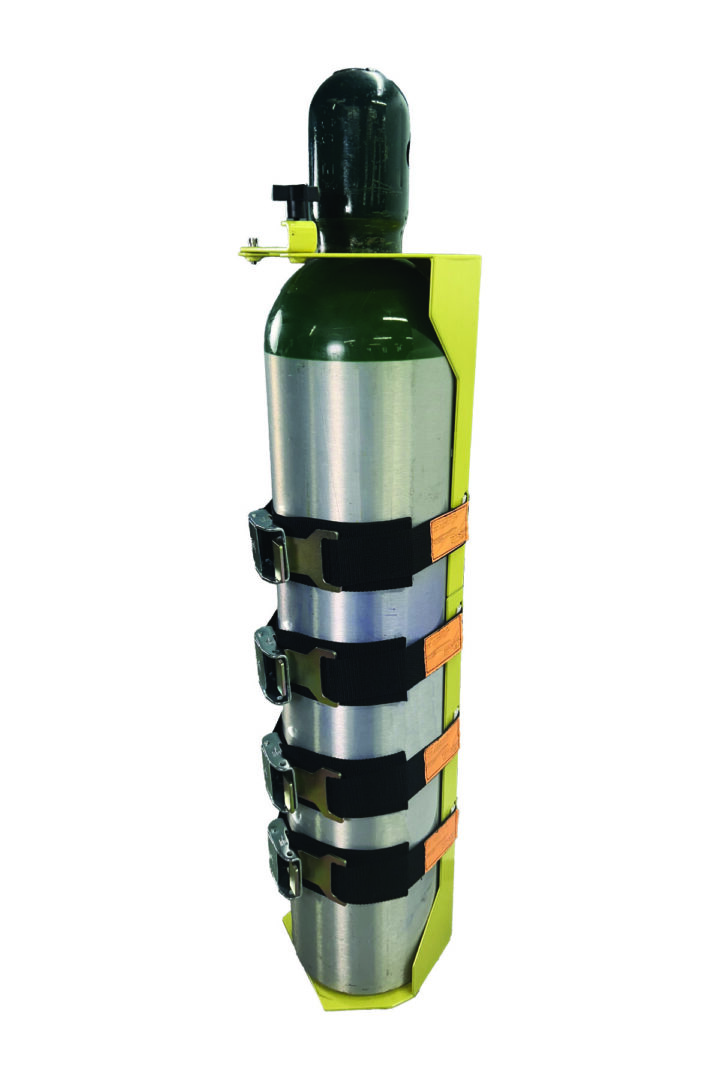

This new bracket consists of only two separate ends (a base and retainer). The base and retainer ends can be spaced apart to accommodate “M”, “G”, “H”and “J” cylinders. In comparison, the older Multiversal Bracket (model QR-MV) consists of two separate ends (a base and a retainer) and two strap support brackets.

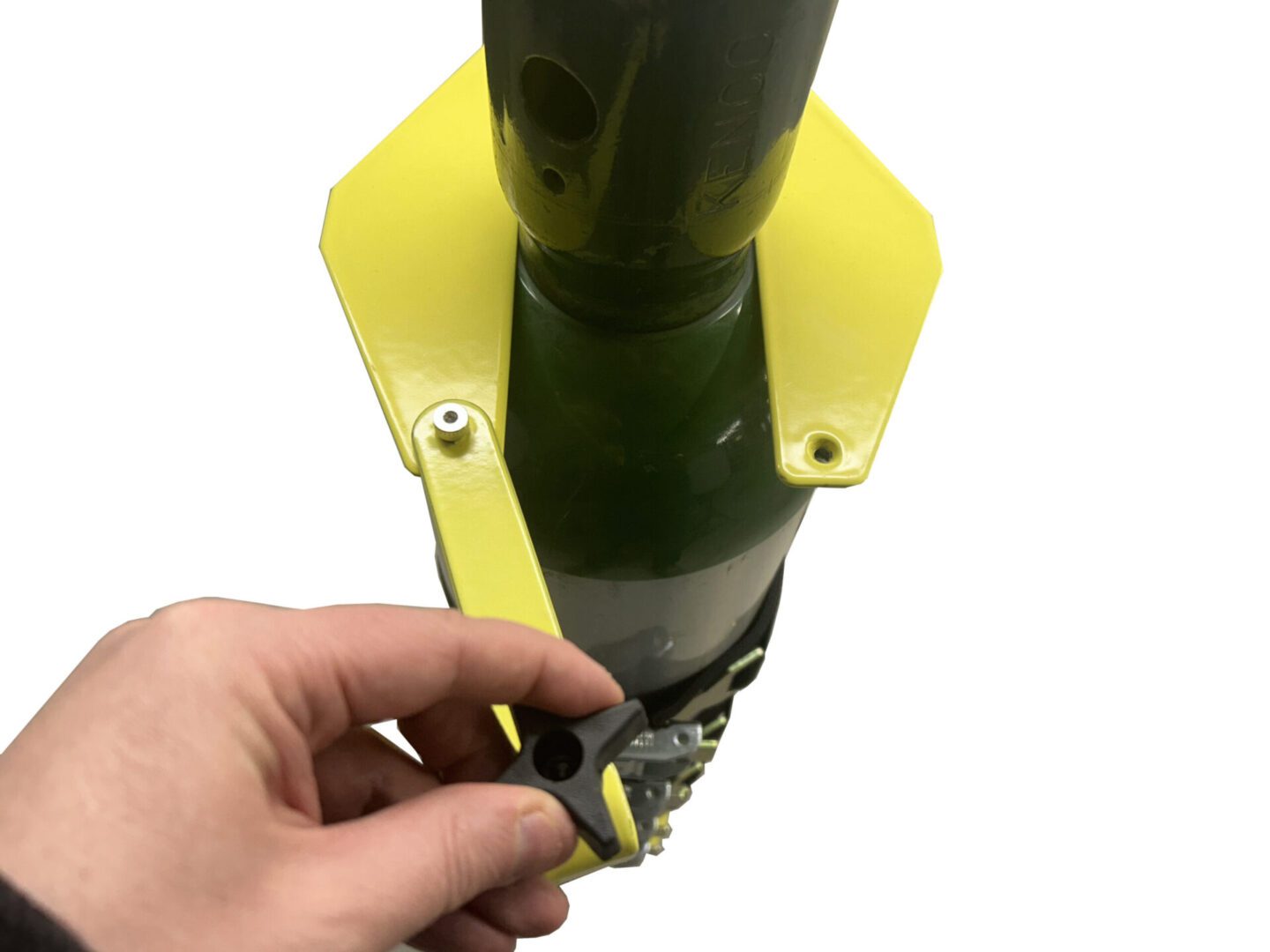

This new bracket features a new, ambidextrous, quick release gate that remains secured and attached from two ¼” 20 weld nuts and held tight by a durable hand knob. Swing closed, and tighten to secure.

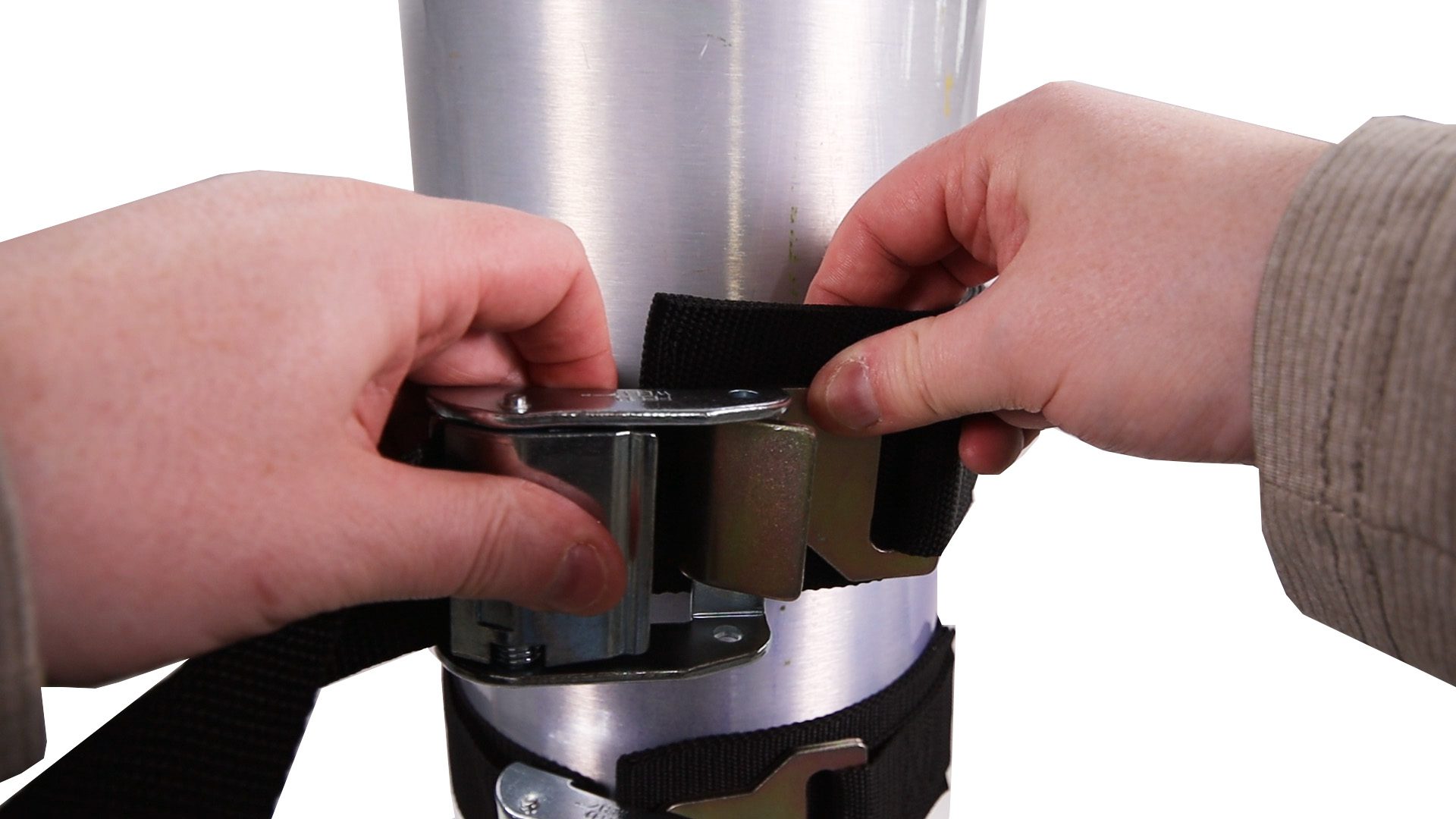

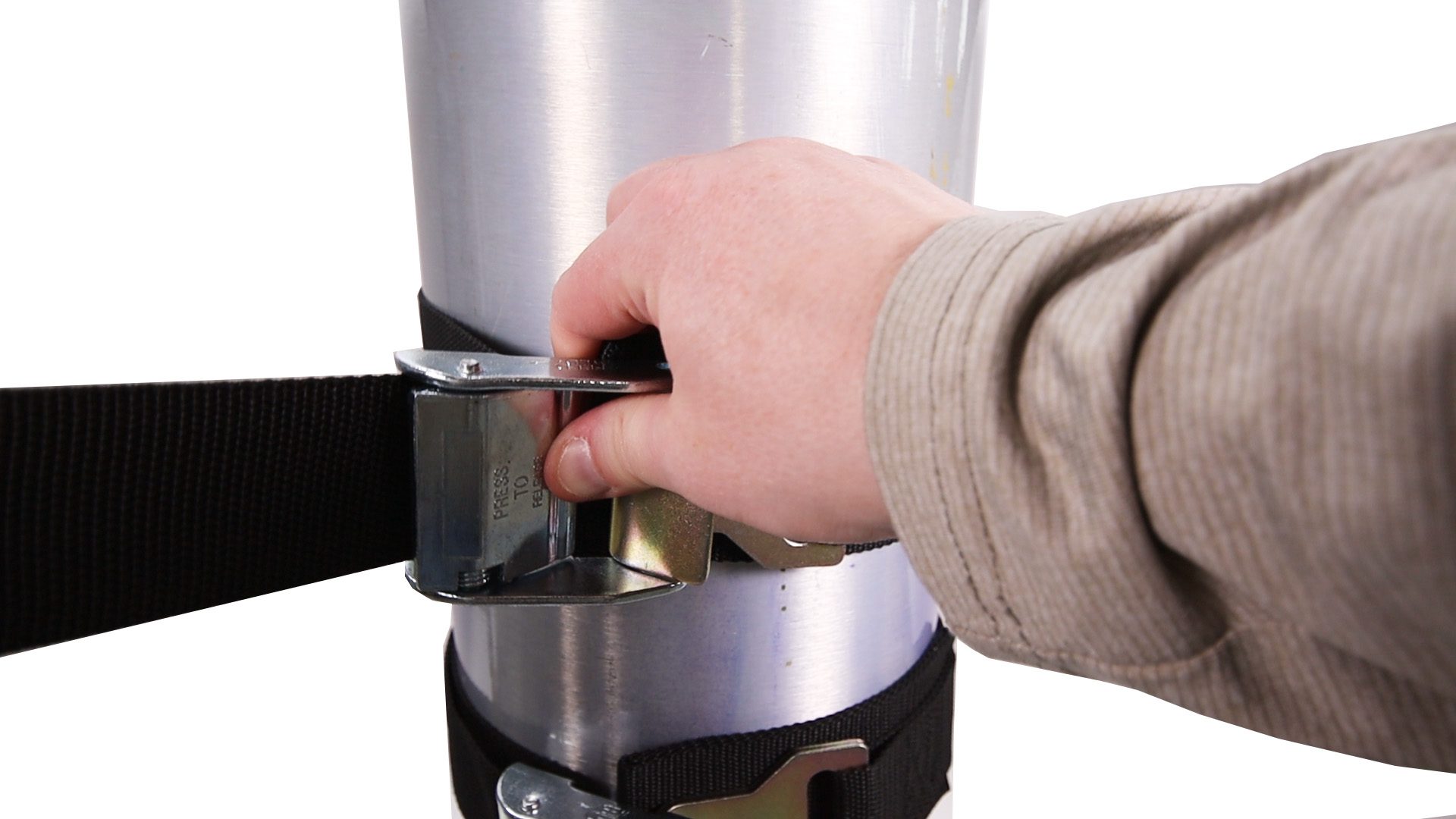

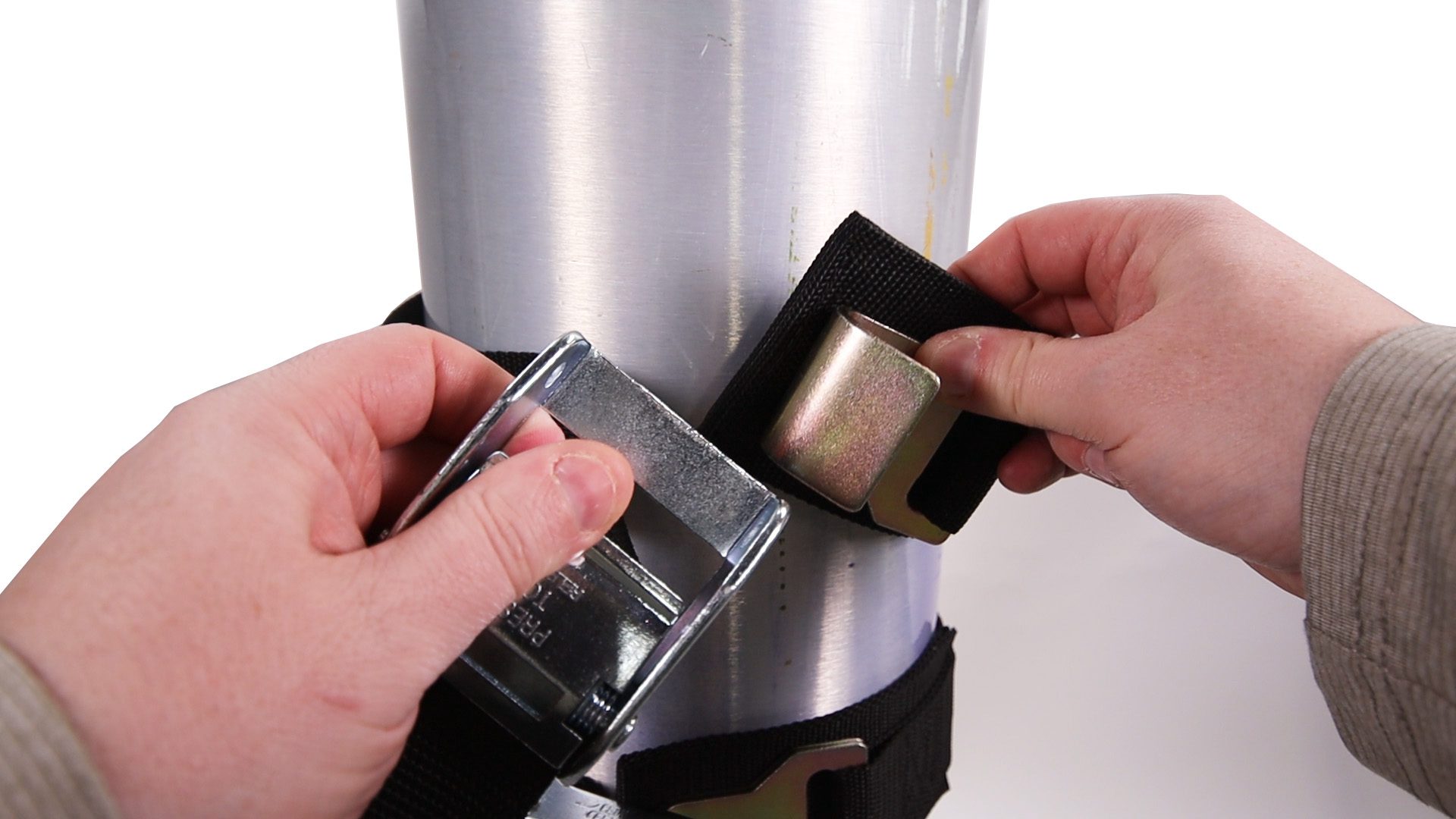

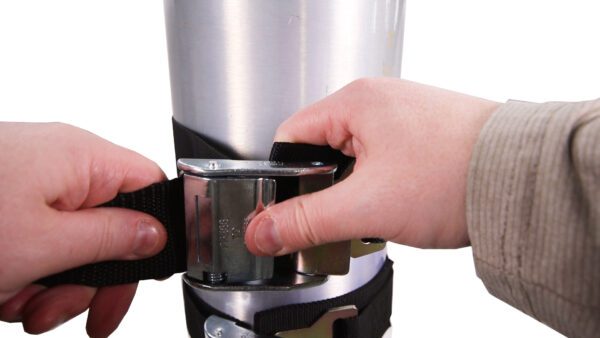

4 Hook Straps (with cam buckle) – Part #3030-135-147 – are included.
Straps adjust to cylinder diameters of 6-3/4″ to 9-1/4″
Base Dimensions: 21” L x 9” W x 8” D
Retainer Dimensions: 14-3/8″ L x 9″ W x 8” D
Straps (4) : 2”x 40”
J Hooks (4): 3 1/8” L
Cam buckles (4): 3” L
Complies with SAE-J3043, AMD Standard 003 for oxygen tank retention systems, and GSA KKK specification when used as recommended. Complies with OSHA and insurance safety regulations.
