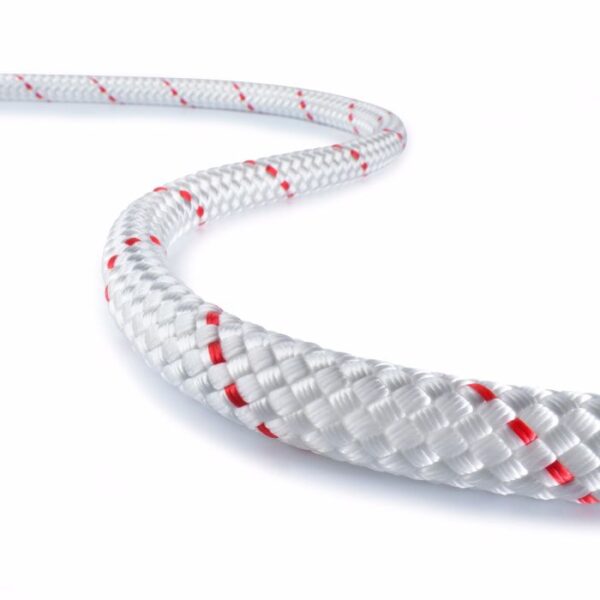

Teufelberger Patron

$412.00 – $3,512.00

Static rope

Our Patron ropes are static ropes certified to EN1891A. Their strong points are low weight and high breaking strength.

It is low weight and high breaking strength that give the static ropes of our Patron series their exceptional appeal.

Our Patron range ropes are certified to EN 1891B (9 mm rope) and EN 1891A (10 mm, 10.5 mm, and 11 mm ropes), respectively. Due to the high strength and low tearing risk of Patron ropes, they are the right choice for different applications. The twisted 32-strand braided cover provides high dirt resistance, better grip, and high abrasion protection.

Part Number:
SKU: N/A Categories: , , , , , ,

Description

EN 1891A (10, 10.5, 11, 12 mm)

EN 1891B (9mm)

Core: polyamide

Cover: polyamide

Braid: 32

Diameter: 9mm (23/64 in), 10mm (3/8in), 10.50mm (13/32in), 11mm (7/16in), 12mm (1/2in)

Weight: 51 g/m (3.43lbs), 66 g/m (4.44 lbs), 72 g/m (4.84 lbs), 75 g/m (5.04 lbs), 92.30 g/m (6.19 lbs)

Shrinkage: 3%, 3%, 4%, 4%, 4%

Elongation: 3%, 3%, 3%, 3%, 3%

Minimum Breaking Force:

Free Length: 2000 daN (4495 Ibf), 2900 daN (6515 Ibf), 3200 daN (7190 Ibf), 3300 daN (7415 Ibf), 3800 daN (8540 Ibf)

Knotted: 1300 daN (2920 Ibf), 1600 daN (3595 Ibf), 1800 daN (4045 Ibf), 1800 daN (4045 Ibf), 2400 daN (5395 Ibf)

Sewn: – (-), 2500 daN (5620 Ibf), 2600 daN (5845 Ibf), 2700 daN (6070 Ibf), 3400 daN (7640 Ibf)

Cover: 41%, 38%, 37%, 36%, 36%

Additional information

Color

Red/Black, White/Red, White/Blue, White/Blue/Red, Black, Blue, Olive, Red
Length

1148ft, 1640ft, 2296ft, 4592ft, 656ft, 820ft
