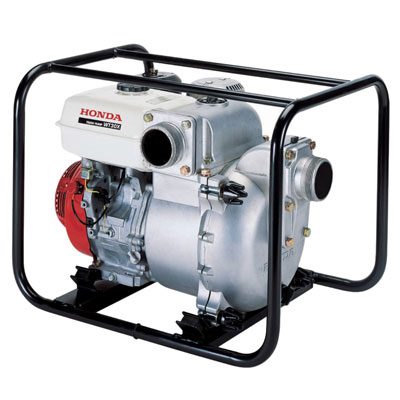

Tele-Lite Honda WT30 – 3in Pump, Powered by 8HP Honda Industrial Engine

$1,799.00

3 inch pump Powered by the legendary 8 Hp Honda Industrial engine this new Trash Pump offers a unique Conical impeller for exceptional priming and pumping performance. Features include, easy maintenance wear plate, wear resistant seal, easy impeller removal and standard tool for pump maintenance, light weight aluminum pump housing, isolation engine mounting, standard suction hose strainer, full frame and oil alert.

  • Honda Overhead Valve Engine
  • Oil Alert®
  • Full Frame
  • 3″ Suction and Discharge Ports
  • 319 Gallons/Minute Discharge Capacity
  • Pumps Solids up to 1 1/8″ in Diameter
  • 2 Year Residential Warranty
  • 2 Year Commercial Engine & 3 Month Pump Component Warranty
Part Number: WT-30XK4A
SKU: WT-30XK4A Categories: , , , , , , , , , Brand:

Description

Model Number WT30XK4A
Engine GX270
Displacement 270 cc
Bore and Stroke 3.0″ x 2.3″
Compression Ratio 8.5:1
Oil Alert Std
Pump Type Trash Centrifugal, Self-Priming
Volute Rigid-Mounted Cast Iron w/ Stainless Wear Plate
Impeller Conical Cast Iron
Mechanical Seal (Pump Case / Impeller) Silicone Carbide / Silicone Carbide
Priming Time =90 sec. at 16.4 ft.
Drive System Direct
Discharge Capacity 317 gals./min.
Suction Port Diameter 3″ NPT
Discharge Port Diameter 3″ NPT
Total Head Lift 82 ft.
Suction Head Lift 26 ft.
Maximum Pressure 36 psi
Solids Handling 1 1/16″
Dimensions 26.0″ x 19.5″ x 20.3″
Dry Weight 134 lbs
Fuel Capacity 1.4 gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YG1-003
Residential Warranty 3 years
Commerical Warranty 3 years
