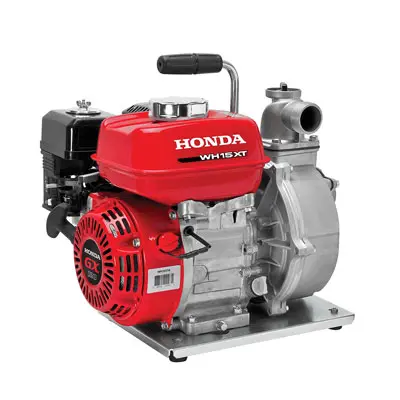

Tele-Lite Honda WH15 – 1.5in. Pump, High Pressure Pump, Powered by the 4HP GX Series Industrial Engine

$829.00

1.5 inch pump This high pressure pump is powered by the 4 HP GX series Industrial Engine. This pump offers exceptional performance when higher pressure is required in applications such as using sprinklers or a nozzle.

  • Honda Overhead Valve Engine
  • High Output, High Pressure Pump
  • 71psi max
  • 1 1/2″ Ports
  • Maximum Capacity of 106 Gallons per Minute
  • 2 Year Residential Warranty
  • 2 Year Commercial Engine & 3 Month Pump Component Warranty

Available on backorder

Part Number: WH-15XT2A
SKU: WH-15XT2A Categories: , , , , , , , , , Brand:

Description

Model Number WH15XTA
Engine GX120
Displacement 118 cc
Bore and Stroke 2.4″ x 1.7″
Compression Ratio 8.5:1
Oil Alert N/A
Pump Type High Pressure, Centrifugal, Self-Priming
Volute Rigid-Mounted Cast Iron
Impeller Cast Iron
Mechanical Seal (Pump Case / Impeller) Carbon / Ceramic
Priming Time 80 sec. at 16.4 ft.
Drive System Direct
Discharge Capacity 98 gals./min.
Suction Port Diameter 1.5″ NPT
Discharge Port Diameter 1.5″ NPT
Total Head Lift 131 ft.
Suction Head Lift 26 ft.
Maximum Pressure 57 psi
Solids Handling N/A
Dimensions 16.3″ x 14.2″ x 16.3″
Dry Weight 49 lbs
Fuel Capacity 0.53 gal
Run Time @ Max Discharge 1.5 hr
Strainer Part # 78325-YB7-020
Residential Warranty 3 years
Commerical Warranty 3 year
