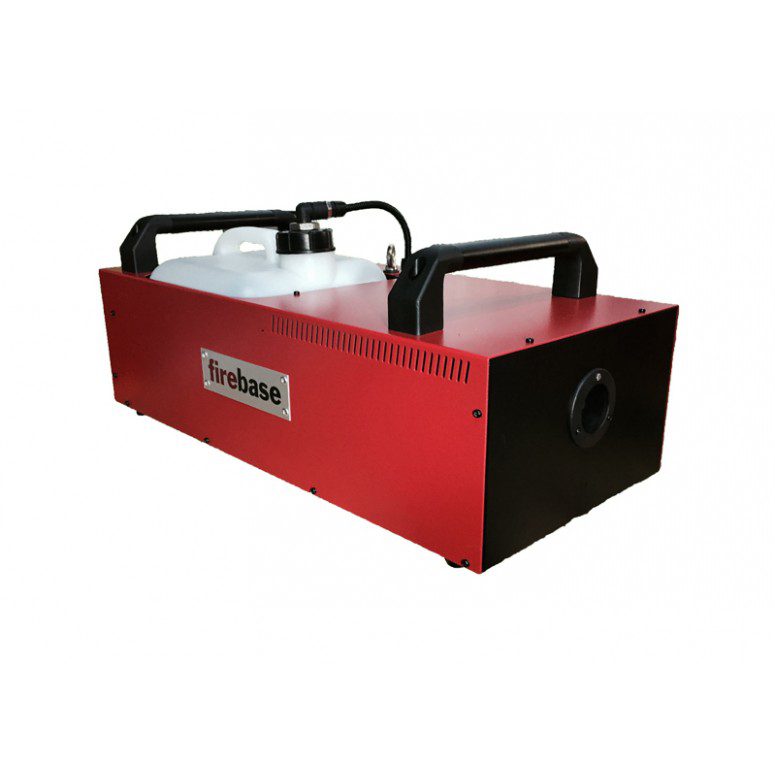

M1800 High Capacity 1800 Watt, 50,000 CFM Smoke Generator

$1,600.00

The heavy-duty, rugged durability machines have a high-capacity 2.5 Gallon tank and a strong case design, all in a portable unit thats quick and easy to set up

Part Number: SG-M1800

Description

  • Power : AC100V/AC120V/AC230V/AC240V,50Hz-60Hz
  • Heater : 1,800 W
  • Output : 50,000 cu.ft / min
  • Fluid Consumption Rate : 4 min / liter (100% Output)
  • Remote Included : M-21 Control Module

The M-SERIES of smoke generators are ready for any challenge. The heavy-duty, rugged durability machines have a high-capacity 2.5 Gallon tank and a strong case design, all in a portable unit thats quick and easy to set up. The efficient high power 1800 Watt heater can produce a colossal 50,000 cubic feet of fog per minute, enough to handle very large scenarios. The smoke will be extremely consistent due to ECO thermal control system and Unicore heater technology. This system utilizes a highly sensitive electronic thermostat, which can detect even the slightest drop in temperature which will then re-start automatically to maintain perfect smoke output. An electronic Thermal Cut-Off (TCO) feature automatically shuts down the pump when the fog fluid level runs low which will protect the machine from potential damage caused by running on empty. The M-Series features superior quality components, including Italian-made piston pumps for reliability and durability and cast aluminum heater blocks, which hold heat better than the standard aluminum blocks found in most fog machines.

Physical
Length: 26.3″
Width: 12.7″
Height: 6.7″
Net Weight: 51.1 Lbs.Performance
Fluid consumption (100%): 20 Min/Gal
Maximum operating time, maximum output: 50 Min.
Ready time: 8 Min.

Control and Programming
Control options: DMX, LCD Control Panel
Fog Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing

Construction
Housing: Metal
Color: Red and Black
Fluid pump: Dual oscillating piston, high pressure
Fluid reservoir: 2.5 Gal. drop-in reservoir

Installation
Mounting: Standing or hanging
Orientation: Up to +/-40° from horizontal

Connections
AC Power: Seetronic Powerkon IP65
DMX, link mode in/out: 3 and 5-pin locking XLRElectrical
US Model:AC power: 120 V, 60 Hz
Main fuse: 15A, 250 V
Typical power and current: 1800 W

*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Included Items
Fluid reservoir, 2.5 Gal. Tank

Accessories

Fog Scent Additives

Approved fluids*:

Water-Based Training Smoke Fluids

*Various sizes available – contact us or see ‘Fluids’ product pages for details
