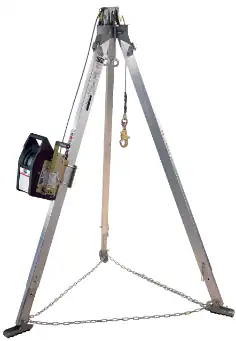

3M™ DBI-SALA® Confined Space Aluminum Tripod with Winch, 9 ft Tripod, 60 ft Stainless Steel Cable

$4,299.00

The 3M™ DBI-SALA® Aluminum Tripods can be set up by one worker and are portable for transporting from one location to another. They can accommodate a variety of winches and fall arrest devices and feature locking legs, detent pin styel adjustment, quick-mount mechanical device bracket, safety chain and padded feet to minimize movement.

The 3M™ DBI-SALA® mechanical systems can serve as one of the most critical parts of the rescue plan, providing the means to retrieve an incapacitated worker to safety. Lifeline type and length are just a few of the options.

Part Number: 8301092
SKU: 8301092 Categories: , , , , , , ,

Description

Highlights
  • Systems available to adapt to multiple configurations
  • Telescoping adjustable locking legs
  • Built-in pulley system
  • Rubber padded tripod feet and leg support chain
  • Integrated 5,000 lb. (22 kN) eyebolt anchor points
  • Features manually operated winch
  • Winch options available with different gear ratios to provide mechanical advantage
  • Swiveling snap hook with built-in impact indicator
  • Equipped with pre-programmed RFID
  • Eye Bolt Material Handling Weight Capacity: 1000 lb (453 kg)
  • Mounting Bracket Material Handling Weight Capacity: 620 lb (281 kg)

Details



Brands

DBI-SALA®

Carabiner/Hook Material

Zinc Plated Steel

Connected Safety ID Equipped

Yes

Install Type

Portable

Lifeline Length (Imperial)

60 ft

Lifeline Length (Metric)

18.3 m

Lifeline Material

Stainless Steel Cable

Product Color

Silver

Product Type

Confined Space System

Recommended Industry

Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities

Specifications Met

OSHA 1910.140, OSHA 1926.502

Dimensions and Classifications



Overall Height (Imperial)

9 ft

Overall Height (Metric)

2.7 m
