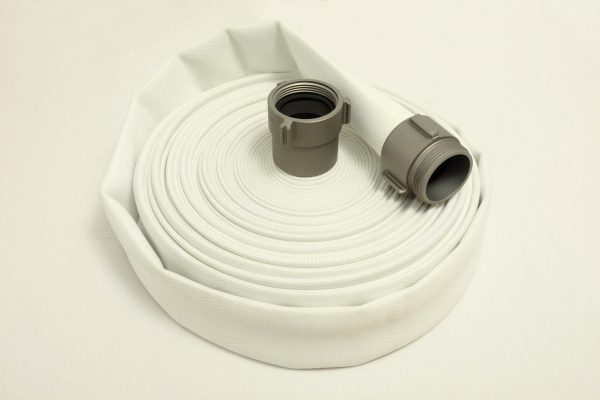

2″ Single Jacket Mill Discharge Hose (250 LB Test)
$86.63 – $320.00
“Not suitable for fire protection or other high pressure continuous use applications.”
Harsh industrial environments such as steel mills and other commercial type applications calls for a durable single jacket mill discharge hose, primarily used in water transfer and wash down applications. Rawhide Fire Hose offers a single-jacket hose, commonly referred to as mill fire hose or contractor hose that utilizes a rubber (EPDM) inner tube as the conduit and an outer polyester woven jacket to provide strength to yield the reliability required in demanding industrial uses.
The 3″ single jacket mill discharge hose, offered by Rawhide Fire Hose, comes in standard lengths of 50’ and 100’, with custom lengths and custom coupling configurations available upon request. Contact TEAM RAWHIDE to outfit your specific project needs. Single jacket contractor / steel mill discharge hoses are available in white. Couplings may be powder coated in a variety of colors if your situation requires. Should your project or application requires a color impregnated fire hose, Rawhide Fire Hose offers single jacket fire hose and rubber covered fire hose in a variety of colors to fit your specific needs.
Description
Mill hose features:
An outer jacket treated to resist abrasion, mold and mildew

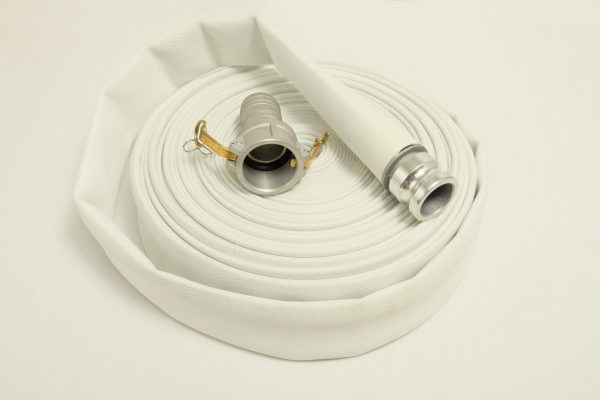

Available couplings for single jacket mill discharge hose includes; Shank-type couplings that are externally banded and can be threaded or cam lock or expansion ring-type couplings, that are also threaded or of a cam lock style. Standard thread patterns offered are NST/NH, IPT/NPSH and NPT. Other thread patterns may be available upon request.
Flexibility for ease of deployment, handling, and reeling.
Pressure Ratings:
125# Service Test Pressure
250# Proof Test Pressure
375# Burst Pressure
Construction:
100% polyester woven jacket. Lining is single ply extruded synthetic rubber, compounded to resist ozone. Hose is impervious to mildew and never needs drying.
Temperature Range:
-40 degrees F to 180 degrees F
-40 degrees C to 82 degrees C
Special Characteristics:
Only available in white. Lightweight and easy to handle.
Contractor open ended discharge hose. Designed for prolonged storage and extended service for wash down applications and other light duty service. “Not suitable for fire protection or other high pressure continuous use applications.”
Pressure Ratings:
125# Service Test Pressure
250# Proof Test Pressure
375# Burst Pressure
Construction:
100% polyester woven jacket domestically produced. Lining is single ply extruded synthetic rubber, compounded to resist ozone. Hose is impervious to mildew and never needs drying.
Temperature Range:
-40 degrees F to 180 degrees F
-40 degrees C to 82 degrees C
| Weight | 28 lbs |
|---|---|
| Hose Color | White |
| Hose Diameter | 2″ |
| Hose Length Ft. | 100, 50 |
| Hose Couplings | Aluminum – IPT/NPSH (Rocker Lug- Expansion Ring), Aluminum – NST/NH (Rocker Lug – Expansion Ring), Aluminum – C & E ( Shank Camlock ), Aluminum – IPT/NPSH (Shank w/ Brass Swivel), UNCOUPLED |
Additional information
| Length | 25 ft. (7.5meters), 50 ft. (15 meters), 100 ft (30 meters) |
|---|---|
| Couplings: | Aluminum – IPT/NPSH (Rocker Lug-Expansion Ring), Aluminum – NST/NH (Rocker Lug-Expansion Ring), Aluminum – C&E (Shank Camlock), Aluminum – IPT/NPSH (Shank w/ Brass Swivel, Uncoupled |
| Brand | |
| Availability |
