ProSeries	Major Axis	Minor Axis	Major Axis, Gate Open
300221	47 kn	17 kn	15 kn
300233	40 kn	11 kn	15 kn
300262	40 kn	11 kn	15 kn
300241	46 kn	12 kn	12 kn
300253	41 kn	15 kn	12 kn
300273	41 kn	16 kn	12 kn

OPTION	ITEM	PRODUCT WEIGHT	GATE OPENING	INTERIOR LENGTH	GATE / COLOR	NFPA RATING	3 SIGMA MBS	PRICE
Screw-Lock, Brite	300221	5 OZ (142 G)	1.1 IN (28 MM)	4.05 IN (103 MM)	SCREW-LOCK / BRITE	GENERAL USE	47 KN (10,566 LBF)	$45
Auto-Lock, Red	300233	5.3 OZ (150 G)	1.1 IN (28 MM)	4.05 IN (103 MM)	AUTO-LOCK / RED	GENERAL USE	40 KN (8,992 LBF)	$52
Manual-Lock, Slate	300262	5.3 OZ (150 G)	1.1 IN (28 MM)	4.05 IN (103 MM)	MANUAL-LOCK / SLATE	GENERAL USE	40 KN (8,992 LBF)	$57
XL Screw-Lock, Brite	300241	9.4 OZ (266 G)	2.1 IN (53 MM)	6.62 IN (168 MM)	XL SCREW-LOCK / BRITE	GENERAL USE	46 KN (10,341 LBF)	$66
XL Auto-Lock, Red	300253	10.2 OZ (289 G)	2.1 IN (53 MM)	6.62 IN (168 MM)	XL AUTO-LOCK / RED	GENERAL USE	41 KN (9,217 LBF)	$69
XL ANSI-Gate, Red	300273	11.36 OZ (322 G)	2.1 IN (53 MM)	6.62 IN (168 MM)	ANSI CERTIFIED (Z359.12) GATE / RED	GENERAL USE	41 KN (9,217 LBF)	$74
Keeper Pin Replacement Set (XL ProSeries)	300005	3X PINS, 3X SCREWS, 1X HEX WRENCH	NA	NA	NA	NA	NA	$14

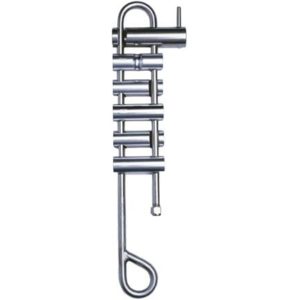

SMC Rack Kit, Straight Eye
